SL-1U-MCX-C224SLM-LF-1 This item is no longer available.

A newer version of this item is available: SL-1U-MCX-C236SSH-LF

1U Rack Mount Server - Rackmount featuring Intel C224 Express Chipset, 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell'), 3x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 32GB RAM, 6x USB 2.0, 3x USB 3.0, 1x USB 3.1, 1x Expansion Slots, 400W 1+1 Redundant Power Supply, 80+ Gold Certified

Type:

  • 1U Rack Mount Server
  • Depth: 19.80", Max Card Depth: 6""

Motherboard:

  • Featuring Intel C224 Express Chipset and 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell') processor
  • Full Height Slots:
    1 - PCIe x16
  • LAN: 3x GB (10/100/1000)
  • RAID: 0,1,5,10 via LSI MegaRAID
  • Video: VGA
  • Audio: No Onboard Audio
  • Ports:
    6x USB 2.0 Ports ( 2 Front, 4 Rear )
    3x USB 3.0 Ports ( 2 Rear, 1 via internal headers )
    1x USB 3.1 Port ( 1 Rear )
    2x COM Ports (1 Rear, 1 on Headers)
    See specifications for more ports
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

  • Processor: G1820 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (53W) (ERM)
  • Memory: 4 GB DDR3 1600MHz ECC Unbuffered RAM
  • Hard Drive: 1.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series
  • Power Supply: 400W 1+1 Redundant Power Supply, 80+ Gold Certified
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

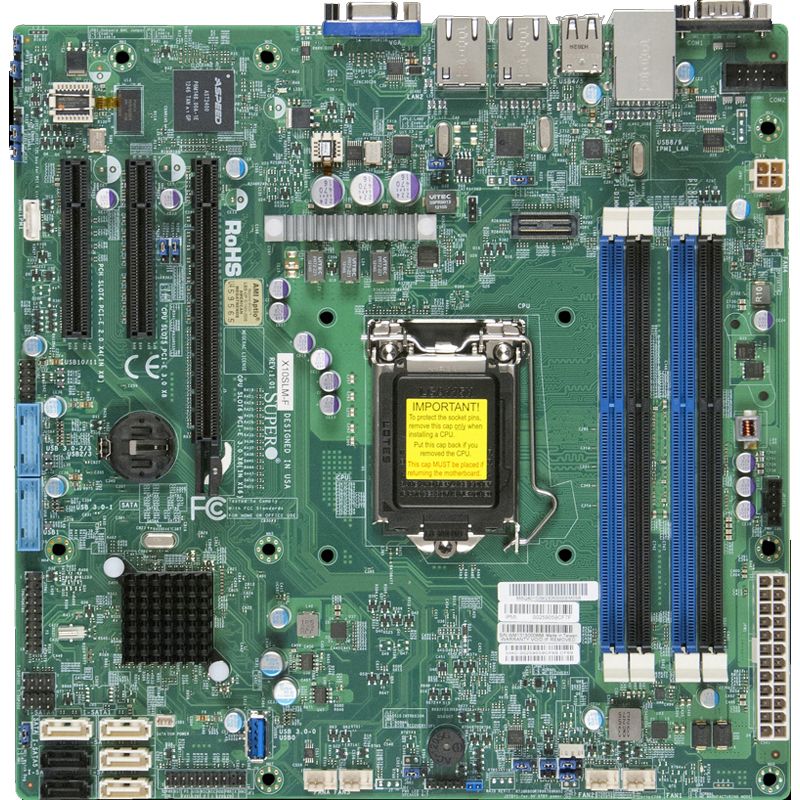

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MicroATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell')
  • Chipset
  • Chipset: Intel C224 Express Chipset
  • Memory
  • Memory Type: DDR3 1600MHz ECC
  • Memory Type: ECC Unbuffered
  • DIMMS: 4
  • Maximum Memory: 32GB
  • On Board Audio
  • Audio Type: No Onboard Audio
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA
  • VGA Port Out: 1
  • LAN
  • LAN Ports: 3
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i217LM
  • Second LAN Chipset: Intel® i210AT
  • Third LAN Chipset: Realtek RTL8211E (Dedicated IPMI)
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 2
  • SATA III Ports (6GB): 4
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • mini PCIe
  • Rear IO
  • USB 2.0 Ports (on IO): 4
  • USB 3.0 Ports (on IO): 2
  • USB 3.2 Gen 1 Type A Ports (on IO): 1
  • Serial (Rear IO): 1
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • USB 3.0 Ports (on Headers): 1
  • Serial (via Headers): 1
  • FAN Connectors: 5
  • DOM
  • Chassis Intrusion
  • Management Features
  • IPMI
  • Watch Dog
  • TPM Support: Via 1.2 Header
  • Environmental
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
  • High Humidity: 90%
  • Low Humidity: 8%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • LINUX Ubuntu Desktop
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • Windows Server 2012
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Warranty of Component
  • Motherboard Warranty: 1 Year
  • Other Features
  • Other Features:

    PCI-Express

    • 1x PCI-E 3.0 x8 (in x16) Full-height slot

Chassis Specifications:

  • General
  • Form Factor: 1U Rackmount
  • Color: Black & Silver
  • Material: Metal/Steel
  • Redundant Power Supply Capable
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 6""
  • 3.5" Hot Swap Bays: 4
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 5
  • Included Fans: 4
  • Physical
  • Depth: 503mm
  • Depth (Inches): 19.8
  • Width: 437mm
  • Height: 43mm
  • Shipping Weight: 30lbs
  • Power
  • Built-in Chassis Power Supply: 400W 1+1 Redundant Power Supply, 80+ Gold Certified
