SL-1U-MCX-C612-LA

1U Rack Mount Server - Rackmount featuring Long Production Cycle Motherboard (Through Q1 2023) with Intel C612 Chipset, Xeon E5-2600v3/v4 (LGA2011-3, Haswell/Broadwell), 2x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 512GB RAM, 4x USB 2.0, 4x USB 3.0, 1x Expansion Slots, 440W/480W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC 80+ Platinum

Dual Xeon Processors.

Type:

  • 1U Rack Mount Server
  • Depth: 19.80", Max Card Depth: 8 Inches"

Motherboard:

  • Featuring Intel C612 Chipset and Xeon E5-2600v3/v4 (LGA2011-3, Haswell/Broadwell) processor
  • Long Production Cycle Motherboard (Through Q1 2023)
  • Full Height Slots:
    1 - PCIe x8
  • LAN: 2x GB (10/100/1000)
  • RAID: 0,1,5,10
  • Video: VGA
  • Audio: No Onboard Audio
  • Ports:
    4x USB 2.0 Ports ( 2 Rear, 2 via internal headers )
    4x USB 3.0 Ports ( 2 Rear, 2 via internal headers )
    2x COM Ports (1 Rear, 1 on Headers)
    See specifications for more ports
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

  • Processor: 2 x E5-2603 v4 - 1.7GHz Intel Xeon Six Cores CPU - 15MB Cache (no graphics on CPU) (85W)
  • Memory: 2 x 8GB DDR4 2400MHz ECC Registered RAM
  • Hard Drive: 1.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series
  • Power Supply: 440W/480W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC 80+ Platinum
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

* Required Fields

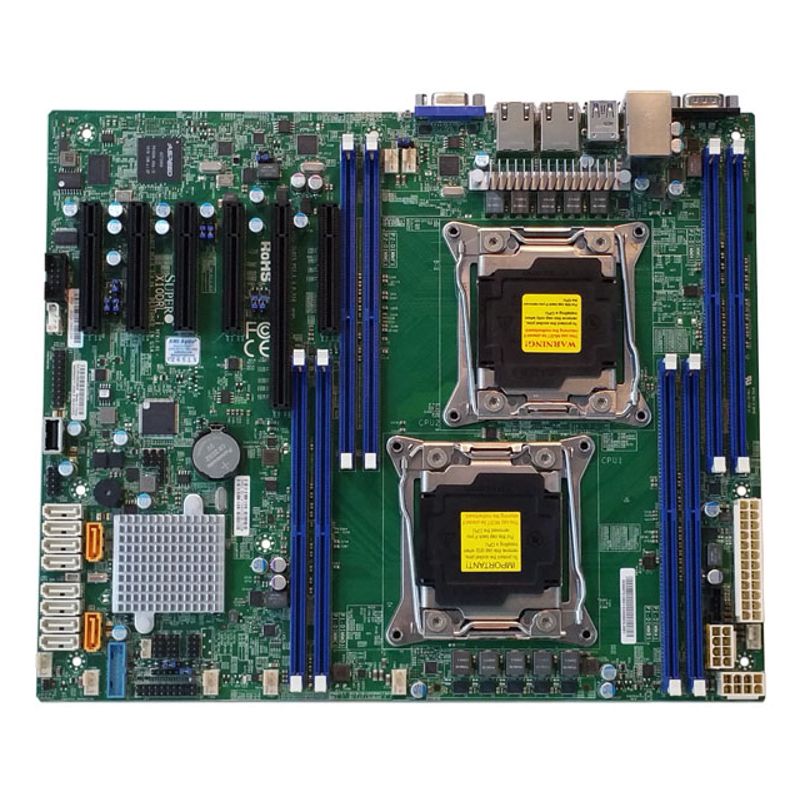

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q1 2023
  • Supported CPU
  • Number of Processors: 2
  • Processor Type: Xeon E5-2600v3/v4 (LGA2011-3, Haswell/Broadwell)
  • Chipset
  • Chipset: Intel C612 Chipset
  • Memory
  • Memory Type: DDR4 2133MHz ECCR
  • Memory Type: ECC Registered
  • DIMMS: 8
  • Maximum Memory: 512GB
  • On Board Audio
  • Audio Type: No Onboard Audio
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA
  • VGA Port Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i210AT
  • Second LAN Chipset: Intel® i210AT
  • Third LAN Chipset: Dedicated IPMI
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 10
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • mini PCIe

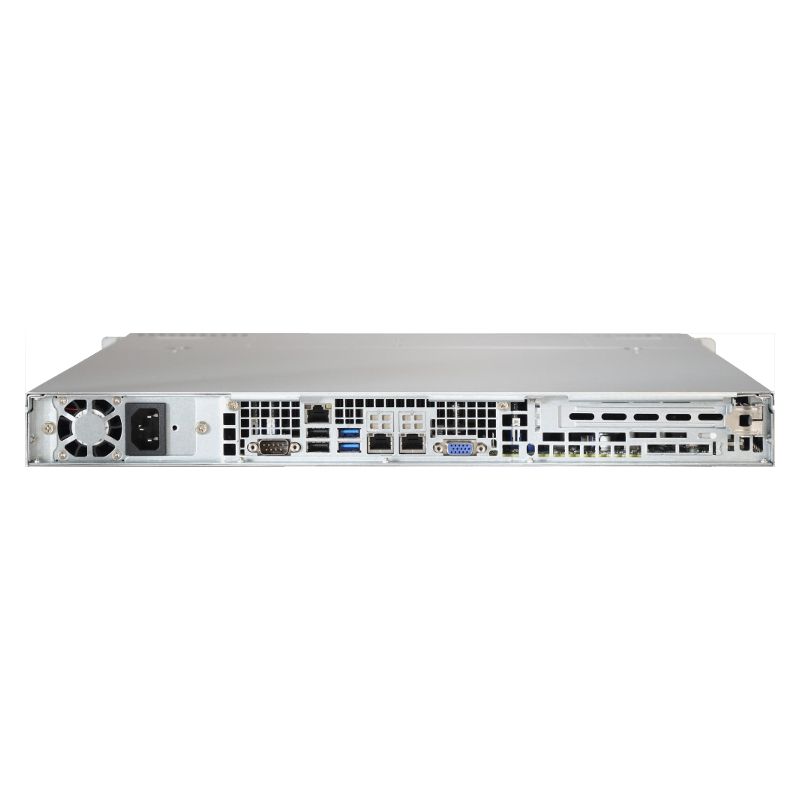

  • Rear IO
  • USB 2.0 Ports (on IO): 2
  • USB 3.0 Ports (on IO): 2
  • Serial (Rear IO): 1
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • USB 3.0 Ports (on Headers): 2
  • USB 2.0 Ports (Type A): 1
  • Serial (via Headers): 1
  • FAN Connectors: 8
  • IDE Connectors: 1
  • DOM
  • Management Features
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
  • High Humidity: 90%
  • Low Humidity: 8%
  • Operating System Support
  • Windows 10 Pro WS (64-Bit)
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • Windows Server 2012
  • Windows Server 2016 STD
  • RED HAT Enterprise LINUX SERVER STANDARD
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Warranty of Component
  • Motherboard Warranty: 1 Year
  • Other Features
  • Other Features:

    PCI-Express

    • 1x PCI-E 3.0 x8 (FHHL) slot (1x PCI-E x8 Riser Included)

Chassis Specifications:

  • General

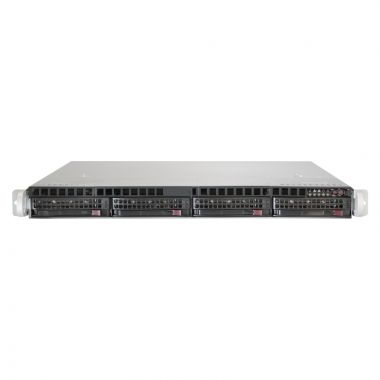

  • Form Factor: 1U Rackmount
  • Color: Black & Silver
  • Material: Steel & Plastic
  • Material Thickness: 1mm
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 8 Inches"
  • 3.5" Hot Swap Bays: 4
  • Cooling System
  • Maximum Fan Count: 5
  • Included Fans: 4
  • Physical
  • Depth: 19.80"
  • Depth (Inches): 19.8
  • Width: 17.20"
  • Height: 1.70"
  • Shipping Box - Depth: 29.70"
  • Shipping Box - Width: 23.40"
  • Shipping Box - Height: 8.50"
  • Shipping Weight: 36lbs
  • Power
  • Built-in Chassis Power Supply: 440W/480W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC 80+ Platinum
