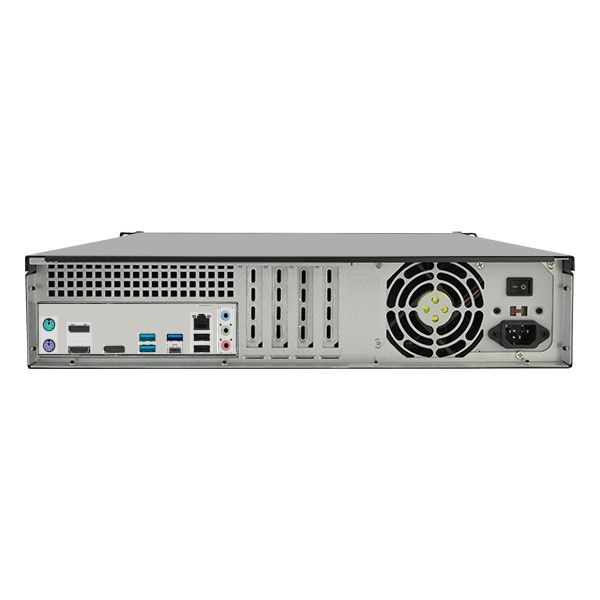

SL-2U-AQ870M-GD

2U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q1 2028) with Intel Q870 Chipset, Intel® Core™ Ultra Processors (Series 2), LGA1851, 1x 1GbE (10/100/1000) LAN, 2x Serial, Up to 256GB RAM, 6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers ), 3x USB 3.2 Gen 1 Ports ( 1 Rear, 2 Internal Headers ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 2x USB 3.2 Gen 2 Type-C Ports ( 1 Rear, 1 Internal Headers ), 3x Expansion Slots.



Type:

  • 2U Rack Mount Industrial PC
  • Depth: 15.35", Max Card Depth: 9.00"

Motherboard:

  • Featuring Intel Q870 Chipset and Intel® Core™ Ultra Processors (Series 2), LGA1851 processor
  • Long Production Cycle Motherboard (Through Q1 2028)
  • Low Profile Slots:
    2 - PCIe x16
    1 - PCIe x1
  • LAN: 1x Ports (1GbE (10/100/1000))
  • RAID: 0,1,5,10 and NVMe 0,1
  • Video: 2x DisplayPort, 1x HDMI
  • Audio: 7.1 HD Audio
  • Ports:
    6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers )
    3x USB 3.2 Gen 1 Ports ( 1 Rear, 2 Internal Headers )
    2x USB 3.2 Gen 2 Ports ( 2 Rear )
    2x USB 3.2 Gen 2 Type-C Ports ( 1 Rear, 1 Internal Headers )
    2x COM Ports (RS232 Internal Headers)
    1x Parallel Port (Headers)
    See specifications for more ports
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

  • Processor: Intel® Core™ Ultra 5 Processor 225 Processor - 10 Cores (6P + 4E), 20MB Intel® Smart Cache, 121W (PL2)
  • Memory: 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM
  • Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
  • Power Supply: 300W SFX-form factor power supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty
Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MicroATX
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q1 2028
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Intel® Core™ Ultra Processors (Series 2), LGA1851
  • Chipset
  • Chipset: Intel Q870 Chipset
  • Memory
  • Memory Type: DDR5 4800MHz
  • Memory Type: Non-ECC
  • DIMMS: 4
  • Maximum Memory: 256GB
  • On Board Audio
  • Audio Type: 7.1 HD Audio
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: 2x DisplayPort, 1x HDMI
  • Display Port Out: 2
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: 1GbE (10/100/1000)
  • LAN Chipset: Intel® i219-LM
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 4
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 2
  • PCI Express x1 Slots On Motherboard: 1
  • M.2 Slot Specs
  • Total M.2 NVMe SSD Slots: 2
  • M.2 Slot #1 Specs
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.
  • M.2 Slot #2 Specs
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.
  • Rear IO
  • PS/2 Mouse on IO
  • PS/2 Keyboard on IO
  • USB 2.0 Ports (on IO): 2
  • USB 3.2 Gen 1 Type A Ports (on IO): 1
  • USB 3.2 Gen 2 Type A Ports (on IO): 2
  • USB 3.2 Gen 2 Type C Ports (on I/O): 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 3.2 Gen 1 Ports (on Headers): 2
  • USB 3.2 Gen 2 Type-C (on Headers): 1
  • Serial (via Headers): 2
  • Parallel Ports: 1
  • FAN Connectors: 3
  • Audio on Headers
  • Chassis Intrusion
  • Environmental
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
  • High Humidity: 95%
  • Low Humidity: 5%
  • Operating System Support
  • SL-Windows 11PRO to 10PRO 64bit
  • Windows 11 Home (64 Bit)
  • Windows 11 Pro (64 Bit)
  • Windows 11 Pro for WS (64 Bit)
  • Windows 11 IoT 2024 LTSC Value
  • Windows 11 IoT 2024 LTSC High End
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • Compliance of Component
  • RoHS
  • FCC
  • Other Features
  • Features:

    Expansion Slots
    Intel® Core™ Ultra Processors(series 2)*
    1 x PCIe 5.0 x16 slot
    Intel® Q870 Chipset**
    1 x PCIe 4.0 x16 slot (supports x4 mode)
    1 x PCIe 4.0 x1 slot

    Storage

    Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
    Intel® Core™ Ultra Processors(series 2) *
    M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
    Intel® Q870 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
    4 x SATA 6Gb/s ports
    * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 2U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Micro ATX
  • Slide Rails: Optional
  • Expansion
  • Low Profile Slots: 4
  • Max Card Depth: 9.00"
  • External 5.25" Bays: 1
  • Internal 3.5" Bays: 3
  • Front Ports
  • USB 2.0 Ports (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Included Fans: 1
  • Physical
  • Depth: 15.35"
  • Depth (Inches): 15.35
  • Width: 19"
  • Height: 3.50"
  • Shipping Box - Depth: 22"
  • Shipping Box - Width: 21"
  • Shipping Box - Height: 7"
  • Shipping Weight: 25lbs
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Remote Server Management:
