SL-2U-AQ870M-SG

Name: SL-2U-AQ870M-SG
SKU: SL-2U-AQ870M-SG

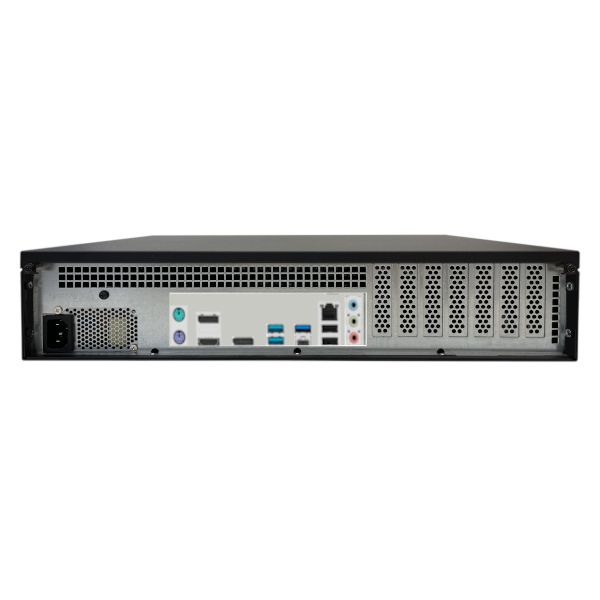

2U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q1 2028) with Intel Q870 Chipset, Intel® Core™ Ultra Processors (Series 2), LGA1851, 1x 1GbE (10/100/1000) LAN, 2x Serial, Up to 256GB RAM, 6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers ), 3x USB 3.2 Gen 1 Ports ( 2 Front, 1 Rear ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 2x USB 3.2 Gen 2 Type-C Ports ( 1 Rear, 1 Internal Headers ), 3x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

2U Rack Mount Industrial PC
Depth: 13.13"

Motherboard:

Featuring Intel Q870 Chipset and Intel® Core™ Ultra Processors (Series 2), LGA1851 processor
Long Production Cycle Motherboard (Through Q1 2028)
Low Profile Slots:
2 - PCIe x16
1 - PCIe x1
LAN: 1x Ports (1GbE (10/100/1000))
RAID: 0,1,5,10 and NVMe 0,1
Video: 2x DisplayPort, 1x HDMI
Audio: 7.1 HD Audio
Ports:
6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers )
3x USB 3.2 Gen 1 Ports ( 2 Front, 1 Rear )
2x USB 3.2 Gen 2 Ports ( 2 Rear )
2x USB 3.2 Gen 2 Type-C Ports ( 1 Rear, 1 Internal Headers )
2x COM Ports (RS232 Internal Headers)
1x Parallel Port (Headers)
See specifications for more ports
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

Processor: Intel® Core™ Ultra 5 Processor 225 Processor - 10 Cores (6P + 4E), 20MB Intel® Smart Cache, 121W (PL2)
Memory: 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

Intel® Core™ Ultra 5 Processor 225 Processor - 10 Cores (6P + 4E), 20MB Intel® Smart Cache, 121W (PL2) show $405.00

Intel® Core™ Ultra 5 Processor 245K Processor - 14 Cores (6P + 8E), 24MB Intel® Smart Cache, 159W (PL2) show $585.00

Intel® Core™ Ultra 7 Processor 265K Processor - 20 Cores (8P + 12E), 30MB Intel® Smart Cache, 250W (PL2) show $557.00

Intel® Core™ Ultra 9 Processor 285 Processor - 24 Cores (8P + 16E), 36MB Intel® Smart Cache, 250W (PL2) show $1,004.00

Intel® Core™ Ultra 9 Processor 285K Processor - 24 Cores (8P + 16E), 36MB Intel® Smart Cache, 250W (PL2) show $1,026.00

Memory

x 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $35.00

x 16GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $75.00

x 32GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $147.00

x 16GB DDR5 5600MHz RAM show $80.00

x 32GB DDR5 5600MHz RAM show $150.00

x 64GB DDR5 5600MHz RAM show $292.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

Additional Hard Drives

250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980 show $83.00 each

500GB NVMe SSD M.2 3.1GB/2.6GB - Samsung 980 show $106.00 each

1TB PCIe 5.0 NVMe SSD M.2 7,150/6,300MB/s - Samsung 990 EVO Plus show $126.00 each

2TB PCIe 5.0 NVMe SSD M.2 7,250/6,300MB/s - Samsung 990 EVO Plus show $188.00 each

4TB PCIe 5.0 NVMe SSD M.2 7,250/6,300MB/s - Samsung 990 EVO Plus show $345.00 each

1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $161.00 each

2TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $243.00 each

4TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $402.00 each

4TB SSD M.2 NVMe SSD - 7300MB/6600MB - WD Black show $373.00 each

240GB SATA 3 2.5" SSD - 500/350MB Read/Write or greater. show $48.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $91.00 each

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $158.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $228.00 each

4TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $388.00 each

1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue show $88.00 each

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series show $170.00 each

4.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E8 Series show $218.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS 7E8 Series show $323.00 each

12.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $428.00 each

14.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $440.00 each

16.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $480.00 each

18.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $660.00 each

2.0TB SATA 6.0Gb/s 5400 RPM 64 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $133.00 each

4.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $153.00 each

4.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $143.00 each

6.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $182.00 each

Raid Controller

Configure NVMe RAID 0 (Striping) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE and M.2 Adapter. show $0.00 each

Configure NVMe RAID 1 (Mirroring) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE and M.2 Adapter show $0.00 each

Configure RAID 0 (Striping) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 1 (Mirroring) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 10 (Striping across Mirrors) - REQUIRES 4 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Cable

Add 1 DB9 Serial Port 9-pin Serial to 10-pin Header 16" show $14.00 each

Add 2 USB 2.0 Female Ports via internal USB header cable show $10.00 each

DisplayPort® to HDMI® Video Adapter Converter show $29.00 each

Plug-In Boards

M.2 NVMe Adapter - M.2 NVMe PCI-e M-key To PCI-e 3.0 x4 Card. Requires a PCIe x4 slot. show $19.00 each

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile show $43.00 each

Serial PCIe Card, 9pin 16550 UARTs - 2 Ports, Low Profile show $77.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP Mode - 1 Port, Low Profile show $69.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

4 Ports USB 3.2 Gen 1 PCIe Card Adapter with SATA Power - Supports Low Profile show $70.00 each

Add-In Graphic Card

None show Included

NVIDIA GeForce RTX 5060 8GB 128-Bit GDDR7 PCIe 5.0 - Recommended 450W PSU show $465.00

NVIDIA Quadro T400 4GB 64-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 3 x Mini DisplayPort 1.4 - No Win 7 Support!Part Delay: ETA November 10, 2025 show $240.00

NVIDIA RTX A400 4GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $211.00

NVIDIA RTX A1000 8GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $551.00

NVIDIA Quadro RTX 2000 ADA 16GB GDDR6, PCIe 4.0 x16 - 4x Mini DisplayPort 1.4a - Low Profile and Full Height Compatible show $882.00

NVIDIA Quadro RTX 4000 Ada 20GB GDDR6 with ECC, PCIe 4.0 x16 - Support Low Profile show $1,726.00

Networking

M.2 2230 - Intel Wi-Fi 7 (Gig+) module via internal M.2 slot. Features Bluetooth 5.1 and WPA3 securit show $37.00 each

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile show $36.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $260.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $230.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 100/1000/2500/5000Mbps Single Port Network Adapter - Full Height or Low Profile show $136.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $180.00 each

Operating System

None show Included

Windows 10 Pro 64-Bit - Microsoft Windows 11 Pro Downgrade to Windows 10 Pro 64-Bit. Includes Windows 11 Product Key Only. show $209.00

Microsoft Windows 11 Home, 64-Bit show $149.00

Microsoft Windows 11 IoT Enterprise 2024 LTSC 64-Bit: ATMs, Medical, Industrial - License For i7, XEON show $199.00

Microsoft Windows 11 IoT Enterprise 2024 LTSC 64-Bit: ATMs, Medical, Industrial - License For Socketed Intel Celeron, Pentium, i3 and i5 CPUs show $124.00

Microsoft Windows 11 Professional, 64-Bit show $189.00

Microsoft Windows 11 Pro For Workstation, 64-Bit show $389.00

Ubuntu Desktop Edition Standard (Latest LTS Compatible). Community Support Only. Installation CD Not Included. show $49.00

Monitors

None show Included

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits racks 18.5" - 27.6" DeepPart ETA Varies – Ask Sales show $1,015.00

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" - 33" DeepPart ETA Varies – Ask Sales show $1,545.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and touchpad (HDMI inputPart ETA Varies – Ask Sales show $1,129.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and trackball (HDMI inpuPart ETA Varies – Ask Sales show $1,183.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchpad, and 8-port KVM (Cables not included)Part ETA Varies – Ask Sales show $1,659.00

1U Rackmount 19" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Deep RacksPart ETA Varies – Ask Sales show $1,118.00

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - 33" Deep RacksPart ETA Varies – Ask Sales show $1,649.00

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $118.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $178.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $138.00 each

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $249.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. show $415.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. show $469.00 each

External Power

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P show $125.00 each

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P show $181.00 each

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & S show $626.00 each

Tripp Lite Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $95.00 each

Mounting Option

None show Included

20" Adjustable Slide Rails - Fits 22.3" - 31" deep cabinet. Support chassis up to 23" deep show $57.00

24" Adjustable Slide Rails - Fits 26.3" - 39" deep cabinet. Support chassis up to 27" deep show $63.00

26" Adjustable Slide Rails - Fits 28.4" - 39" deep cabinet. Supported chassis up to 29" deep show $72.00

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MicroATX
Long Production Cycle
Long Life: YES
EOL Date: Q1 2028
Supported CPU
Number of Processors: 1
Processor Type: Intel® Core™ Ultra Processors (Series 2), LGA1851
Chipset
Chipset: Intel Q870 Chipset
Memory
Memory Type: DDR5 4800MHz
Memory Type: Non-ECC
DIMMS: 4
Maximum Memory: 256GB
On Board Audio
Audio Type: 7.1 HD Audio
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: 2x DisplayPort, 1x HDMI
Display Port Out: 2
HDMI Out: 1
LAN
LAN Ports: 1
LAN Type: 1GbE (10/100/1000)
LAN Chipset: Intel® i219-LM
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 4
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 2
PCI Express x1 Slots On Motherboard: 1
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
M.2 Slot #2 Specs
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
Rear IO
PS/2 Mouse on IO
PS/2 Keyboard on IO
USB 2.0 Ports (on IO): 2
USB 3.2 Gen 1 Type A Ports (on IO): 1
USB 3.2 Gen 2 Type A Ports (on IO): 2
USB 3.2 Gen 2 Type C Ports (on I/O): 1
Audio on IO
Headers
USB 2.0 Ports (on Headers): 4
USB 3.2 Gen 1 Ports (on Headers): 2
USB 3.2 Gen 2 Type-C (on Headers): 1
Serial (via Headers): 2
Parallel Ports: 1
FAN Connectors: 3
Audio on Headers
Chassis Intrusion
Environmental
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
High Humidity: 95%
Low Humidity: 5%
Operating System Support
SL-Windows 11PRO to 10PRO 64bit
Windows 11 Home (64 Bit)
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC Value
Windows 11 IoT 2024 LTSC High End
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
RoHS
FCC
Other Features
Features:
Expansion Slots
Intel® Core™ Ultra Processors(series 2)*
1 x PCIe 5.0 x16 slot
Intel® Q870 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(series 2) *
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® Q870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
Motherboard Warranty: 1 Year
