SL-2U-C7H61-BA-3PCI This item is no longer available.

A newer version of this item is available: SL-2U-LLH812-BA-3PCI

2U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q1 2018) with Intel H61 Chipset, 3rd Gen Core i3/i5/i7 (LGA1155, 'Ivy Bridge'), 2x GB (10/100/1000) LAN, HDD or SSD, 1x Serial, Up to 16GB RAM, 10x USB 2.0, 3x Expansion Slots, 400W Power Supply

Type:

  • 2U Rack Mount Industrial PC
  • Depth: 17.70", Max Card Depth: 9 inches", Locking Front Bezel

Motherboard:

  • Featuring Intel H61 Chipset and 3rd Gen Core i3/i5/i7 (LGA1155, 'Ivy Bridge') processor
  • Long Production Cycle Motherboard (Through Q1 2018)
  • Full Height Slots:
    3 - PCI
  • LAN: 2x GB (10/100/1000)
  • Video: VGA + DisplayPort + HDMI
  • Audio: 7.1 Channel HD Audio by Realtek® ALC888S
  • Ports:
    10x USB 2.0 Ports ( 2 Front, 6 Rear, 2 via internal headers )
    1x COM Port (Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Processor: Special Order 5 weeks - G1620 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (55W) (ERM)
  • Memory: 4GB DDR3 1600MHz RAM
  • Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
  • Power Supply: 400W Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

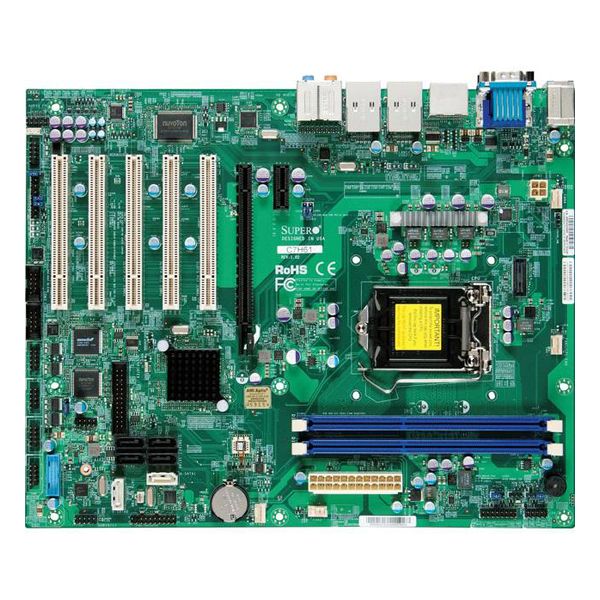

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q1 2018
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 3rd Gen Core i3/i5/i7 (LGA1155, 'Ivy Bridge')
  • Chipset
  • Chipset: Intel H61 Chipset
  • Memory
  • Memory Type: DDR3 1600MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 16GB
  • On Board Audio
  • Audio Type: 7.1 Channel HD Audio by Realtek® ALC888S
  • On Board Video
  • Video Chipset: Intel HD Graphics, HD 2000/3000
  • Video on IO: VGA + DisplayPort + HDMI
  • VGA Port Out: 1
  • Display Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® 82579V
  • Second LAN Chipset: Intel® 82574L
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 4
  • SATA III Ports (6GB): 2
  • mini PCIe

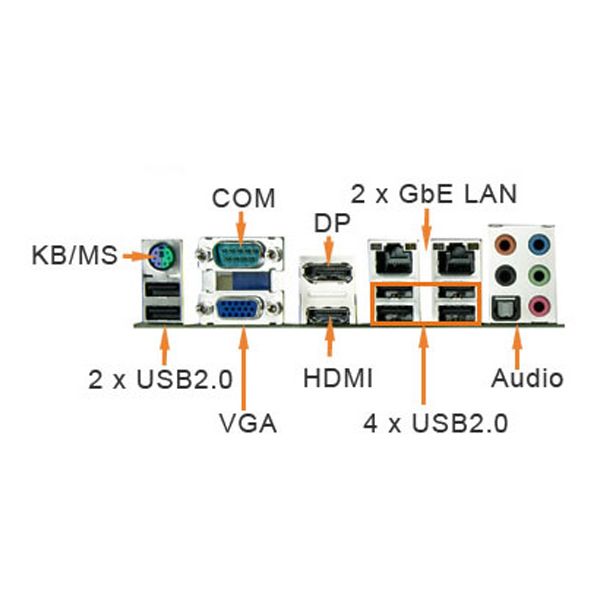

  • Rear IO
  • USB 2.0 Ports (on IO): 6
  • Serial (Rear IO): 1
  • SPDIF Connector: 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • FAN Connectors: 4
  • DOM
  • Chassis Intrusion
  • Management Features
  • Watch Dog
  • Environmental
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows XP Pro (32-bit)
  • SL-Windows 7 Pro to XP Pro 32B
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • CCC
  • Other Features
  • Other Features:
    • 1x PCI-E 3.0 x16
    • 1x PCI-E 2.0 x1
    • 5x 32-bit PCI slots (5V Key)

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

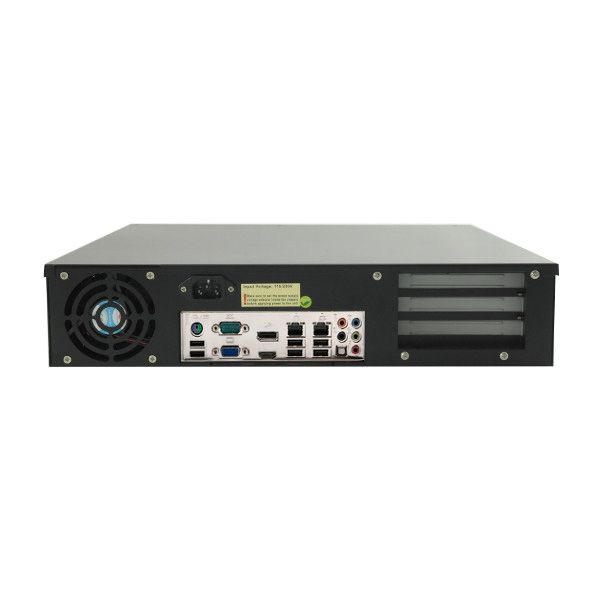

Chassis Specifications:

  • General
  • Form Factor: 2U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 3
  • Max Card Depth: 9 inches"
  • External 5.25" Bays: 1
  • Internal 3.5" Bays: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 1
  • Included Fans: 1
  • Physical
  • Depth: 17.70"
  • Depth (Inches): 17.7
  • Width: 19"
  • Height: 3.50"
  • Shipping Box - Depth: 23"
  • Shipping Box - Width: 23"
  • Shipping Box - Height: 12"
  • Shipping Weight: 27lbs
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
