SL-2U-MCX-C224SLM-GD-1 This item is no longer available.
2U Rack Mount Industrial PC - Rackmount featuring Intel C224 Express Chipset, Xeon E3-1200v3 (LGA1150, 'Haswell'), 3x GB (10/100/1000) LAN, 2x Serial, Up to 32GB RAM, 6x USB 2.0 Ports ( 2 Front, 4 Rear ), 4x USB 3.2 Gen 1 Ports ( 1 Rear, 3 Internal Headers ), 3x Expansion Slots.
Type:
- 2U Rack Mount Industrial PC
- Depth: 15.35", Max Card Depth: 9.00"
Motherboard:
- Featuring Intel C224 Express Chipset and Xeon E3-1200v3 (LGA1150, 'Haswell') processor
- Low Profile Slots:
1 - PCIe x16
2 - PCIe x8 - LAN: 3x Ports (GB (10/100/1000))
- RAID: 0,1 via LSI MegaRAID
- Video: VGA
- Audio: No Onboard Audio
- Ports:
6x USB 2.0 Ports ( 2 Front, 4 Rear )
4x USB 3.2 Gen 1 Ports ( 1 Rear, 3 Internal Headers )
2x COM Ports (1 RS232 Rear, 1 RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: G1820 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (53W) (ERM)
- Memory: 4 GB DDR3 1600MHz ECC Unbuffered RAM
- Hard Drive: 1.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series
- Power Supply: 400W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

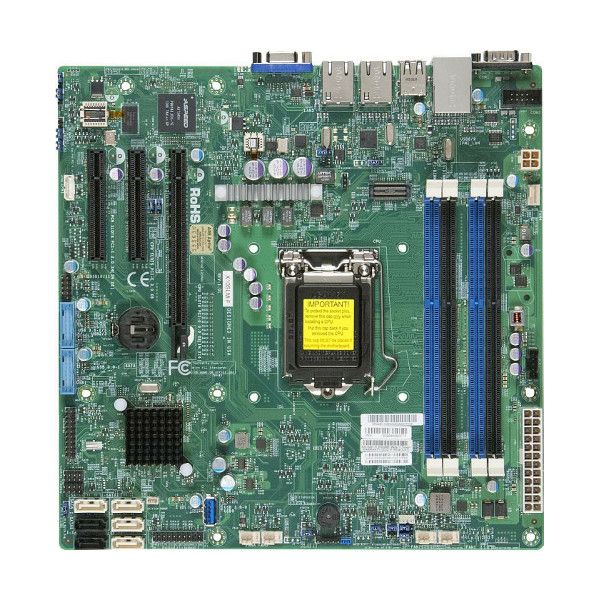

MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MicroATX
- Supported CPU
- Number of Processors: 1
- Processor Type: Xeon E3-1200v3 (LGA1150, 'Haswell')
- Chipset
- Chipset: Intel C224 Express Chipset
- Memory
- Memory Type: DDR3 1600MHz ECC
- Memory Type: ECC Unbuffered
- DIMMS: 4
- Maximum Memory: 32GB
- On Board Audio
- Audio Type: No Onboard Audio
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: VGA
- VGA Port Out: 1
- LAN
- LAN Ports: 3
- LAN Type: GB (10/100/1000)
- LAN Chipset: Intel® i217LM
- Second LAN Chipset: Intel® i210AT
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA II Ports (3GB): 2
- SATA III Ports (6GB): 4
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- PCI Express x8 Slots On Motherboard: 2

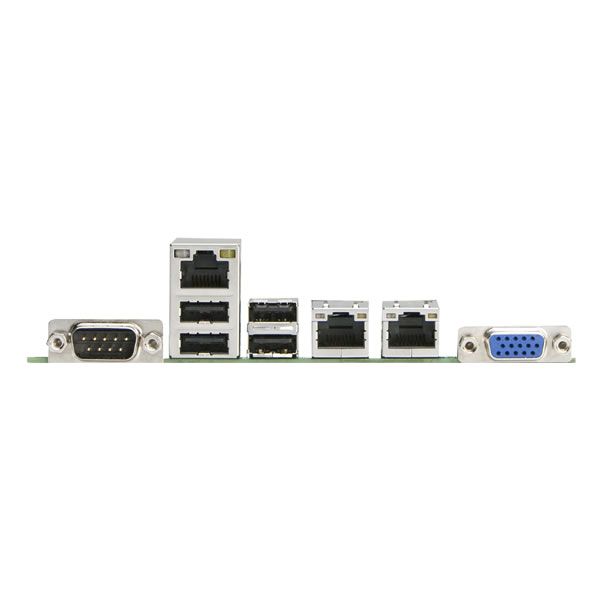

- Rear IO
- USB 2.0 Ports (on IO): 4
- USB 3.2 Gen 1 Type A Ports (on IO): 1
- Serial (Rear IO): 1
- Headers
- USB 2.0 Ports (on Headers): 2
- USB 3.0 Ports (on Headers): 3
- Serial (via Headers): 1
- FAN Connectors: 5
- DOM
- Chassis Intrusion
- TPM Support: Via 2.0 Header
- Management Features
- IPMI
- NMI
- Watch Dog
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 8%
- Operating System Support
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- SL-Windows 10PRO to 7PRO 32-bit
- SL-Windows 10PRO to 7PRO 64-bit
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows 8.1 (32-bit)
- Windows 8.1 (64-bit)
- Windows 8.1 Pro (32-bit)
- Windows 8.1 Pro (64-bit)
- Windows Embedded 8 (32-bit)
- Windows Embedded 8 (64-bit)
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- Windows 10 IoT Value
- Windows 10 IoT Ent
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- Windows Server 2012
- RED HAT Enterprise LINUX SERVER STANDARD
- LINUX Ubuntu Desktop
- LINUX Ubuntu Workstation
- Ubuntu Server Edition
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Other Features
- Other Features:
- 1x PCI-E 3.0 x8 (in x16) slot
- 1x PCI-E 3.0 x8 slot
- 1x PCI-E 2.0 x4 (in x8) slot
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 2U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Micro ATX
- Slide Rails: Optional
- Expansion
- Low Profile Slots: 4
- Max Card Depth: 9.00"
- External 5.25" Bays: 1
- Internal 3.5" Bays: 4
- Front Ports
- USB 2.0 Port (Front): 2
- Cooling System
- Maximum Fan Count: 2
- Included Fans: 1
- Physical
- Depth: 15.35"
- Depth (Inches): 15.35
- Width: 19"
- Height: 3.50"
- Shipping Box - Depth: 22"
- Shipping Box - Width: 21"
- Shipping Box - Height: 7"
- Shipping Weight: 25lbs
- Other Features
- Chassis Warranty: 1 Year
