SL-2U-MCX-C7412L2T-DN

Name: SL-2U-MCX-C7412L2T-DN
SKU: SL-2U-MCX-C7412L2T-DN

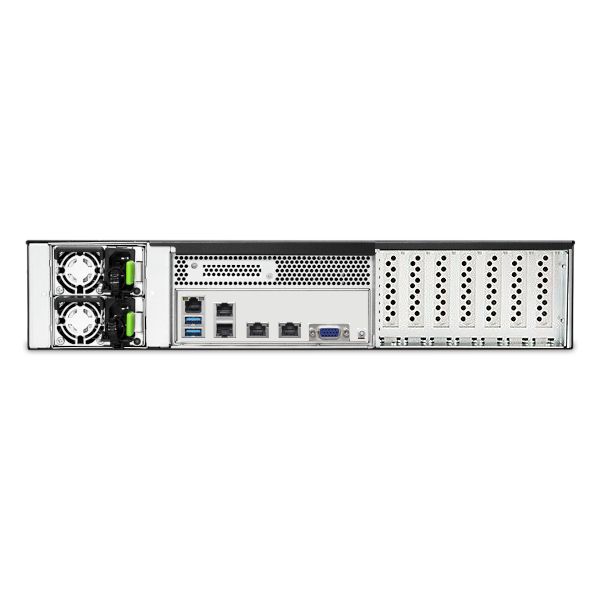

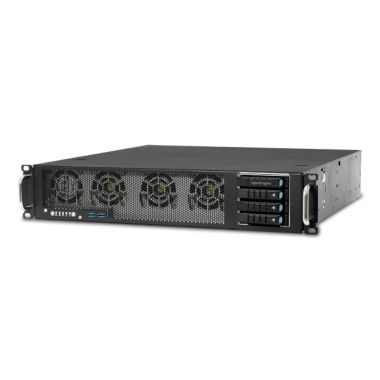

2U Rack Mount Server - Rackmount featuring Intel C741 Chipset, Intel® Xeon® Scalable Processors 5th/4th Gen LGA-4677 (Socket E), CPU TDP supports up to 350W TDP, 5x 10GbE + 10GbE + 1GbE + 1GbE + IPMI LAN, 1x Serial, Up to 96GB RAM, 2x USB 2.0 Ports ( 2 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear ), 4x Expansion Slots, Power Supply 800W 1+1 redundant PSU 80+ Platinum.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

2U Rack Mount Server
Depth: 17.72"

Motherboard:

Featuring Intel C741 Chipset and Intel® Xeon® Scalable Processors 5th/4th Gen LGA-4677 (Socket E), CPU TDP supports up to 350W TDP processor
Low Profile Slots:
4 - PCIe x16
LAN: 5x Ports (10GbE + 10GbE + 1GbE + 1GbE + IPMI)
RAID: 0,1,5,10 and NVMe 0,1 RAID Intel VROC
Video: VGA
Audio: No Onboard Audio
Ports:
2x USB 2.0 Ports ( 2 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear )
1x COM Port (RS232 Internal Headers)
See specifications for more ports
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

Processor: Intel Xeon Silver 4410T Processor (26.25M Cache, 2.7 GHz) 10 Cores, 150W
Memory: 4 x 16GB DDR5 4800MHz ECC Registered RAM
Hard Drive: 1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO
Power Supply: 800W 1+1 redundant PSU 80+ Platinum
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Technical Specifications

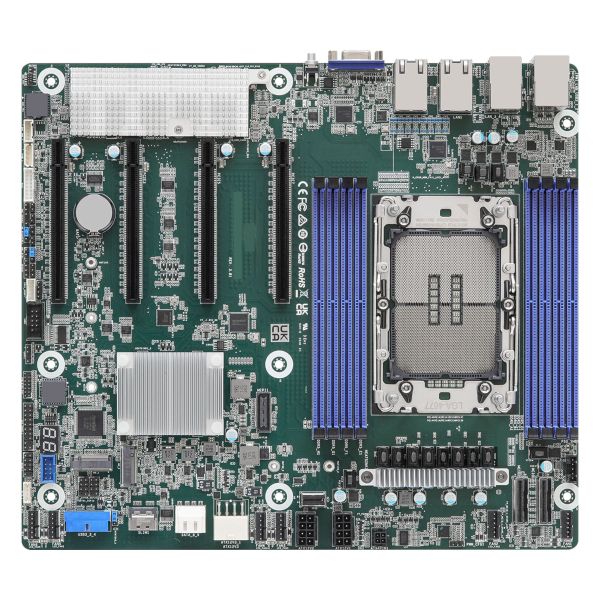

MotherBoard Specifications:

Motherboard Model
Motherboard Type: SSI CEB
Long Production Cycle
Supported CPU
Number of Processors: 1
Processor Type: Intel® Xeon® Scalable Processors 5th/4th Gen LGA-4677 (Socket E), CPU TDP supports up to 350W TDP
Chipset
Chipset: Intel C741 Chipset
Memory
Memory Type: DDR5 5600MHz ECCR
Memory Type: ECC Registered
DIMMS: 8
Maximum Memory: 96GB
On Board Audio
Audio Type: No Onboard Audio
On Board Video
Video Chipset: ASPEED AST2600 BMC
Video on IO: VGA
VGA Port Out: 1
LAN
LAN Ports: 5
LAN Type: 10GbE + 10GbE + 1GbE + 1GbE + IPMI
LAN Chipset: Broadcom BCM57416 (10GbE)
Second LAN Chipset: Broadcom BCM57416 (10GbE)
Third LAN Chipset: Intel® i210
Fourth LAN Chipset: Intel® i210
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 12
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 4
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
M.2 SATA SSD
PCIe Signal
2242 - 22 mm x 42 mm.
2280 - 22 mm x 80 mm.
22110 - 22 mm x 110 mm.
M.2 Slot #2 Specs
M.2 SATA SSD
PCIe Signal
2280 - 22 mm x 80 mm.
22110 - 22 mm x 110 mm.

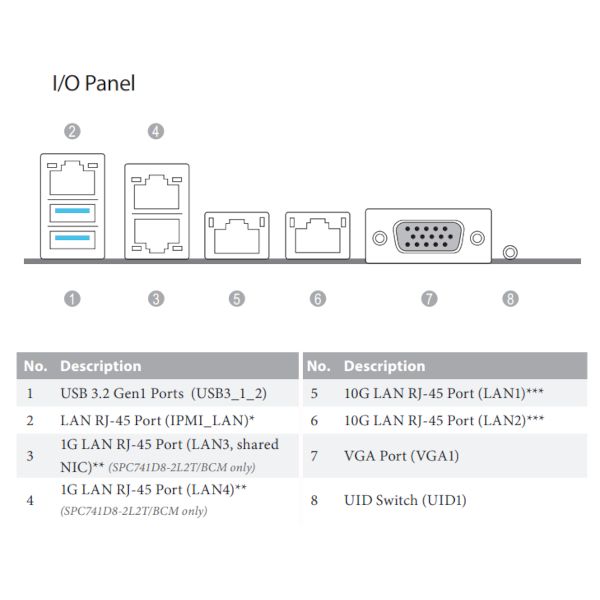

Rear IO
USB 3.2 Gen 1 Type A Ports (on IO): 2
Headers
USB 2.0 Ports (on Headers): 2
USB 3.2 Gen 1 Ports (on Headers): 2
Serial (via Headers): 1
FAN Connectors: 6
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
High Humidity: 90%
Low Humidity: 20%
Operating System Support
Windows Server 2022 STD
RED HAT Enterprise LINUX WORKSTATION STANDARD
RED HAT Enterprise LINUX SERVER BASIC
RED HAT Enterprise LINUX SERVER STANDARD
Ubuntu Server Edition
Compliance of Component
CE
RoHS
FCC
Other Features
Features:
PCIe
SLOT7: PCIe5.0 / CXL1.1 x16 [CPU]
SLOT5: PCIe5.0 / CXL1.1 x16 [CPU]
SLOT3: PCIe5.0 / CXL1.1 x16 [CPU]
SLOT1: PCIe5.0 / CXL1.1 x16 [CPU]

M.2
1 M-key M2_1 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor [PCH]
1 M-key M2_2 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [PCH]

Memory

5600 MT/s on 5th Gen Intel^® Xeon^® Scalable Processors
4800 MT/s on 4th Gen Intel^® Xeon^® Scalable Processors
*Memory speed and capacity support varies by CPU SKU

IPMI

1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year
