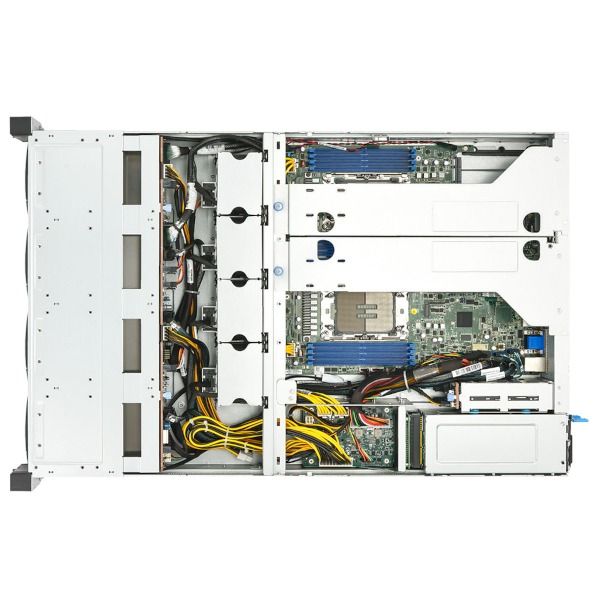

SL-2U-MTC741T-DP-100725
2U CE-Marked Server with Rear-Facing I/O - Rackmount PC featuring Serverboard with Intel C741 Chipset and support for 4th and 5th gen. Xeon Scalable processors (LGA4677), Up to 2TB DDR5 RAM, 1x IPMI LAN (ASpeed AST2600), 1x Serial (rear), 1x VGA (via AST2600), 4x USB 3.2 gen. 1 (2 rear, 2 front).
2U CE-Marked Server with Rear-Facing I/O - Rackmount PC featuring Serverboard with Intel C741 Chipset and support for 4th and 5th gen. Xeon Scalable processors (LGA4677), Up to 2TB DDR5 RAM, 1x IPMI LAN (ASpeed AST2600), 1x Serial (rear), 1x VGA (via AST2600), 4x USB 3.2 gen. 1 (2 rear, 2 front).
2 x Intel Xeon Silver 4510 Processor (30MB Cache, 2.4 GHz, up to 4.1GHz) 12 Cores
8 x 16GB DDR5 4800MHz ECC Registered RAM
2 x 1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO (in RAID 1 array via HW controller)
4 x 16TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS X16 Series (in RAID 10 array via HW controller)
1 x 8-port SAS/SATA RAID Boot Storage Controller - Broadcom 9540-8i
1 x Dual-Port Gigabit Network Adapter, 2x RJ45, Intel I350, PCIe 3.0 x4
1 x NVIDIA RTX A400 Workstation Video Card- 4GB 64-bit GDDR6, PCIe 4.0 x16 - 4 x Mini DisplayPort 1.4
1 x SPI capable TPM 2.0 with Infineon 9670 controller
1 x 1300W 1+1 Redundant Power Supply - 80+ Titanium
1 x Ubuntu Server 22.04 LTS installed and tested. Support via Ubuntu community online
1 x Three-Year Depot Warranty
Regulatory approvals: FCC Class A, CE Class A, CB/LVD, RCM, VCCI, BSMI, RoHS 6/6
2U CE-Marked Server with Rear-Facing I/O - Rackmount PC featuring Serverboard with Intel C741 Chipset and support for 4th and 5th gen. Xeon Scalable processors (LGA4677), Up to 2TB DDR5 RAM, 1x IPMI LAN (ASpeed AST2600), 1x Serial (rear), 1x VGA (via AST2600), 4x USB 3.2 gen. 1 (2 rear, 2 front).
2 x Intel Xeon Silver 4510 Processor (30MB Cache, 2.4 GHz, up to 4.1GHz) 12 Cores
8 x 16GB DDR5 4800MHz ECC Registered RAM
2 x 1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO (in RAID 1 array via HW controller)
4 x 16TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS X16 Series (in RAID 10 array via HW controller)
1 x 8-port SAS/SATA RAID Boot Storage Controller - Broadcom 9540-8i
1 x Dual-Port Gigabit Network Adapter, 2x RJ45, Intel I350, PCIe 3.0 x4
1 x NVIDIA RTX A400 Workstation Video Card- 4GB 64-bit GDDR6, PCIe 4.0 x16 - 4 x Mini DisplayPort 1.4
1 x SPI capable TPM 2.0 with Infineon 9670 controller
1 x 1300W 1+1 Redundant Power Supply - 80+ Titanium
1 x Ubuntu Server 22.04 LTS installed and tested. Support via Ubuntu community online
1 x Three-Year Depot Warranty
Regulatory approvals: FCC Class A, CE Class A, CB/LVD, RCM, VCCI, BSMI, RoHS 6/6
