SL-3U-AH810M-GK

Name: SL-3U-AH810M-GK
SKU: SL-3U-AH810M-GK
Price: 1635.00 USD

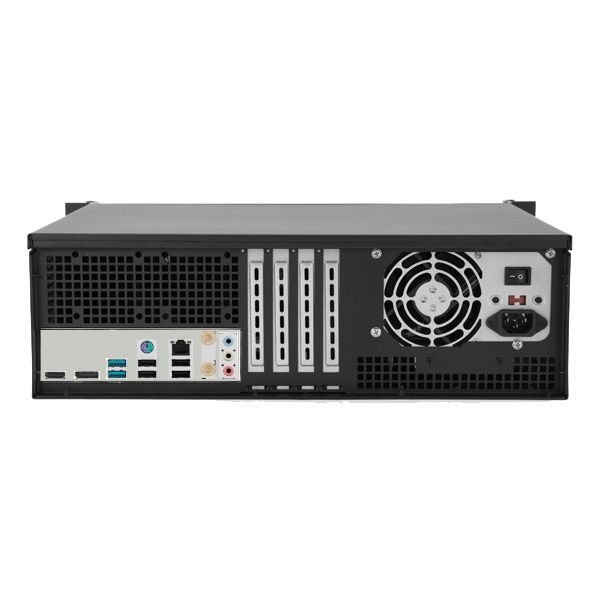

3U Rack Mount Industrial PC - Rackmount featuring Intel H810 Chipset, Intel® Core™ Ultra Processors (Series 2), LGA1851, 1x 1GbE (10/100/1000) LAN, WIFI,1x Serial, Up to 128GB RAM, 6x USB 2.0 Ports ( 2 Front, 4 Rear ), 2x USB 3.2 Gen 1 Ports ( 2 Internal Headers ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers ), 2x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

3U Rack Mount Industrial PC
Depth: 15.35", Max Card Depth: 8.5"

Motherboard:

Featuring Intel H810 Chipset and Intel® Core™ Ultra Processors (Series 2), LGA1851 processor
Full Height Slots:
1 - PCIe x16
1 - PCIe x1
LAN: 1x Ports (1GbE (10/100/1000))
WiFi: Wi-Fi 6 + BT 5.2
Video: 1x DisplayPort + HDMI
Audio: Realtek® Audio CODEC
Ports:
6x USB 2.0 Ports ( 2 Front, 4 Rear )
2x USB 3.2 Gen 1 Ports ( 2 Internal Headers )
2x USB 3.2 Gen 2 Ports ( 2 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers )
1x COM Port (RS232 Internal Headers)
See specifications for more ports
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

Processor: Intel Core Ultra 5 225 Processor - 10 Cores (6P + 4E), 20MB Cache, 121W (PL2)
Memory: 16GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM
Hard Drive: 500GB M.2 2280 NVMe SSD or greater 5,000/3,000MB/s
Power Supply: 550W Fully Modular ATX Power Supply - 80+ Bronze
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

Intel Core Ultra 5 225 Processor - 10 Cores (6P + 4E), 20MB Cache, 121W (PL2) show $355.00

Intel Core Ultra 7 265 Processor - 20 Cores (8P + 12E), 30MB Cache, 182W (PL2) show $664.00

Intel Core Ultra 9 285 Processor - 24 Cores (8P + 16E), 36MB Cache, 250W (PL2) show $1,037.00

Memory

x 8GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $247.00

x 16GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $507.00

x 32GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $995.00

x 64GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $1,904.00

x 32GB DDR5 5600MHz RAM show $1,073.00

x 32GB (2 x 16GB) DDR5 6000MHz SDRAM Memory KitPart ETA Varies – Ask Sales show $1,343.00

x 64GB (2 x 32GB) DDR5 6000MHz SDRAM Memory Kit show $2,227.00

CD/DVD/OpticalDrive

None show Included

External USB

External USB DVD ReWriteable Drive show $57.00

Internal

Compact internal 8X HH DVD Writer 5.25 bay 8X DVD Writer show $80.00

Drive Bays

1x 3.5" Hard Drive Aluminum Removable Bay (Require a 5.25" external bay) Special Order Item, Delivery approximately 10 weeks show $79.00 each

Replacement Caddy for SL-HDD-MR-SATA-MIL HDD Rack show $90.00 each

Add an Enterprise 2 x 2.5" SATA Hard Drive or SSD Mobile Rack with Full Metal Construction with Lock - show $102.00 each

Replacement Tray for SL-HDD-MR-1FDD-2SSD..7-9.5mm Height, show $49.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage show $208.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage with Locks. Part Delay: ETA December 7, 2026 show $280.00 each

Removable M.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack Enclosure for PCIe Expansion Slot show $160.00 each

Additional Hard Drives

M.2 NVMe SSD

500GB M.2 2280 NVMe SSD or greater 5,000/3,000MB/s show $183.00 each

1TB PCIe 4.0 NVMe SSD M.2 Read/write speeds up to 7100MB/s / 6700MB/s show $319.00 each

1TB PCIe 5.0 NVMe SSD M.2 7,150/6,300MB/s - Samsung 990 EVO Plus show $399.00 each

2TB PCIe 5.0 NVMe SSD M.2 7,250/6,300MB/s - Samsung 990 EVO Plus show $797.00 each

4TB PCIe 5.0 NVMe SSD M.2 7,250/6,300MB/s - Samsung 990 EVO Plus show $1,370.00 each

1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $348.00 each

2TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $565.00 each

4TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $1,099.00 each

1TB PCIe 5.0 NVMe SSD M.2 14,700/13,300MB/s - Samsung 9100 PRO show $362.00 each

2TB PCIe 5.0 NVMe SSD M.2 14,700/13,400MB/s - Samsung 9100 PRO show $580.00 each

4TB PCIe 5.0 NVMe SSD M.2 14,800/13,400MB/s - Samsung 9100 PRO show $1,660.00 each

4TB SSD M.2 NVMe SSD - 7300MB/6600MB - WD Black show $973.00 each

2.5" SATA SSD

240GB SATA 3 2.5" SSD - 500/350MB Read/Write or greater. show $136.00 each

1TB 2.5" Internal SSD, SATA 3.0 6.0Gb/s, TLC NAND Flash ,up to 535/515 MB/s read/write speeds, MTBF 2, show $301.00 each

2TB 2.5" SATA SSD 560/510MB/s 6Gb/s Premium Samsung, Micron or Kingston Unit show $370.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $210.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $332.00 each

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $446.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $725.00 each

4TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $1,924.00 each

3.5" SATA HDD

1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue show $209.00 each

4.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E8 Series show $617.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS 7E10 Series Part ETA Varies – Ask Sales show $587.00 each

12.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $936.00 each

14.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $1,095.00 each

16.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $1,087.00 each

18.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series Part ETA Varies – Ask Sales show $1,400.00 each

20TB SATA 6Gb/s 7200RPM 256MB 3.5" - Seagate Skyhawk AI Series show $1,159.00 each

24TB Seagate 7200 RPM 512MB Cache SATA 6.0Gb/s 3.5" Internal Hard Drive Bare Drive show $1,450.00 each

28TB SATA 6Gb/s 7200RPM 512MB 3.5" - Seagate IronWolf Pro Series show $2,349.00 each

32TB SATA 6Gb/s 7200RPM 512MB Cache 3.5" HDD - Seagate Skyhawk AI Series show $1,960.00 each

2.0TB SATA 6.0Gb/s 5400 RPM 64 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $240.00 each

4.0TB SATA 6.0Gb/s 5400 RPM 128 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $334.00 each

4TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $334.00 each

6TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $440.00 each

Cable

TPM 2.0 Module - TPM IC: Nuvoton NPCT750. Pin Dimension: 14-1pin show $31.00 each

Add 1 DB9 Serial Port 9-pin Serial to 10-pin Header 16" show $8.00 each

Add 2 USB 3.x A Female Ports via internal USB header cable show $25.00 each

3 ft HDMI® to DVI-D Cable - M/M show $13.00 each

6 ft HDMI® to DVI-D Cable - M/M show $15.00 each

DisplayPort to DVI-D Video Adapter Converter *DVI-D (digital only, will not work with a DVI-I to VGA show $15.00 each

DisplayPort® to HDMI® Video Adapter Converter show $29.00 each

DisplayPort to VGA Video Adapter Converter show $36.00 each

Plug-In Boards

M.2 NVMe Adapter

M.2 NVMe Adapter - M.2 NVMe PCI-e M-key To PCI-e 3.0 x4 Card. Requires a PCIe x4 slot. show $19.00 each

Serial PCIe Card

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

4 Port DB9 RS-422/485 Serial PCI-Express 2.0 x1 Card, Single Slot with Fan Out Serial Cable - Full Hei show $99.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile show $43.00 each

Parallel PCIe Card

1 Port DB25 Parallel Printer (LPT1) PCI-Express 2.0 x1 Card show $31.00 each

Parallel PCIe Card with EPP mode - 1-Port, Full Height show $89.00 each

USB Cards

4-Port USB 3.0 Gen 1 PCIe Card - PCIe x1, Full-Height Only VIA Chipset - Windows 11/10/8.1/8/7/Vista Part ETA Varies – Ask Sales show $28.00 each

Firewire PCIe Card

Add-In Graphic Card

None show Included

GeForce RTX

NVIDIA GeForce RTX 5060 8GB 128-Bit GDDR7 PCIe 5.0 - Recommended 450W PSUPart Delay: ETA November 20, 2026 show $718.00

Professional Graphics Cards

NVIDIA RTX A400 4GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $312.00

NVIDIA RTX A1000 8GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $754.00

NVIDIA RTX PRO 2000 Blackwell 16GB GDDR7 with ECC, PCIe 5.0 x16 - Support Low Profile show $2,326.00

NVIDIA RTX PRO 4000 Blackwell 24GB GDDR7 with ECC, PCIe 5.0 x16 - Support Low Profile show $4,205.00

NVIDIA RTX 2000 ADA 16GB GDDR6, PCIe 4.0 x16 - 4x Mini DisplayPort 1.4a - Low Profile and Full Height Compatible show $1,017.00

Networking

RJ45

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile show $39.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $266.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $160.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $218.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $110.00 each

PCIe x4 - 10/100/1000/2500Mbps Single Port Network Adapter, 2.5GBASE-T/NBASE-T - Full Height or Low Pr show $52.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $235.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $939.00 each

SFP28

Intel Ethernet Network Adapter E810-XXVDA2 - network adapter - PCIe 4.0 x8 - 10/25 Gigabit SFP28 x 2.. show $391.00 each

QSFP28

PCI x16 Dual Port 100GB Intel Ethernet Network Adapter E810-CQDA2 - network adapter - PCIe 4.0 x16 - Q show $742.00 each

Power Supply

550W Fully Modular ATX Power Supply - 80+ Bronze show $95.00

850W ATX12V / EPS12V Full Modular Power Supply - 80+ Gold Certified show $228.00

Operating System

None show Included

Microsoft Windows 11 Home, 64-Bit show $149.00

Microsoft Windows 11 IoT Enterprise 2024 LTSC 64-Bit: ATMs, Medical, Industrial - License For i7, XEON show $199.00

Microsoft Windows 11 IoT Enterprise 2024 LTSC 64-Bit: ATMs, Medical, Industrial - License For Socketed Intel Celeron, Pentium, i3 and i5 CPUs show $124.00

Microsoft Windows 11 Professional, 64-Bit show $199.00

Microsoft Windows 11 Pro For Workstation, 64-Bit show $389.00

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $43.00 each

Microsoft Office Home 2024 Medialess - License ONLY. NO Media. show $212.00 each

Microsoft Office Home and Business 2024 Medialess - License ONLY. NO Media. show $297.00 each

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $43.00 each

Microsoft Office Home 2024 Medialess - License ONLY. NO Media. show $212.00 each

Microsoft Office Home and Business 2024 Medialess - License ONLY. NO Media. show $297.00 each

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $43.00 each

Microsoft Office Home 2024 Medialess - License ONLY. NO Media. show $212.00 each

Microsoft Office Home and Business 2024 Medialess - License ONLY. NO Media. show $297.00 each

Monitors

None show Included

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits racks 18.5" - 27.6" DeepPart ETA Varies – Ask Sales show $1,069.00

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" - 33" DeepPart ETA Varies – Ask Sales show $1,631.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and touchpad (HDMI inputPart ETA Varies – Ask Sales show $1,218.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and trackball (HDMI inpuPart ETA Varies – Ask Sales show $1,272.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchpad, and 8-port KVM (Cables not included)Part ETA Varies – Ask Sales show $1,780.00

1U Rackmount 19" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Deep RacksPart ETA Varies – Ask Sales show $1,177.00

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - 33" Deep RacksPart ETA Varies – Ask Sales show $1,738.00

Keyboard/Mouse

Keyboard and Mouse Combo

USB Keyboard/Mouse - Black/Silver show $27.00 each

Wireless Keyboard/Mouse show $53.00 each

Medical Grade Keyboard

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $129.00 each

Medical Grade Mouse

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $102.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $143.00 each

Rackmount Keyboard Drawer

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $286.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. Part ETA Varies – Ask Sales show $431.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. Part ETA Varies – Ask Sales show $485.00 each

External Power

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P show $125.00 each

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P show $207.00 each

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & S show $785.00 each

Tripp Lite Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets Special Order Item, Delivery approximately 10 weeks show $117.00 each

Mounting Option

None show Included

20" Adjustable Slide Rails - Fits 22.3" - 31" deep cabinet. Support chassis up to 23" deepPart Delay: ETA November 6, 2026 show $57.00

24" Adjustable Slide Rails - Fits 26.3" - 39" deep cabinet. Support chassis up to 27" deep show $63.00

26" Adjustable Slide Rails - Fits 28.4" - 39" deep cabinet. Supported chassis up to 29" deep show $72.00

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MicroATX
Supported CPU
Number of Processors: 1
Processor Type: Intel® Core™ Ultra Processors (Series 2), LGA1851
Chipset
Chipset: Intel H810 Chipset
Memory
Memory Type: DDR5 4800MHz
Memory Type: Non-ECC
DIMMS: 2
Maximum Memory: 128GB
On Board Audio
Audio Type: Realtek® Audio CODEC
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: 1x DisplayPort + HDMI
Display Port Out: 1
HDMI Out: 1
LAN
LAN Ports: 1
LAN Type and IPMI: 1GbE (10/100/1000)
LAN Chipset: Intel® GbE LAN chip
Wireless LAN: Wi-Fi 6 + BT 5.2
Drive Interface
SATA III Ports (6GB): 4
Expansion Slots
PCI Express x16 Slots On Motherboard: 1
PCI Express x1 Slots On Motherboard: 1
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
2280 - 22 mm x 80 mm.
M.2 Slot #2 Specs
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
Rear IO
PS/2 Combo (Mouse/Keyboard)
USB 2.0 Ports (on IO): 4
USB 3.2 Gen 2 Type A Ports (on IO): 2
Audio on IO
Headers
USB 2.0 Ports (on Headers): 2
USB 3.2 Gen 1 Ports (on Headers): 2
USB 3.2 Gen 2 Type-C (on Headers): 1
Serial (via Headers): 1
FAN Connectors: 3
Audio on Headers
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
High Humidity: 95%
Low Humidity: 5%
Operating System Support
Windows 11 Home (64 Bit)
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC Value
Windows 11 IoT 2024 LTSC High End
Compliance of Component
CE
RoHS
FCC
Other Features
Features:
Expansion Slots

Intel^® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel^® H810 Chipset
1 x PCIe 4.0 x1 slot

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel^® H810 Chipset
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers
Motherboard Warranty: 1 Year

Chassis Specifications:

General
Form Factor: 3U Rackmount
Color: Black
Material: Metal/Aluminum
Material Thickness: 1mm
Motherboard Compatibility: Micro ATX
Slide Rails: Optional
Expansion
Full Height Slots: 4
Max Card Depth: 8.5"
External 5.25" Bays: 2
Internal 3.5" Bays: 4
External 3.5" Bays: 1
Internal 2.5" Bays: 2
Front Ports
USB 2.0 Ports (Front): 2
Cooling System
Maximum Fan Count: 4
Included Fans: 2
Physical
Depth: 15.35"
Depth (Inches): 15.35
Width: 19.10"
Height: 5.25"
Shipping Box - Depth: 22"
Shipping Box - Width: 21"
Shipping Box - Height: 9"
Shipping Weight: 35lbs
Other Features
Chassis Warranty: 1 Year

Available Downloads

CASE-3U-D-313V2-MATX

SuperLogics CAD Legal Disclaimer

By downloading a CAD drawing or multiple CAD drawings (collectively as may be downloaded by any requestor on behalf of the Company, the "CAD Drawings"), the requestor agrees to use such CAD Drawings only subject to these Use Restrictions Terms ("Use Terms") and warrants that it is a customer of SuperLogics, Inc. or is exploring designing SuperLogics products into its products ("Company"). All downloaded information remains SuperLogics’ property. For clarity, Company does not acquire any intellectual property rights, including licenses, under these Use Terms. Company agrees not to use, reverse engineer, decompile or disassemble any downloaded CAD Drawings. Information is provided "AS IS" and SuperLogics disclaims all warranties regarding Confidential Information disclosed hereunder and nothing herein will create any rights or commitments to enter into any business transaction. Any dispute arising out of or connected with these Use Terms, including a dispute as to the validity or existence thereof shall be subject to the sole and exclusive jurisdiction of the Massachusetts courts.

SuperLogics 3U - GK Drawing (File Type: PDF)

SuperLogics 3U-GK 3D Drawing (File Type: STEP)

Looking for something different? We offer 100% custom desktops!

Nobody else can beat it The Superlogics Warranty

Configured Price

$1,635.00

Qty

To Request a Quote Add to Cart >

Save this Configuration

Configuration Comments

Send Configuration to Sales

Open Datasheet in "Pop Up" Window
