SL-3U-AZ890PA-SE

Name: SL-3U-AZ890PA-SE
SKU: SL-3U-AZ890PA-SE
Price: 3295.00 USD

3U Liquid Cooled Rack Mount Industrial PC - Rackmount featuring Intel Z890 Chipset, Intel® Core™ Ultra Processors (Series 2), LGA1851, 2x 2.5GbE + 10GbE LAN, WIFI,1x Serial, Up to 256GB RAM, 3x USB 2.0 Ports ( 1 Rear, 2 Internal Headers ), 2x USB 3.2 Gen 1 Ports ( 2 Front ), 6x USB 3.2 Gen 2 Ports ( 6 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers ), 3x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

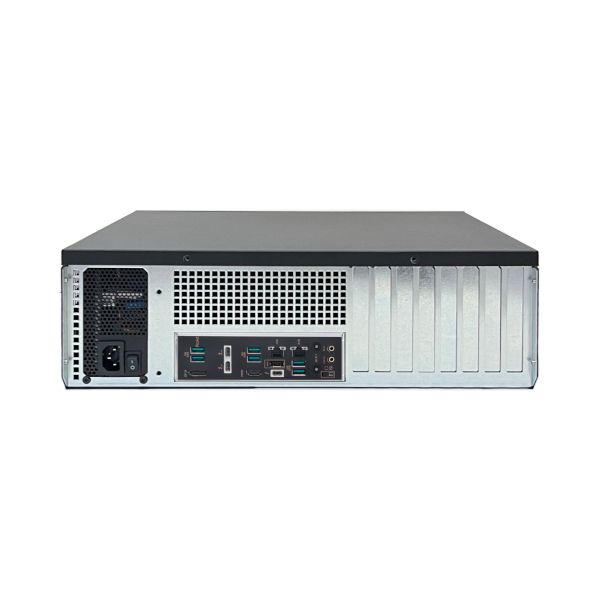

3U Liquid Cooled Rack Mount Industrial PC
Depth: 16.89", Max Card Depth: 375mm"

Motherboard:

Featuring Intel Z890 Chipset and Intel® Core™ Ultra Processors (Series 2), LGA1851 processor
Full Height Slots:
3 - PCIe x16
LAN: 2x Ports (2.5GbE + 10GbE )
WiFi: Wi-Fi 7 + BT 5.4
RAID: NVMe 0,1,5
Video: 1x HDMI, 2x Intel® Thunderbolt™ 5, 1x Intel® Thunderbolt™ 4
Audio: Realtek ALC1220P Surround Sound High Definition Audio CODEC
Ports:
3x USB 2.0 Ports ( 1 Rear, 2 Internal Headers )
2x USB 3.2 Gen 1 Ports ( 2 Front )
6x USB 3.2 Gen 2 Ports ( 6 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers )
2x Thunderbolt™ 5 Type-C Port (Rear)
1x Thunderbolt™ 4 (supports USB 4.0) Type-C Port (Rear)
1x COM Port (RS232 Internal Headers)
See specifications for more ports
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

Processor: Intel Core Ultra 5 225 Processor - 10 Cores (6P + 4E), 20MB Cache, 121W (PL2)
Memory: 2 x 16GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM
Hard Drive: 500GB M.2 2280 NVMe SSD or greater 5,000/3,000MB/s
Power Supply: 700W SFX Form Factor Auto-Switching Power Supply, Fully Modular, 80+ Platinum
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

Intel Core Ultra 5 225 Processor - 10 Cores (6P + 4E), 20MB Cache, 121W (PL2) show $355.00

Intel Core Ultra 5 245K Processor - 14 Cores (6P + 8E), 24MB Cache, 159W (PL2) show $380.00

Intel Core Ultra 7 265 Processor - 20 Cores (8P + 12E), 30MB Cache, 182W (PL2) show $664.00

Intel Core Ultra 7 265K Processor - 20 Cores (8P + 12E), 30MB Cache, 250W (PL2) show $685.00

Intel Core Ultra 9 285 Processor - 24 Cores (8P + 16E), 36MB Cache, 250W (PL2) show $1,037.00

Intel Core Ultra 9 285K Processor - 24 Cores (8P + 16E), 36MB Cache, 250W (PL2) show $1,040.00

Memory

x 8GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $247.00

x 16GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $507.00

x 32GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $995.00

x 64GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $1,904.00

x 32GB DDR5 5600MHz RAM show $1,073.00

x 32GB (2 x 16GB) DDR5 6000MHz SDRAM Memory KitPart ETA Varies – Ask Sales show $1,343.00

x 64GB (2 x 32GB) DDR5 6000MHz SDRAM Memory Kit show $2,227.00

Liquid Cooler/Fan (Optional)

None show Included

240mm high-performance AIO liquid cooler show $82.00

360mm high-performance AIO liquid cooler.. show $95.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $57.00

Additional Hard Drives

M.2 NVMe SSD

500GB M.2 2280 NVMe SSD or greater 5,000/3,000MB/s show $183.00 each

1TB PCIe 4.0 NVMe SSD M.2 Read/write speeds up to 7100MB/s / 6700MB/s show $319.00 each

1TB PCIe 5.0 NVMe SSD M.2 7,150/6,300MB/s - Samsung 990 EVO Plus show $399.00 each

2TB PCIe 5.0 NVMe SSD M.2 7,250/6,300MB/s - Samsung 990 EVO Plus show $797.00 each

4TB PCIe 5.0 NVMe SSD M.2 7,250/6,300MB/s - Samsung 990 EVO Plus show $1,370.00 each

1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $348.00 each

2TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $565.00 each

4TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $1,099.00 each

4TB SSD M.2 NVMe SSD - 7300MB/6600MB - WD Black show $973.00 each

1TB PCIe 5.0 NVMe SSD M.2 14,700/13,300MB/s - Samsung 9100 PRO show $362.00 each

2TB PCIe 5.0 NVMe SSD M.2 14,700/13,400MB/s - Samsung 9100 PRO show $580.00 each

4TB PCIe 5.0 NVMe SSD M.2 14,800/13,400MB/s - Samsung 9100 PRO show $1,660.00 each

2.5" SATA SSD

240GB SATA 3 2.5" SSD - 500/350MB Read/Write or greater. show $136.00 each

1TB 2.5" Internal SSD, SATA 3.0 6.0Gb/s, TLC NAND Flash ,up to 535/515 MB/s read/write speeds, MTBF 2, show $301.00 each

2TB 2.5" SATA SSD 560/510MB/s 6Gb/s Premium Samsung, Micron or Kingston Unit show $370.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $210.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $332.00 each

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $446.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $725.00 each

4TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $1,924.00 each

Raid Controller

Configure NVMe RAID 0 (Striping) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure NVMe RAID 1 (Mirroring) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure NVMe RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 M.2 NVMe DRIVES OF SAME MODEL AND show $0.00 each

Cable

TPM 2.0 Module - TPM IC: Nuvoton NPCT750. Pin Dimension: 14-1pin show $31.00 each

Add 2 USB 2.0 Ports via connections from onboard header. show $16.00 each

Add 1 DB9 Serial Port 9-pin Serial to 10-pin Header 16" show $8.00 each

3 ft HDMI® to DVI-D Cable - M/M show $13.00 each

6 ft HDMI® to DVI-D Cable - M/M show $15.00 each

10 ft Gold Plated DisplayPort to HDMI® Cable show $26.00 each

Plug-In Boards

M.2 NVMe Adapter

M.2 NVMe Adapter - M.2 NVMe PCI-e M-key To PCI-e 3.0 x4 Card. Requires a PCIe x4 slot. show $19.00 each

Serial PCIe Card

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

4 Port DB9 RS-422/485 Serial PCI-Express 2.0 x1 Card, Single Slot with Fan Out Serial Cable - Full Hei show $99.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile show $43.00 each

Parallel PCIe Card

1 Port DB25 Parallel Printer (LPT1) PCI-Express 2.0 x1 Card show $31.00 each

Parallel PCIe Card with EPP mode - 1-Port, Full Height show $89.00 each

USB Cards

4-Port USB 3.0 Gen 1 PCIe Card - PCIe x1, Full-Height Only VIA Chipset - Windows 11/10/8.1/8/7/Vista Part ETA Varies – Ask Sales show $28.00 each

Firewire PCIe Card

Networking

RJ45

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile show $39.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $110.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $160.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $266.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $218.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $235.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $939.00 each

SFP28

Intel Ethernet Network Adapter E810-XXVDA2 - network adapter - PCIe 4.0 x8 - 10/25 Gigabit SFP28 x 2.. show $391.00 each

QSFP28

PCI x16 Dual Port 100GB Intel Ethernet Network Adapter E810-CQDA2 - network adapter - PCIe 4.0 x16 - Q show $742.00 each

Power Supply

700W SFX Form Factor Auto-Switching Power Supply, Fully Modular, 80+ Platinum show $245.00

850W SFX-L Form Factor Auto-Switching Power Supply, Fully Modular, Cybenetics Platinum 850W SFX12V 4.0 (ATX 3.0) & PCIe 5.0 SFX, Equipped with Gen5 1 show $326.00

1000W SFX-L Form Factor Auto-Switching Power Supply, Fully Modular, 80 Plus Platinum Certified Supports 12VHPWR GEN 5 show $540.00

Operating System

None show Included

Microsoft Windows 11 IoT Enterprise 2024 LTSC 64-Bit: ATMs, Medical, Industrial - License For i7, XEON show $199.00

Microsoft Windows 11 Professional, 64-Bit show $199.00

Microsoft Windows 11 Pro For Workstation, 64-Bit show $389.00

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $43.00 each

Microsoft Office Home 2024 Medialess - License ONLY. NO Media. show $212.00 each

Microsoft Office Home and Business 2024 Medialess - License ONLY. NO Media. show $297.00 each

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $43.00 each

Microsoft Office Home 2024 Medialess - License ONLY. NO Media. show $212.00 each

Microsoft Office Home and Business 2024 Medialess - License ONLY. NO Media. show $297.00 each

Monitors

None show Included

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits racks 18.5" - 27.6" DeepPart ETA Varies – Ask Sales show $1,069.00

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" - 33" DeepPart ETA Varies – Ask Sales show $1,631.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and touchpad (HDMI inputPart ETA Varies – Ask Sales show $1,218.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and trackball (HDMI inpuPart ETA Varies – Ask Sales show $1,272.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchpad, and 8-port KVM (Cables not included)Part ETA Varies – Ask Sales show $1,780.00

1U Rackmount 19" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Deep RacksPart ETA Varies – Ask Sales show $1,177.00

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - 33" Deep RacksPart ETA Varies – Ask Sales show $1,738.00

Keyboard/Mouse

Keyboard and Mouse Combo

USB Keyboard/Mouse - Black/Silver show $27.00 each

Wireless Keyboard/Mouse show $53.00 each

Medical Grade Keyboard

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $129.00 each

Medical Grade Mouse

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $102.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $143.00 each

Rackmount Keyboard Drawer

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $286.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. Part ETA Varies – Ask Sales show $431.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. Part ETA Varies – Ask Sales show $485.00 each

External Power

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & S show $785.00 each

Mounting Option

None show Included

20" Adjustable Slide Rails - Fits 22.3" - 31" deep cabinet. Support chassis up to 23" deepPart Delay: ETA November 6, 2026 show $57.00

24" Adjustable Slide Rails - Fits 26.3" - 39" deep cabinet. Support chassis up to 27" deep show $63.00

26" Adjustable Slide Rails - Fits 28.4" - 39" deep cabinet. Supported chassis up to 29" deep show $72.00

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: ATX
Supported CPU
Number of Processors: 1
Processor Type: Intel® Core™ Ultra Processors (Series 2), LGA1851
Chipset
Chipset: Intel Z890 Chipset
Memory
Memory Type: DDR5 4800MHz
Memory Type: Non-ECC
DIMMS: 4
Maximum Memory: 256GB
On Board Audio
Audio Type: Realtek ALC1220P Surround Sound High Definition Audio CODEC
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: 1x HDMI, 2x Intel® Thunderbolt™ 5, 1x Intel® Thunderbolt™ 4
HDMI Out: 1
Thunderbolt™ video outputs: 2
LAN
LAN Ports: 2
LAN Type and IPMI: 2.5GbE + 10GbE
LAN Chipset: Intel® 2.5Gb Ethernet
Second LAN Chipset: Marvell® AQtion 10Gb Ethernet
Wireless LAN: Wi-Fi 7 + BT 5.4
Drive Interface
SATA III Ports (6GB): 4
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 3
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 5
M.2 Slot #1 Specs
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
22110 - 22 mm x 110 mm.
M.2 Slot #2 Specs
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
M.2 Slot #3 Specs
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
M.2 Slot #4 Specs
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
M.2 Slot #5 Specs
M.2 SATA SSD
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
None
Rear IO
USB 2.0 Ports (on IO): 1
USB 3.2 Gen 2 Type A Ports (on IO): 6
Thunderbolt™ 4 (supports USB 4.0) Type-C Port: 1
Thunderbolt™ 5 Type-C Port (Rear): 2
Audio on IO
Headers
USB 2.0 Ports (on Headers): 2
USB 3.2 Gen 1 Ports (on Headers): 2
USB 3.2 Gen 2 Type-C (on Headers): 1
Serial (via Headers): 1
FAN Connectors: 9
Audio on Headers
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
High Humidity: 95%
Low Humidity: 5%
Operating System Support
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC High End
Compliance of Component
CE
RoHS
FCC
Other Features
Features:
Expansion Slot

Intel^® Core™ Ultra Processors (Series 2) *
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
Intel^® Z890 Chipset
*1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel^® Z890 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**
4 x SATA 6Gb/s ports
* Intel^® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled.

Graphics

1 x HDMI™ port**
2 x Intel^® Thunderbolt™ 5 ports (USB Type-C^®) support DisplayPort and Thunderbolt™ video outputs***
1 x Intel^® Thunderbolt™ 4 ports (USB Type-C^®) support DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year

Chassis Specifications:

General
Form Factor: 3U Rackmount
Color: Black
Material: Metal/Steel
Material Thickness: 1mm
Motherboard Compatibility: E-ATX
Slide Rails: Optional
Expansion
Full Height Slots: 8
Max Card Depth: 375mm"
Internal 2.5" Bays: 1
Front Ports
USB 3.2 Ports (Front): 2
USB Type-C (Front): 1
Cooling System
Maximum Fan Count: 3
Physical
Depth: 16.89"
Depth (Inches): 17
Width: 17"
Height: 5.22"
Shipping Box - Depth: 21"
Shipping Box - Width: 21"
Shipping Box - Height: 10"
Shipping Weight: 28lbs
Other Features
Features:
- Eight(8) full height PCIe card slot cutouts
- Maximum card height: 115mm
- Maximum card length with no fans / no AIO cooler: 400mm
- Maximum card length with 3x Noctua A12x25 fans: 375mm
- Maximum card length with Asetek 360mm AIO and Noctua A12x25 fans: 348mm
- Maximum card length with Asetek 360mm AIO and Push/Pull Noctua A12x25 fans: 322mm
- Case includes eight(8) non-vented PCIe slot filler blank brackets (Sliger Part Number: CXSC1020A)
Chassis Warranty: 1 Year
