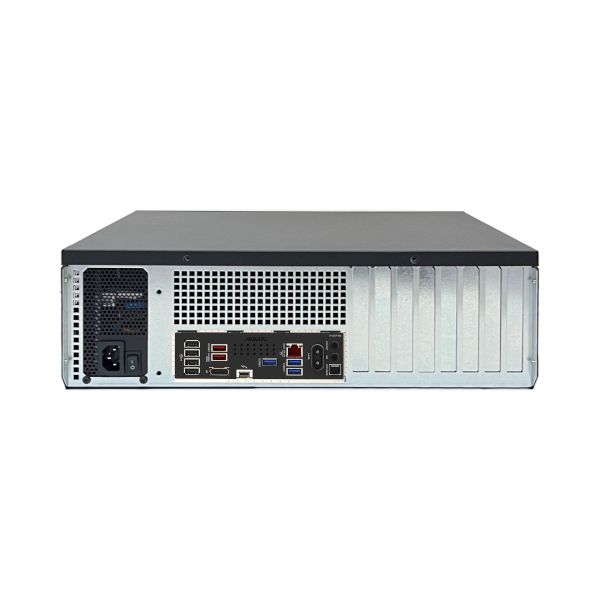

SL-3U-GZ890AE-SE
3U Liquid Cooled Rack Mount Industrial PC - Rackmount featuring Intel Z890 Chipset, Intel® Core™ Ultra Processors (Series 2), LGA1851, 1x 2.5GbE (10/100/1000/2500) LAN, WIFI,Up to 256GB RAM, 7x USB 2.0 Ports ( 3 Rear, 4 Internal Headers ), 5x USB 3.2 Gen 1 Ports ( 2 Front, 3 Rear ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers ), 3x Expansion Slots.
Type:
- 3U Liquid Cooled Rack Mount Industrial PC
- Depth: 16.89", Max Card Depth: 375mm"
Motherboard:
- Featuring Intel Z890 Chipset and Intel® Core™ Ultra Processors (Series 2), LGA1851 processor
- Full Height Slots:
3 - PCIe x16 - LAN: 1x Ports (2.5GbE (10/100/1000/2500))
- WiFi: Wi-Fi 7 + BT 5.4
- RAID: NVMe 0,1,5,10
- Video: HDMI + DisplayPort + Intel® Thunderbolt™ 4
- Audio: Realtek® ALC1200 Audio Codec
- Ports:
7x USB 2.0 Ports ( 3 Rear, 4 Internal Headers )
5x USB 3.2 Gen 1 Ports ( 2 Front, 3 Rear )
2x USB 3.2 Gen 2 Ports ( 2 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers )
1x Thunderbolt™ 4 (supports USB 4.0) Type-C Port (Rear)
See specifications for more ports - Operating Temperature: 5ºC to 35ºC (41ºF to 95ºF)
Also Included:
- Processor: Intel® Core™ Ultra 5 Processor 225 Processor - 10 Cores (6P + 4E), 20MB Intel® Smart Cache, 121W (PL2)
- Memory: 2 x 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 750W SFX Form Factor Auto-Switching Power Supply, Fully Modular, 80+ Gold
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: ATX
- Supported CPU
- Number of Processors: 1
- Processor Type: Intel® Core™ Ultra Processors (Series 2), LGA1851
- Chipset
- Chipset: Intel Z890 Chipset
- Memory
- Memory Type: DDR5 4800MHz
- Memory Type: Non-ECC
- DIMMS: 4
- Maximum Memory: 256GB
- On Board Audio
- Audio Type: Realtek® ALC1200 Audio Codec
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: HDMI + DisplayPort + Intel® Thunderbolt™ 4
- Display Port Out: 1
- HDMI Out: 1
- Thunderbolt™ video outputs: 1
- LAN
- LAN Ports: 1
- LAN Type: 2.5GbE (10/100/1000/2500)
- LAN Chipset: Realtek® 2.5GbE LAN
- Wireless LAN: Wi-Fi 7 + BT 5.4
- Drive Interface
- SATA III Ports (6GB): 4
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 3
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 4
- M.2 Slot #1 Specs
- 2280 - 22 mm x 80 mm.
- 22110 - 22 mm x 110 mm.
- M.2 Slot #2 Specs
- 2280 - 22 mm x 80 mm.
- 22110 - 22 mm x 110 mm.
- M.2 Slot #3 Specs
- 2280 - 22 mm x 80 mm.
- 22110 - 22 mm x 110 mm.
- M.2 Slot #4 Specs
- 2280 - 22 mm x 80 mm.
- 22110 - 22 mm x 110 mm.
- Rear IO
- USB 2.0 Ports (on IO): 3
- USB 3.2 Gen 1 Type A Ports (on IO): 3
- USB 3.2 Gen 2 Type A Ports (on IO): 2
- Thunderbolt™ 4 (supports USB 4.0) Type-C Port: 1
- Headers
- USB 2.0 Ports (on Headers): 4
- USB 3.2 Gen 1 Ports (on Headers): 2
- USB 3.2 Gen 2 Type-C (on Headers): 1
- FAN Connectors: 6
- Audio on Headers
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 5ºC to 35ºC (41ºF to 95ºF )
- High Humidity: 95%
- Low Humidity: 5%
- Operating System Support
- Windows 11 Home (64 Bit)
- Windows 11 Pro (64 Bit)
- Windows 11 Pro for WS (64 Bit)
- Windows 11 IoT 2024 LTSC Value
- Windows 11 IoT 2024 LTSC High End
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Features:
Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)Graphics
ntegrated Graphics Processor-Intel® HD Graphics support:
- 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs
When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
* Support for DisplayPort 2.1 version and HDCP 2.3
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz* Support for HDMI 1.4 version
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 2.1 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same timeStoreage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 3U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: E-ATX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 8
- Max Card Depth: 375mm"
- Internal 2.5" Bays: 1
- Front Ports
- USB 3.2 Ports (Front): 2
- USB Type-C (Front): 1
- Cooling System
- Maximum Fan Count: 3
- Physical
- Depth: 16.89"
- Depth (Inches): 17
- Width: 17"
- Height: 5.22"
- Shipping Box - Depth: 21"
- Shipping Box - Width: 21"
- Shipping Box - Height: 10"
- Shipping Weight: 28lbs
- Other Features
- Features:
- Eight(8) full height PCIe card slot cutouts
- Maximum card height: 115mm
- Maximum card length with no fans / no AIO cooler: 400mm
- Maximum card length with 3x Noctua A12x25 fans: 375mm
- Maximum card length with Asetek 360mm AIO and Noctua A12x25 fans: 348mm
- Maximum card length with Asetek 360mm AIO and Push/Pull Noctua A12x25 fans: 322mm
- Case includes eight(8) non-vented PCIe slot filler blank brackets (Sliger Part Number: CXSC1020A)
- Chassis Warranty: 1 Year
