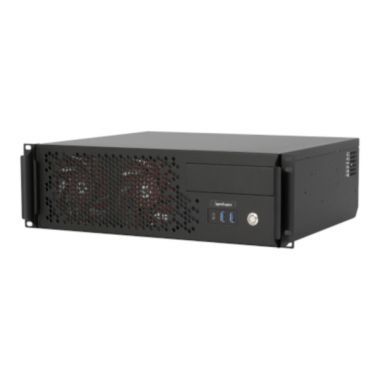

SL-3U-MTC741T-SU
3U Rack Mount Industrial PC - Rackmount featuring Intel C741 Chipset, Intel® Xeon® Scalable Processors 5th/4th Gen LGA-4677 (Socket E), CPU TDP supports up to 350W TDP, 2x 10GbE + 10GbE + IPMI LAN, 1x Serial, Up to 2048GB RAM, 2x USB 2.0 Ports ( 2 Rear ), 3x USB 3.2 Gen 1 Ports ( 1 Front, 2 Rear ), 5x Expansion Slots.
Type:
- 3U Rack Mount Industrial PC
- Depth: 17", Max Card Depth: 322mm"
Motherboard:
- Featuring Intel C741 Chipset and Intel® Xeon® Scalable Processors 5th/4th Gen LGA-4677 (Socket E), CPU TDP supports up to 350W TDP processor
- Full Height Slots:
4 - PCIe x16
1 - PCIe x8 - LAN: 2x Ports (10GbE + 10GbE + IPMI)
- RAID: 0,1,5,10 and NVMe 0,1 RAID Intel VROC
- Video: 1x VGA
- Audio: Realtek ALC888S HD Audio
- Ports:
2x USB 2.0 Ports ( 2 Rear )
3x USB 3.2 Gen 1 Ports ( 1 Front, 2 Rear )
1x COM Port (RS232 Rear)
See specifications for more ports - Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)
Also Included:
- Processor: 4th GEN Intel Xeon Bronze 3408U Octa-core (8 Core) 1.80 GHz Processor - 22.50 MB L3 Cache - 64-bit Processing - 1.90 GHz Overclocking Speed - Socket LGA-4677 - 125 W - 8 Threads
- Memory: 2 x 16GB DDR5 5600MHz ECC Registered RAM
- Hard Drive: 1TB PCIe 5.0 NVMe SSD M.2 7,150/6,300MB/s - Samsung 990 EVO Plus
- Power Supply: 700W SFX Form Factor Auto-Switching Power Supply, Fully Modular, 80+ Platinum
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: SSI CEB
- Supported CPU
- Number of Processors: 1
- Processor Type: Intel® Xeon® Scalable Processors 5th/4th Gen LGA-4677 (Socket E), CPU TDP supports up to 350W TDP
- Chipset
- Chipset: Intel C741 Chipset
- Memory
- Memory Type: DDR5 5600MHz ECCR
- Memory Type: ECC Registered
- DIMMS: 8
- Maximum Memory: 2048GB
- On Board Audio
- Audio Type: Realtek ALC888S HD Audio
- On Board Video
- Video Chipset: ASPEED AST2600 BMC
- Video on IO: 1x VGA
- VGA Port Out: 1
- LAN
- LAN Ports: 2
- LAN Type: 10GbE + 10GbE + IPMI
- LAN Chipset: Intel® X550 10GBase-T
- Second LAN Chipset: Intel® X550 10GBase-T
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 6
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 4
- PCI Express x8 Slots On Motherboard: 1
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- 2280 - 22 mm x 80 mm.

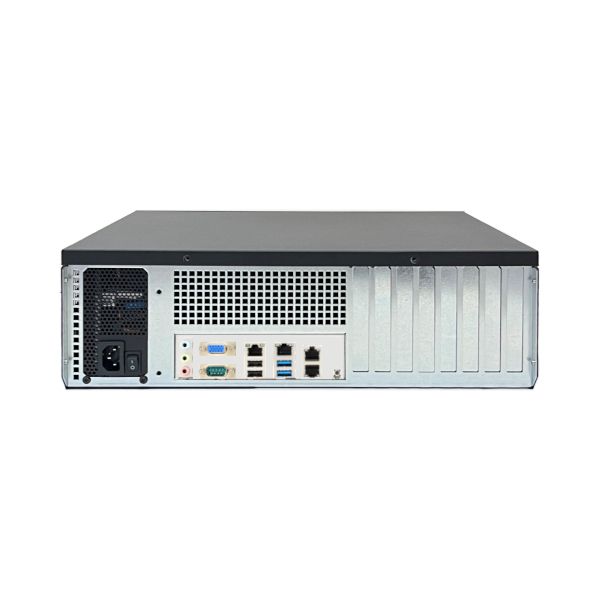

- Rear IO
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- Serial (Rear IO): 1
- Audio on IO
- Headers
- USB 3.2 Gen 1 Ports (on Headers): 1
- USB 2.0 Ports (Type A): 1
- FAN Connectors: 6
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
- High Humidity: 90%
- Low Humidity: 0%
- Operating System Support
- Windows 11 Pro (64 Bit)
- Windows 11 Pro for WS (64 Bit)
- Windows Server 2022 STD
- RED HAT Enterprise LINUX WORKSTATION STANDARD
- RED HAT Enterprise LINUX SERVER BASIC
- RED HAT Enterprise LINUX SERVER STANDARD
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- CE
- FCC
- Other Features
- Features:
Expansion Slots
(1) PCIe Gen.5 x8 slot
(4) PCIe Gen.5 x16 slots
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 3U Rackmount
- Front Changeable Air Filter
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: SSI EEB
- Slide Rails: Optional
- Expansion
- Full Height Slots: 8
- Max Card Depth: 322mm"
- External 5.25" Bays: 1
- Internal 2.5" Bays: 2
- Front Ports
- USB 3.2 Ports (Front): 2
- USB Type-C (Front): 1
- Cooling System
- Maximum Fan Count: 2
- Physical
- Depth: 17"
- Depth (Inches): 17
- Width: 17"
- Height: 5.22"
- Shipping Box - Depth: 20.50"
- Shipping Box - Width: 18.50"
- Shipping Box - Height: 11.50"
- Shipping Weight: 20lbs
- Other Features
- Features:
Expansion slots
Eight (8) Full height PCIe card slot cutouts
8x full height PCIe card slots
Maximum card height: 115mm (including power connectors)
Maximum card length with 2x 25mm thick front fans: 375mm
Maximum card length with Asetek 240mm AIO and 2x 25mm thick front fans: 347mm
Maximum card length with Asetek 240mm AIO and 4x 25mm thick front fans: 322mmStorage
One (1) 2.5" drive
Supports up to 1x 2.5" SSD under 5.25" bay
One (1) 2.5" drive up to 15mm thick
Supports up to 1x 2.5" SSD up to 7mm thick, or 1x 2.5" SSD up to 15mm thick
Mounting points located between motherboard IO shield and SFX PSU cutout - Chassis Warranty: 1 Year
- Power
- Remote Server Management:
