SL-4U-AH810M-HA
4U Rack Mount Industrial PC - Rackmount featuring Intel H810 Chipset, Intel® Core™ Ultra Processors (Series 2), LGA1851, 1x 1GbE (10/100/1000) LAN, WIFI,1x Serial, Up to 128GB RAM, 6x USB 2.0 Ports ( 2 Front, 4 Rear ), 2x USB 3.2 Gen 1 Ports ( 2 Internal Headers ), 5x USB 3.2 Gen 2 Ports ( 5 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers ), 2x Expansion Slots.
Type:
- 4U Rack Mount Industrial PC
- Depth: 17.70", Max Card Depth: 12.28", Locking Front Bezel
Motherboard:
- Featuring Intel H810 Chipset and Intel® Core™ Ultra Processors (Series 2), LGA1851 processor
- Full Height Slots:
1 - PCIe x16
1 - PCIe x1 - LAN: 1x Ports (1GbE (10/100/1000))
- WiFi: Wi-Fi 6 + BT 5.2
- Video: DisplayPort + HDMI
- Audio: Realtek® Audio CODEC
- Ports:
6x USB 2.0 Ports ( 2 Front, 4 Rear )
2x USB 3.2 Gen 1 Ports ( 2 Internal Headers )
5x USB 3.2 Gen 2 Ports ( 5 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers )
1x COM Port (RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)
Also Included:
- Processor: Intel® Core™ Ultra 5 Processor 225 Processor - 10 Cores (6P + 4E), 20MB Intel® Smart Cache, 121W (PL2)
- Memory: 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 600W Power Supply 80+ PLUS 120mm w/ C13 cord
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MicroATX
- Supported CPU
- Number of Processors: 1
- Processor Type: Intel® Core™ Ultra Processors (Series 2), LGA1851
- Chipset
- Chipset: Intel H810 Chipset
- Memory
- Memory Type: DDR5 4800MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 128GB
- On Board Audio
- Audio Type: Realtek® Audio CODEC
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: DisplayPort + HDMI
- Display Port Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Intel® GbE LAN chip
- Wireless LAN: Wi-Fi 6 + BT 5.2
- Drive Interface
- SATA III Ports (6GB): 4
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- PCI Express x1 Slots On Motherboard: 1
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 2
- M.2 Slot #1 Specs
- 2280 - 22 mm x 80 mm.
- M.2 Slot #2 Specs
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.

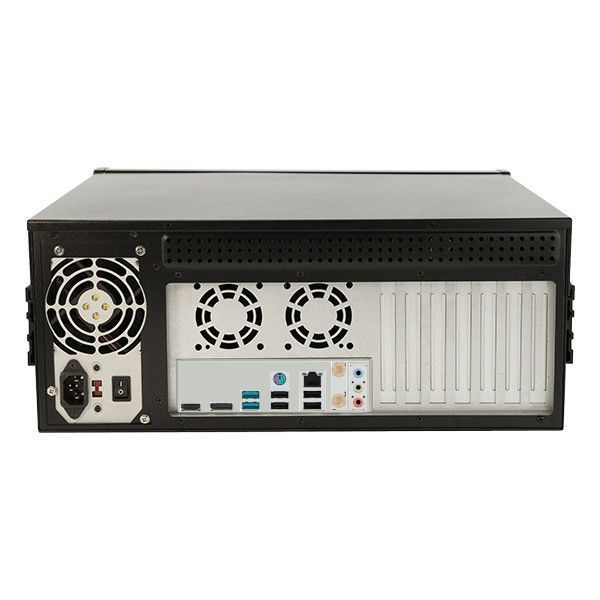

- Rear IO
- PS/2 Combo (Mouse/Keyboard)
- USB 2.0 Ports (on IO): 4
- USB 3.2 Gen 2 Type A Ports (on IO): 5
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 2
- USB 3.2 Gen 1 Ports (on Headers): 2
- USB 3.2 Gen 2 Type-C (on Headers): 1
- Serial (via Headers): 1
- FAN Connectors: 3
- Audio on Headers
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
- High Humidity: 95%
- Low Humidity: 5%
- Operating System Support
- Windows 11 Home (64 Bit)
- Windows 11 Pro (64 Bit)
- Windows 11 Pro for WS (64 Bit)
- Windows 11 IoT 2024 LTSC Value
- Windows 11 IoT 2024 LTSC High End
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Features:
Expansion Slots
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel® H810 Chipset
1 x PCIe 4.0 x1 slotStorage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H810 Chipset
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 4U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: ATX
- Redundant Power Supply Capable
- Slide Rails: Optional
- Expansion
- Full Height Slots: 7
- Max Card Depth: 12.28"
- External 5.25" Bays: 3
- Internal 3.5" Bays: 2
- External 3.5" Bays: 1
- Front Ports
- USB 2.0 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 2
- Included Fans: 1
- Physical
- Depth: 17.70"
- Depth (Inches): 17.7
- Width: 19"
- Height: 7"
- Shipping Box - Depth: 26"
- Shipping Box - Width: 23"
- Shipping Box - Height: 12"
- Shipping Weight: 45lbs
- Other Features
- Chassis Warranty: 1 Year
