SL-4U-MCX-C612-WA

A newer version of this item is available: SL-4U-MCX-C621DAI-WA

4U Rack Mount Server - Rackmount featuring Intel C612 Chipset, Xeon E5-2600v4 (LGA2011-3, ‘Broadwell’), 2x GB (10/100/1000) LAN, HDD or SSD, Up to 512GB RAM, 4x USB 2.0, 6x USB 3.0, 6x Expansion Slots, 600W Power Supply

Type:

  • 4U Rack Mount Server
  • Depth: 21.50", Max Card Depth: Full Length", Locking Front Bezel

Motherboard:

  • Featuring Intel C612 Chipset and Xeon E5-2600v4 (LGA2011-3, ‘Broadwell’) processor
  • Full Height Slots:
    3 - PCIe x16
    2 - PCIe x8
    1 - PCIe x4
  • LAN: 2x GB (10/100/1000)
  • RAID: 0,1,5,10 via LSI MegaRAID
  • Video: N/A
  • Audio: 7.1+2 Channel HD Audio by Realtek ALC888
  • Ports:
    4x USB 2.0 Ports ( 2 Rear, 2 via internal headers )
    6x USB 3.0 Ports ( 4 Rear, 2 via internal headers )
    See specifications for more ports
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

  • Processor: 2 x E5-2603 v4 - 1.7GHz Intel Xeon Six Cores CPU - 15MB Cache (no graphics on CPU) (85W)
  • Memory: 8 x 4GB DDR4 2133MHz ECC Registered RAM
  • Hard Drive: 1.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series
  • Power Supply: 600W Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

* Required Fields

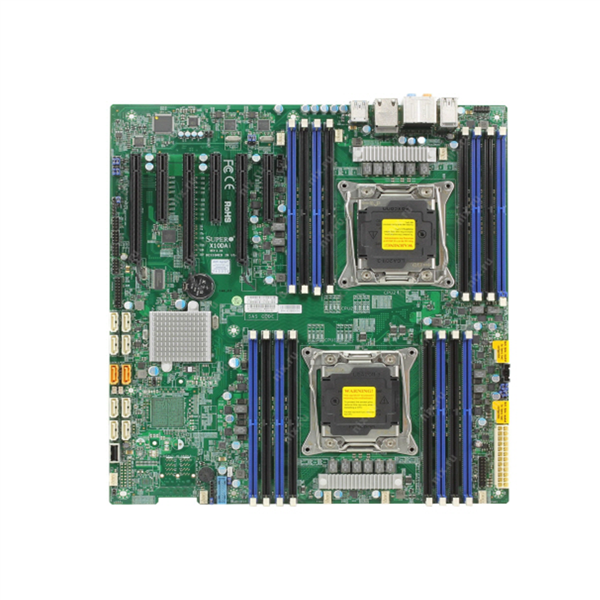

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: Extended ATX
  • Supported CPU
  • Number of Processors: 2
  • Processor Type: Xeon E5-2600v4 (LGA2011-3, ‘Broadwell’)
  • Chipset
  • Chipset: Intel C612 Chipset
  • Memory
  • Memory Type: DDR4 2133MHz ECCR
  • Memory Type: ECC Registered
  • DIMMS: 16
  • Maximum Memory: 512GB
  • On Board Audio
  • Audio Type: 7.1+2 Channel HD Audio by Realtek ALC888
  • On Board Video
  • Video Chipset: None
  • Video on IO: N/A
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i210AT
  • Second LAN Chipset: Intel® i210AT
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 10
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 3
  • PCI Express x8 Slots On Motherboard: 2
  • PCI Express x4 Slots On Motherboard: 1
  • mini PCIe

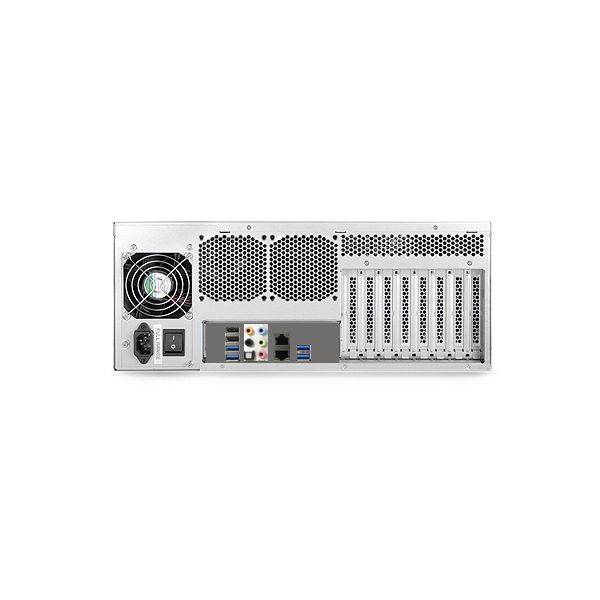

  • Rear IO
  • USB 2.0 Ports (on IO): 2
  • USB 3.0 Ports (on IO): 4
  • SPDIF Connector: 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • USB 3.0 Ports (on Headers): 2
  • USB 2.0 Ports (Type A): 1
  • FAN Connectors: 8
  • DOM
  • Chassis Intrusion
  • TPM Support: Via 2.0 Header
  • Management Features
  • NMI
  • Watch Dog
  • Environmental
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
  • High Humidity: 90%
  • Low Humidity: 8%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (64-bit)
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows 8.1 Pro (64-bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent
  • Windows 10 IoT Ent 2019 LTSC
  • Windows Server 2012
  • Windows Server 2016 STD
  • RED HAT Enterprise LINUX SERVER STANDARD
  • Ubuntu Server Edition
  • VMWare Compatible: Partially Supported
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:
    • 3 PCI-E 3.0 x16
    • 2 PCI-E 3.0 x8
    • 1 PCI-E 2.0 x4 (in x8) Slot

    (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers.)

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

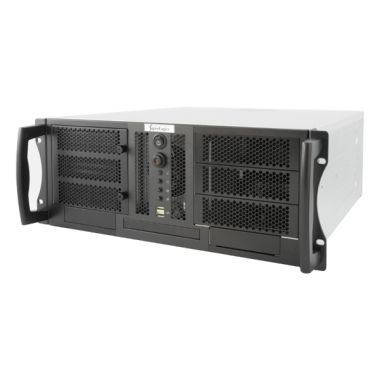

Chassis Specifications:

  • General
  • Form Factor: 4U Rackmount
  • Front Changeable Air Filter
  • Color: Black & Silver
  • Material: Metal/Steel
  • Material Thickness: 1.20mm
  • Motherboard Compatibility: SSI EEB
  • Redundant Power Supply Capable
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 7
  • Max Card Depth: Full Length"
  • External 5.25" Bays: 3
  • Internal 3.5" Bays: 4
  • External 3.5" Bays: 1
  • Serial Port Punchouts: 2
  • Front Ports
  • USB 3.0 Ports (Front): 2
  • Cooling System
  • Maximum Fan Count: 3
  • Included Fans: 1
  • Physical
  • Depth: 21.50"
  • Depth (Inches): 21.5
  • Width: 16.90"
  • Height: 7"
  • Shipping Box - Depth: 26"
  • Shipping Box - Width: 23"
  • Shipping Box - Height: 12"
  • Shipping Weight: 28lbs
  • Compliance of Component
  • RoHS
  • Other Features
  • Chassis Warranty: 1 Year
