SL-4U-MTC741T-DU
4U Rack Mount Industrial PC - Rackmount featuring Intel C741 Chipset, Intel® Xeon® Scalable Processors 5th/4th Gen, LGA4677 (Socket E), 2x 10GbE + 10GbE + IPMI LAN, 1x Serial, Up to 2048GB RAM, 2x USB 2.0 Ports ( 2 Rear ), 3x USB 3.2 Gen 1 Ports ( 1 Front, 2 Rear ), 5x Expansion Slots.
Type:
- 4U Rack Mount Industrial PC
- Depth: 19.89", Max Card Depth: 450mm (with 25mm thick front fans)"
Motherboard:
- Featuring Intel C741 Chipset and Intel® Xeon® Scalable Processors 5th/4th Gen, LGA4677 (Socket E) processor
- Full Height Slots:
4 - PCIe x16
1 - PCIe x8 - LAN: 2x Ports (10GbE + 10GbE + IPMI)
- RAID: 0,1,5,10 and NVMe 0,1 RAID Intel VROC
- Video: 1x VGA
- Audio: Realtek ALC888S HD Audio
- Ports:
2x USB 2.0 Ports ( 2 Rear )
3x USB 3.2 Gen 1 Ports ( 1 Front, 2 Rear )
1x COM Port (RS232 Rear)
See specifications for more ports - Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)
Also Included:
- Processor: 4th GEN Intel Xeon Bronze 3408U Octa-core (8 Core) 1.80 GHz Processor - 22.50 MB L3 Cache - 64-bit Processing - 1.90 GHz Overclocking Speed - Socket LGA-4677 - 125 W - 8 Threads
- Memory: 2 x 16GB DDR5 5600MHz ECC Registered RAM
- Power Supply: 650W ATX 3.1 and PCIe Gen 5 Active PFC Power Supply - 80+ Gold Certified
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: SSI CEB
- Supported CPU
- Number of Processors: 1
- Processor Type: Intel® Xeon® Scalable Processors 5th/4th Gen, LGA4677 (Socket E)
- Chipset
- Chipset: Intel C741 Chipset
- Memory
- Memory Type: DDR5 5600MHz ECCR
- Memory Type: ECC Registered
- DIMMS: 8
- Maximum Memory: 2048GB
- On Board Audio
- Audio Type: Realtek ALC888S HD Audio
- On Board Video
- Video Chipset: ASPEED AST2600 BMC
- Video on IO: 1x VGA
- VGA Port Out: 1
- LAN
- LAN Ports: 2
- LAN Type and IPMI: 10GbE + 10GbE + IPMI
- LAN Chipset: Intel® X550 10GBase-T
- Second LAN Chipset: Intel® X550 10GBase-T
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 6
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 4
- PCI Express x8 Slots On Motherboard: 1
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- 2280 - 22 mm x 80 mm.

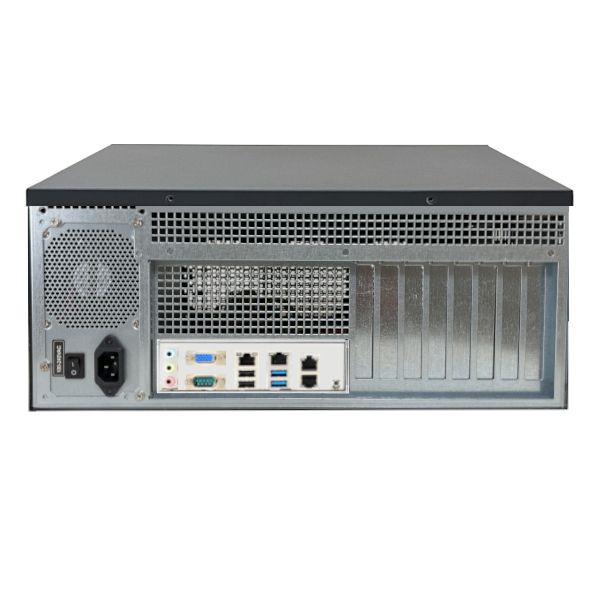

- Rear IO
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- Serial (Rear IO): 1
- Audio on IO
- Headers
- USB 3.2 Gen 1 Ports (on Headers): 1
- USB 2.0 Ports (Type A): 1
- FAN Connectors: 6
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
- High Humidity: 90%
- Low Humidity: 0%
- Operating System Support
- Windows 11 Pro (64 Bit)
- Windows 11 Pro for WS (64 Bit)
- Windows Server 2022 STD
- RED HAT Enterprise LINUX SERVER BASIC
- RED HAT Enterprise LINUX WORKSTATION STANDARD
- RED HAT Enterprise LINUX SERVER STANDARD
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- CE
- FCC
- Other Features
- Features:
Expansion Slots
(1) PCIe Gen.5 x8 slot
(4) PCIe Gen.5 x16 slots
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 4U Rackmount
- Front Changeable Air Filter
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: SSI EEB
- Redundant Power Supply Capable
- Slide Rails: Optional
- Expansion
- Full Height Slots: 8
- Max Card Depth: 450mm (with 25mm thick front fans)"
- External 5.25" Bays: 1
- Internal 3.5" Bays: 3
- Internal 2.5" Bays: 8
- Front Ports
- USB 3.2 Ports (Front): 2
- USB Type-C (Front): 1
- Cooling System
- Maximum Fan Count: 3
- Physical
- Depth: 19.89"
- Depth (Inches): Click Available Downloads Tab > Mechanical Drawings.
- Width: 17"
- Height: 6.96"
- Shipping Box - Depth: 26"
- Shipping Box - Width: 21"
- Shipping Box - Height: 11"
- Shipping Weight: 30lbs
- Other Features
- Features:
- 1x 5.25" bay filler provides 2x 2.5" SSD and 1x 3.5" HDD mount
- Using the 5.25" filler panels prevents any 5.25" devices from being installed!
- Internal mounting bracket with configuration options for:
- 3x 3.5" HDD
- or
- 8x 2.5" SSD
- or
- 2x 3.5" HDD and 3x 2.5" SSD
- or
- 1x 3.5" HDD and 5x 2.5" SSD
- Chassis Warranty: 1 Year
