SL-4U-SBC-Q77-HA This item is no longer available.

A newer version of this item is available: SL-4U-SBC-Q370-HA

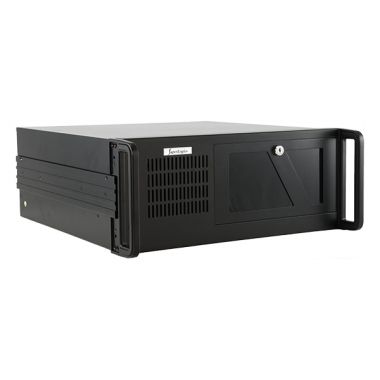

4U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q2 2019) with Intel Q77 Chipset, 3rd Gen Core i3/i5/i7 (LGA1155, 'Ivy Bridge'), 2x 1GbE (10/100/1000) LAN, 2x Serial, Up to 16GB RAM, 10x USB 2.0 Ports ( 2 Front, 8 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers ), 12x Expansion Slots.



Type:

  • 4U Rack Mount Industrial PC
  • Depth: 17.70", Max Card Depth: 12.28", Locking Front Bezel

Motherboard:

  • Featuring Intel Q77 Chipset and 3rd Gen Core i3/i5/i7 (LGA1155, 'Ivy Bridge') processor
  • Long Production Cycle Motherboard (Through Q2 2019)
  • Full Height Slots:
    1 - PCIe x16
    3 - PCIe x1
    8 - PCI
  • LAN: 2x Ports (1GbE (10/100/1000))
  • RAID: 0,1,5,10
  • Video: VGA + DVI-D
  • Audio: Onboard Audio
  • Ports:
    10x USB 2.0 Ports ( 2 Front, 8 Internal Headers )
    4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers )
    2x COM Port (1 RS232 Internal Headers, 1 RS232/422/485 Internal Headers)
    1x Parallel Port (Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Processor: G1620 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (55W) (ERM)
  • Memory: 4GB DDR3 1600MHz RAM
  • Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
  • Power Supply: 400W Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

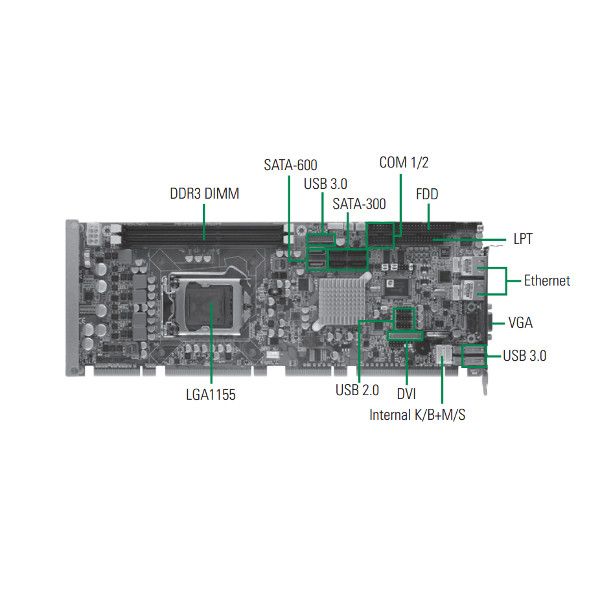

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: Single Board Computer (SBC)
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q2 2019
  • PICMG: 1.3
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 3rd Gen Core i3/i5/i7 (LGA1155, 'Ivy Bridge')
  • Chipset
  • Chipset: Intel Q77 Chipset
  • Memory
  • Memory Type: DDR3 1600MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 16GB
  • On Board Audio
  • Audio Type: Onboard Audio
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA + DVI-D
  • VGA Port Out: 1
  • DVI-D Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: 1GbE (10/100/1000)
  • LAN Chipset: Intel® 82574L
  • Second LAN Chipset: Intel® 82579LM
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 4
  • SATA III Ports (6GB): 2
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • Rear IO
  • USB 3.0 Ports (on IO): 2
  • Headers
  • USB 2.0 Ports (on Headers): 10
  • USB 3.0 Ports (on Headers): 2
  • Serial (via Headers): 1
  • Serial 232/422/485 Ports: 1
  • Parallel Ports: 1
  • FAN Connectors: 2
  • Floppy Connectors: 1
  • Audio on Headers
  • PS/2 Combo (Mouse/Keyboard) on Headers
  • Management Features
  • Watch Dog
  • Environmental
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
  • High Humidity: 95%
  • Low Humidity: 10%
  • Operating System Support
  • Windows XP Pro (32-bit)
  • OS-WIN-7 Pro to XP Pro 32Bit
  • Windows Embedded 09
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Value
  • Windows 10 IoT Ent
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • Windows Server 2012
  • RED HAT Enterprise LINUX SERVER STANDARD
  • LINUX Ubuntu Desktop
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • Compliance of Component
  • CE
  • Other Features
  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 4U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: 14-Slot SBC
  • Redundant Power Supply Capable
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 14
  • Max Card Depth: 12.28"
  • External 5.25" Bays: 3
  • Internal 3.5" Bays: 2
  • External 3.5" Bays: 1
  • Front Ports
  • USB 2.0 Ports (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Included Fans: 1
  • Physical
  • Depth: 17.70"
  • Depth (Inches): 17.7
  • Width: 19"
  • Height: 7"
  • Shipping Box - Depth: 26"
  • Shipping Box - Width: 23"
  • Shipping Box - Height: 12"
  • Shipping Weight: 45lbs
  • Other Features
  • Chassis Warranty: 1 Year
