SL-DK-i3-AZ370A-IF This item is no longer available.

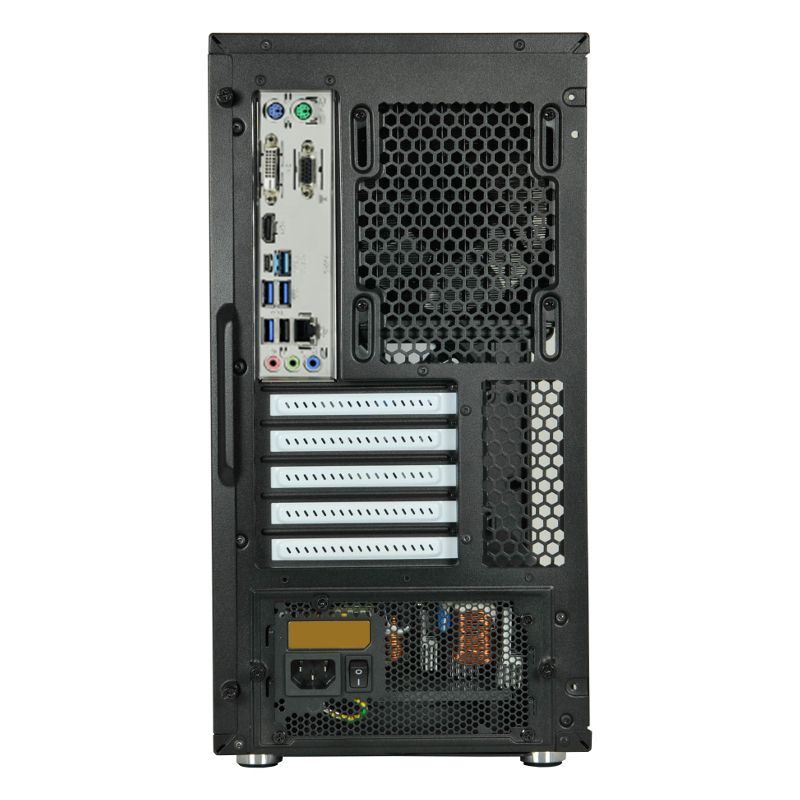

Tower PC - Desktop featuring Intel Z370 Chipset, 8th and 9th Gen Core i7/i5/i3 (LGA1151), 1x GB (10/100/1000) LAN, HDD or SSD, 1x Serial, Up to 64GB RAM, 5x USB 2.0, 8x USB 3.1, 6x Expansion Slots, 350W ATX-form factor power supply

Type:

  • Tower PC
  • Dimension: 435mm x 190mm x 423mm, Locking Front Bezel

Motherboard:

  • Featuring Intel Z370 Chipset and 8th and 9th Gen Core i7/i5/i3 (LGA1151) processor
  • Full Height Slots:
    2 - PCIe x16
    3 - PCIe x1
    1 - PCI
  • LAN: 1x GB (10/100/1000)
  • RAID: 0,1,5,10
  • Video: VGA + DVI-D + HDMI
  • Audio: 7.1+2 Channel HD Audio by Realtek ALC892
  • Ports:
    5x USB 2.0 Ports ( 2 Front3 via internal headers )
    8x USB 3.1 Ports ( 6 Rear, 2 via internal headers )
    1x COM Port (Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Processor: i3-8100 - 3.6GHz Intel Quad-Core (4 cores) CPU - 6MB Cache, UHD Graphics 630 (65W)
  • Memory: 4GB DDR4 2666MHz RAM
  • Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
  • Power Supply: 350W ATX-form factor power supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 8th and 9th Gen Core i7/i5/i3 (LGA1151)
  • Chipset
  • Chipset: Intel Z370 Chipset
  • Memory
  • Memory Type: DDR4 2133MHz
  • Memory Type: Non-ECC
  • DIMMS: 4
  • Maximum Memory: 64GB
  • On Board Audio
  • Audio Type: 7.1+2 Channel HD Audio by Realtek ALC892
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA + DVI-D + HDMI
  • VGA Port Out: 1
  • DVI-D Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i219V
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 6
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 2
  • PCI Express x1 Slots On Motherboard: 3
  • PCI Slots (Conventional 32-Bit): 1
  • mini PCIe
  • M.2
  • M.2 NVMe: 2
  • M.2
  • SATA
  • PCIe
  • 30mm
  • 42mm
  • 60mm
  • 80mm
  • M.2 (2)
  • SATA
  • PCIe
  • 30mm
  • 42mm
  • 60mm
  • 80mm
  • Rear IO
  • PS/2 Combo (Mouse/Keyboard)
  • USB 3.2 Gen 1 Type A Ports (on IO): 5
  • USB 3.2 Gen 1 Type C Ports (on I/O): 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 5
  • USB 3.1 Ports Gen 1 (on Headers): 2
  • Thunderbolt 3 via Header: 1
  • Serial (via Headers): 1
  • FAN Connectors: 4
  • Audio on Headers
  • Chassis Intrusion
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Value
  • Windows 10 IoT Ent
  • LINUX Ubuntu Desktop
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*
    3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
    1 x PCI Slot
    Supports AMD Quad CrossFireX™ and CrossFireX™
    1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

    If PCIE5 slot or PCI slot is occupied, PCIE4 slot will run at x2 mode.

    2 x Ultra M.2 Sockets (M2_1 and M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    *If M2_1 is occupied by a SATA-type M.2 device, SATA_5 will be disabled.
    If M2_2 is occupied by a SATA-type M.2 device, SATA_0 will be disabled.

    **Supports Intel® Optane™ Technology
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: Mini Tower
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Expansion
  • Full Height Slots: 7
  • Max Card Depth: 10""
  • External 5.25" Bays: 3
  • Internal 3.5" Bays: 3
  • External 3.5" Bays: 2
  • Internal 2.5" Bays: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Front Audio Ports: 1
  • Cooling System
  • Maximum Fan Count: 1
  • Included Fans: 1
  • Physical
  • Depth: 435mm
  • Width: 190mm
  • Height: 423mm
  • Shipping Box - Depth: 8.90"
  • Shipping Box - Width: 20.50"
  • Shipping Box - Height: 19.20"
  • Shipping Weight: 25lbs
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Built-in Chassis Power Supply: ATX 12V 350W Power Supply
