SL-DK-MTC741T-FW

Name: SL-DK-MTC741T-FW
SKU: SL-DK-MTC741T-FW
Price: 3345.00 USD

Tower Server - Desktop featuring Intel C741 Chipset, Intel® Xeon® Scalable Processors 5th/4th Gen LGA-4677 (Socket E), CPU TDP supports up to 350W TDP, 2x 10GbE + 10GbE + IPMI LAN, 1x Serial, Up to 2048GB RAM, 2x USB 2.0 Ports ( 2 Rear ), 3x USB 3.2 Gen 1 Ports ( 1 Front, 2 Rear ), 5x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

Tower Server
Dimension: 547mm x 240mm x 475mm

Motherboard:

Featuring Intel C741 Chipset and Intel® Xeon® Scalable Processors 5th/4th Gen LGA-4677 (Socket E), CPU TDP supports up to 350W TDP processor
Full Height Slots:
4 - PCIe x16
1 - PCIe x8
LAN: 2x Ports (10GbE + 10GbE + IPMI)
RAID: 0,1,5,10 and NVMe 0,1 RAID Intel VROC
Video: 1x VGA
Audio: Realtek ALC888S HD Audio
Ports:
2x USB 2.0 Ports ( 2 Rear )
3x USB 3.2 Gen 1 Ports ( 1 Front, 2 Rear )
1x COM Port (RS232 Rear)
See specifications for more ports
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

Processor: 4th GEN Intel Xeon Bronze 3408U Octa-core (8 Core) 1.80 GHz Processor - 22.50 MB L3 Cache - 64-bit Processing - 1.90 GHz Overclocking Speed - Socket LGA-4677 - 125 W - 8 Threads
Memory: 2 x 16GB DDR5 5600MHz ECC Registered RAM
Hard Drive: 1TB PCIe 5.0 NVMe SSD M.2 7,150/6,300MB/s - Samsung 990 EVO Plus
Power Supply: 650W ATX 3.1 and PCIe Gen 5 Active PFC Power Supply - 80+ Gold Certified
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

4th GEN Intel Xeon Bronze 3408U Octa-core (8 Core) 1.80 GHz Processor - 22.50 MB L3 Cache - 64-bit Processing - 1.90 GHz Overclocking Speed - Socket L show $675.00

5th GEN Intel Xeon Silver 4510 Processor (30MB Cache, 2.4 GHz, up to 4.1GHz) 12 Cores, 150W show $883.00

5th GEN Intel Xeon Gold 6538Y+ Dotriaconta-core (32 Core) 2.20 GHz Processor Upgrade - 60 MB L3 Cache - 64 MB L2 Cache - 64-bit Processing - 4 GHz Ove show $4,050.00

5th GEN Intel Xeon Platinum 8592+ Tetrahexaconta-core (64 Core) 1.90 GHz Processor - 320 MB L3 Cache - 64-bit Processing - 3.90 GHz Overclocking Speed show $11,933.00

Memory

x 16GB DDR5 5600MHz ECC Registered RAM show $242.00

x 32GB DDR5 5600MHz ECC Registered RAM show $405.00

x 64GB DDR5 5600MHz ECC Registered RAM show $687.00

x 96GB DDR5 5600MHz ECC Registered RAM show $1,063.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

5.25" CD/DVD Burner show $74.00

5.25" Blu-Ray 16x Readable & ReWriteable Drive show $194.00

Additional Hard Drives

1TB PCIe 5.0 NVMe SSD M.2 7,150/6,300MB/s - Samsung 990 EVO Plus show $126.00 each

2TB PCIe 5.0 NVMe SSD M.2 7,250/6,300MB/s - Samsung 990 EVO Plus show $199.00 each

4TB PCIe 5.0 NVMe SSD M.2 7,250/6,300MB/s - Samsung 990 EVO Plus show $345.00 each

1TB PCIe 5.0 NVMe SSD M.2 14,700/13,300MB/s - Samsung 9100 PRO show $215.00 each

2TB PCIe 5.0 NVMe SSD M.2 14,700/13,400MB/s - Samsung 9100 PRO show $290.00 each

4TB PCIe 5.0 NVMe SSD M.2 14,800/13,400MB/s - Samsung 9100 PRO show $578.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $91.00 each

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $158.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $239.00 each

4TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $388.00 each

Raid Controller

Intel VROC Upgrade Key (Standard) - RAID 0, 1, 10, for NVMe SSDs connected directly to the CPU. show $185.00 each

Intel VROC Upgrade Key (Premium) - RAID 0, 1, 5, 10, for NVMe SSDs connected directly to the CPU. show $371.00 each

Configure NVMe RAID 0 (Striping) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE and M.2 Adapter. show $0.00 each

Configure NVMe RAID 1 (Mirroring) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE and M.2 Adapter show $0.00 each

Configure RAID 0 (Striping) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 1 (Mirroring) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 10 (Striping across Mirrors) - REQUIRES 4 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Management Module

None show Included

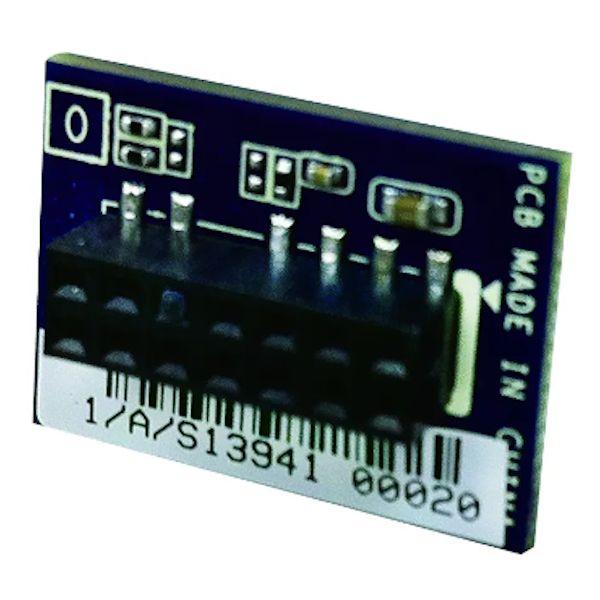

TPM 2.0 Module - (WIndows 11 Requires this TPM) show $60.00

Plug-In Boards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile show $43.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP mode - 1-Port, Full Height show $61.00 each

4-Port USB 3.2 Gen 1 PCIe Card - PCIe x1, Full-Height Only show $43.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

Networking

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $260.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $230.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $180.00 each

PCIe x8 Dual Port Intel Ethernet Converged Network Adapter X520-DA2 - Copper SFP+ Direct Attached - Lo show $580.00 each

PCIe x8 Dual Port Intel Ethernet Converged Network Adapter X520-SR2 - Optical Fiber - Low-profile/Full show $783.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $712.00 each

PCIe x8 Dual Port SFP+ Direct Attached Twinaxial Cabling Intel X710-DA2 10GbE Network Adapter. - Low P show $454.00 each

PCIe x8 Quad Port ..SFP+ Direct Attached Twin Axial Cabling Intel X710-DA4 10GbE Network Adapter. - Fu show $681.00 each

Power Supply

650W ATX 3.1 and PCIe Gen 5 Active PFC Power Supply - 80+ Gold Certified show $160.00

850W ATX12V / EPS12V Full Modular Power Supply - 80+ Gold Certified show $228.00

1200W 80 PLUS GOLD ATX3.0 PCIE5 Modular Power Supply show $408.00

700W 80 PLUS GOLD Hot Swappable Redundant Digital Power Supply show $900.00

900W 80 PLUS GOLD Hot Swappable Redundant Digital Power Supply show $1,116.00

Operating System

None show Included

Microsoft Windows 11 Professional, 64-Bit show $189.00

Microsoft Windows 11 Pro For Workstation, 64-Bit show $389.00

Microsoft Windows Server 2022 Standard - License and Media, No CALs - up to 16 Cores (additional licenses required for more than 16 CPU cores) show $1,064.00

Ubuntu Desktop Edition Standard (Latest LTS Compatible). Community Support Only. Installation CD Not Included. show $49.00

Red Hat Enterprise Linux Server Entry Level - Self-Support Subscription - 1 Year - 1-2 Sockets show $410.00

RED HAT Enterprise LINUX SERVER show $850.00

Red Hat Enterprise Linux WS - Standard Subscription - 1 Year - 1-2 Sockets show $350.00

Monitors

Asus VP229Q 21.5" Full HD LED LCD Monitor - 16:9 - Black - 22" Class - In-plane Switching (IPS) Techno show $173.00 each

23.8" 16:9 75 Hz Adaptive-Sync IPS Monitor show $194.00 each

27" Monitor, 1080P Full HD, 75Hz, IPS, Adaptive-Sync, Eye Care, HDMI DisplayPort VGA USB Hub, Frameles show $229.00 each

29" HDR10 IPS Full HD UltraWide™ Monitor (2560x1080) with AMD FreeSync™, MAXXAudio®, Flic show $275.00 each

32" 4K UHD 3840 x 2160 Monitor Featuring Wide Color Gamut and FreeSync show $412.00 each

34" Ultra-Wide Freesync HDR Gaming Monitor 75Hz 1440P Eye Care DisplayPort HDMI,Black show $518.00 each

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $118.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $178.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $138.00 each

USB Keyboard/Mouse - Waterproof, NEMA4 show $502.00 each

USB Keyboard/Mouse - Waterproof, IP67/NEMA4x show $579.00 each

External Power

None show Included

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & Serial portsSpecial Order Item, Delivery approximately 1 weeks. show $626.00

* Required Fields

Technical Specifications

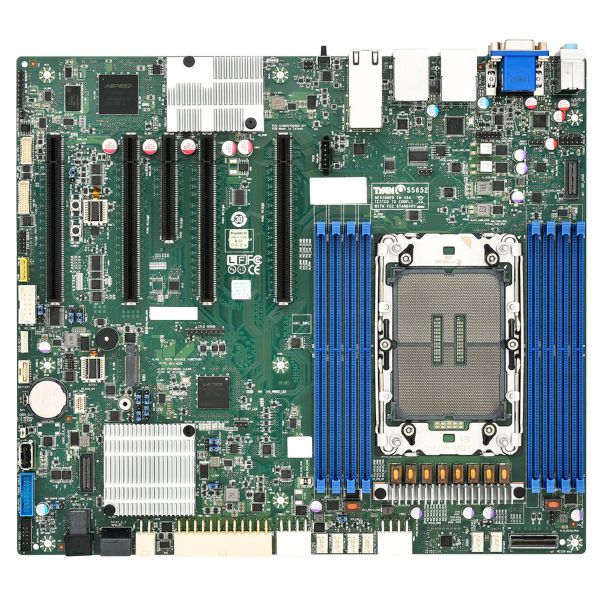

MotherBoard Specifications:

Motherboard Model
Motherboard Type: SSI CEB
Supported CPU
Number of Processors: 1
Processor Type: Intel® Xeon® Scalable Processors 5th/4th Gen LGA-4677 (Socket E), CPU TDP supports up to 350W TDP
Chipset
Chipset: Intel C741 Chipset
Memory
Memory Type: DDR5 5600MHz ECCR
Memory Type: ECC Registered
DIMMS: 8
Maximum Memory: 2048GB
On Board Audio
Audio Type: Realtek ALC888S HD Audio
On Board Video
Video Chipset: ASPEED AST2600 BMC
Video on IO: 1x VGA
VGA Port Out: 1
LAN
LAN Ports: 2
LAN Type: 10GbE + 10GbE + IPMI
LAN Chipset: Intel® X550 10GBase-T
Second LAN Chipset: Intel® X550 10GBase-T
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 6
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 4
PCI Express x8 Slots On Motherboard: 1
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 1
M.2 Slot #1 Specs
2280 - 22 mm x 80 mm.

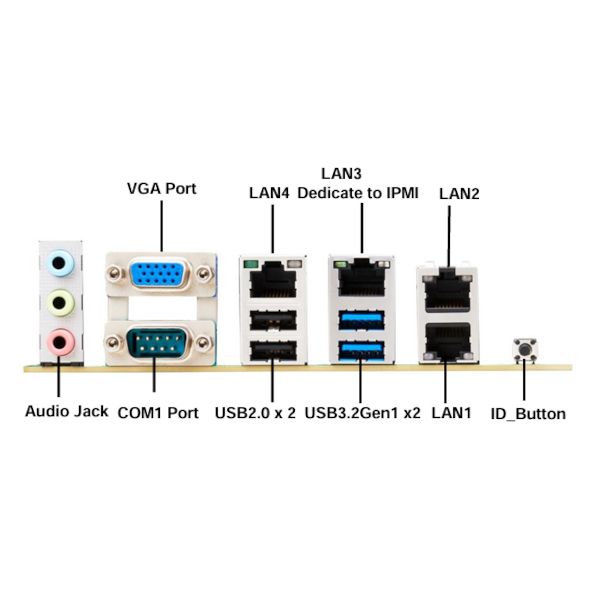

Rear IO
USB 2.0 Ports (on IO): 2
USB 3.2 Gen 1 Type A Ports (on IO): 2
Serial (Rear IO): 1
Audio on IO
Headers
USB 3.2 Gen 1 Ports (on Headers): 1
USB 2.0 Ports (Type A): 1
FAN Connectors: 6
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
High Humidity: 90%
Low Humidity: 0%
Operating System Support
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows Server 2022 STD
RED HAT Enterprise LINUX WORKSTATION STANDARD
RED HAT Enterprise LINUX SERVER BASIC
RED HAT Enterprise LINUX SERVER STANDARD
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
CE
FCC
Other Features
Features:
Expansion Slots

(1) PCIe Gen.5 x8 slot

(4) PCIe Gen.5 x16 slots

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year

Chassis Specifications:

General
Form Factor: Full Tower
Front Facing I/O
Front Changeable Air Filter
Color: Black
Material: Metal/Steel
Material Thickness: 1mm
Motherboard Compatibility: E-ATX
Expansion
Full Height Slots: 7
Max Card Depth: Storage layout: 315 mm - Open layout: 491 mm (467 mm w/ front fan)"
External 5.25" Bays: 1
Internal 3.5" Bays: 6
Internal 2.5" Bays: 2
Front Ports
USB 3.2 Ports (Front): 5
Front Audio Ports: 1
Cooling System
Maximum Fan Count: 9
Included Fans: 4
Physical
Depth: 547mm
Depth (Inches): 21.5
Width: 240mm
Height: 475mm
Shipping Box - Depth: 558mm
Shipping Box - Width: 363mm
Shipping Box - Height: 641mm
Shipping Weight: 36lbs
Other Features
Chassis Warranty: 1 Year
