SL-EB-B860A-S15

Name: SL-EB-B860A-S15
SKU: SL-EB-B860A-S15

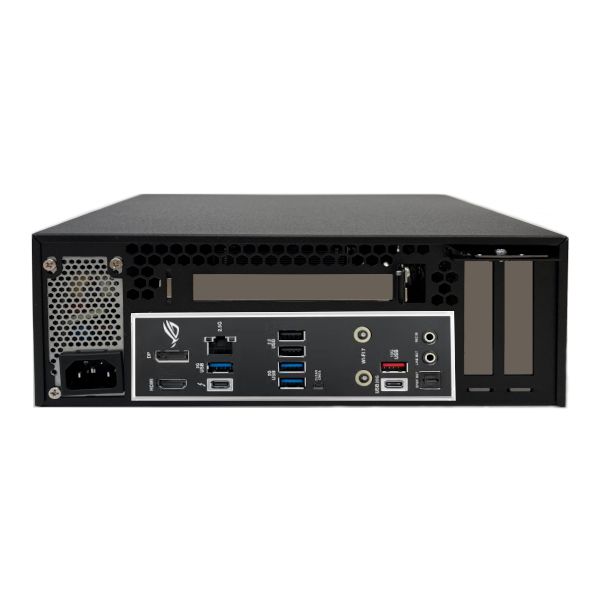

Microbox PC - Embedded PC featuringIntel B860 Chipset, Intel® Core™ Ultra Processors (Series 2), LGA1851, 1x 2.5GbE (10/100/1000/2500) LAN, WIFI, Up to 128GB RAM, 4x USB 2.0 Ports ( 2 Front, 2 Rear ), 5x USB 3.2 Gen 1 Ports ( 3 Rear, 2 Internal Headers ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers ), 1x Expansion Slots, Dimensions of Enclosure: 9.45"L x 10.35"W x 3.74"H.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

Microbox PC
Dimension: 9.45" x 10.35" x 3.74"

Motherboard:

Featuring Intel B860 Chipset and Intel® Core™ Ultra Processors (Series 2), LGA1851 processor
Full Height Slots:
1 - PCIe x16
LAN: 1x Ports (2.5GbE (10/100/1000/2500))
WiFi: Wi-Fi 7 + BT 5.4
Video: HDMI + DisplayPort + Intel® Thunderbolt™ 4
Audio: Realtek ALC1220P Surround Sound High Definition Audio CODEC
Ports:
4x USB 2.0 Ports ( 2 Front, 2 Rear )
5x USB 3.2 Gen 1 Ports ( 3 Rear, 2 Internal Headers )
1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers )
1x Thunderbolt™ 4 (supports USB 4.0) Type-C Port (Rear)
See specifications for more ports
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

Processor: Intel® Core™ Ultra 5 Processor 245K Processor - 14 Cores (6P + 8E), 24MB Intel® Smart Cache, 159W (PL2)
Memory: 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM
Hard Drive: 1TB PCIe 5.0 NVMe SSD M.2 7,150/6,300MB/s - Samsung 990 EVO Plus
Power Supply: 400W 1U FLEX ATX Power Supply - 80+ Gold Efficient
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Technical Specifications

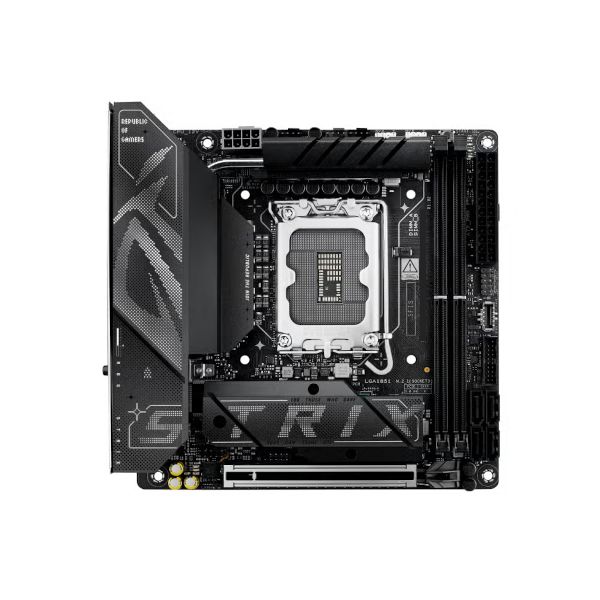

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MiniITX
Supported CPU
Number of Processors: 1
Processor Type: Intel® Core™ Ultra Processors (Series 2), LGA1851
Chipset
Chipset: Intel B860 Chipset
Memory
Memory Type: DDR5 4800MHz
Memory Type: Non-ECC
DIMMS: 2
Maximum Memory: 128GB
On Board Audio
Audio Type: Realtek ALC1220P Surround Sound High Definition Audio CODEC
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: HDMI + DisplayPort + Intel® Thunderbolt™ 4
Display Port Out: 1
HDMI Out: 1
Thunderbolt™ video outputs: 1
LAN
LAN Ports: 1
LAN Type: 2.5GbE (10/100/1000/2500)
LAN Chipset: Intel® 2.5Gb Ethernet
Wireless LAN: Wi-Fi 7 + BT 5.4
Drive Interface
SATA III Ports (6GB): 4
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 1
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
M.2 Slot #2 Specs
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
None

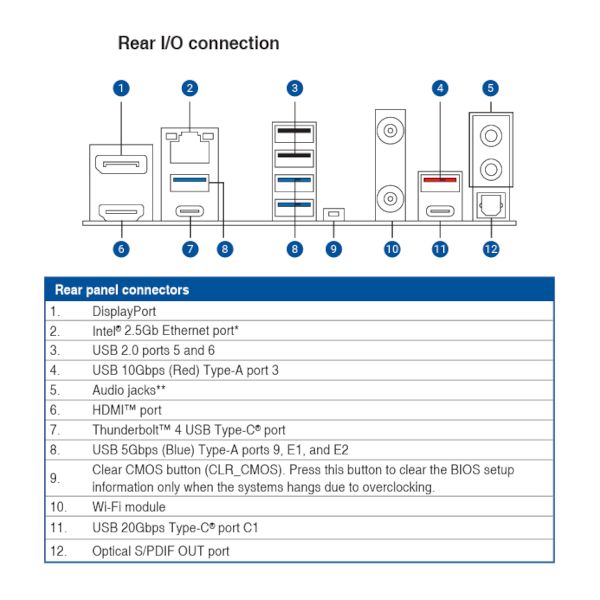

Rear IO
USB 2.0 Ports (on IO): 2
USB 3.2 Gen 1 Type A Ports (on IO): 3
Thunderbolt™ 4 (supports USB 4.0) Type-C Port: 1
SPDIF Connector: 1
Audio on IO
Headers
USB 2.0 Ports (on Headers): 2
USB 3.2 Gen 1 Ports (on Headers): 2
USB 3.2 Gen 2 Type-C (on Headers): 1
FAN Connectors: 3
Audio on Headers
TPM Support: TPM via Intel Platform Trust Technology
Environmental
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
High Humidity: 95%
Low Humidity: 10%
Operating System Support
Windows 11 Home (64 Bit)
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC High End
Compliance of Component
CE
RoHS
FCC
Other Features
Features:
Expansion Slot

1 x PCIe 5.0 x16 slot

Total supports 2 x M.2 slots and 4 x SATA
6Gb/s ports*
Intel^® Core™ Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2260/2280
(supports PCIe 5.0 x4 mode)
Intel^® B860 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)

Graphics

1 x DisplayPort**
1 x HDMI™ port***
1 x Intel^® Thunderbolt™ 4 supports
DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between
CPU types.

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers
Motherboard Warranty: 1 Year
