SL-EB-i3-AZ370I-S17 This item is no longer available.

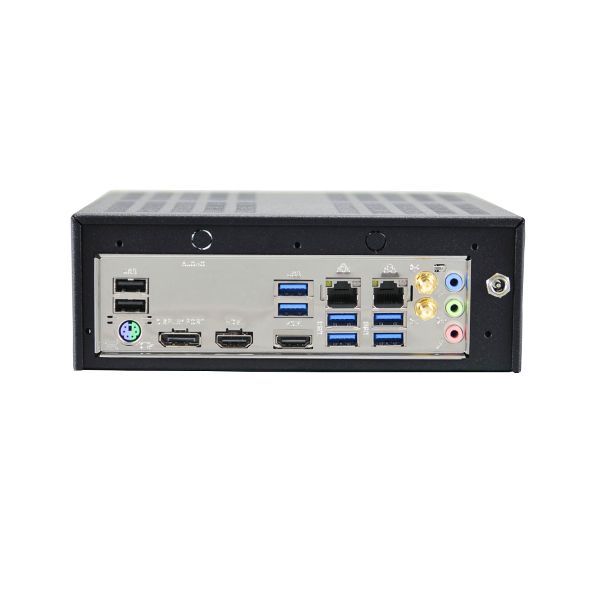

Microbox PC - Embedded PC featuringIntel Z370 Chipset, 8th and 9th Gen Core i7/i5/i3 (LGA1151), 2x GB (10/100/1000) LAN, WIFI, Up to 32GB RAM, 4x USB 2.0 Ports ( 2 Front, 2 Rear ), 8x USB 3.2 Gen 1 Ports ( 6 Rear, 2 Internal Headers ), Dimensions of Enclosure: 8.27"L x 7.60"W x 2.60"H, Power Supply AC/DC Power Adapter Included.
Type:
- Microbox PC
- Dimension: 8.27" x 7.60" x 2.60"
Motherboard:
- Featuring Intel Z370 Chipset and 8th and 9th Gen Core i7/i5/i3 (LGA1151) processor
- No Available Slots
- LAN: 2x Ports (GB (10/100/1000))
- WiFi: Integrated Intel® 802.11ac WiFi Module + Bluetooth 4.2 - Removable Under Networking Section
- Video: Dual HDMI + DisplayPort
- Audio: 7.1+2 Channel HD Audio by Realtek ALC892
- Ports:
4x USB 2.0 Ports ( 2 Front, 2 Rear )
8x USB 3.2 Gen 1 Ports ( 6 Rear, 2 Internal Headers )
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: i3-8100 - 3.6GHz Intel Quad-Core (4 cores) CPU - 6MB Cache, UHD Graphics 630 (65W) (ERM)
- Memory: 8GB DDR4 2666MHz RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 90w output, 12v input DC-DC Power Supply - AC Adapter Included
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

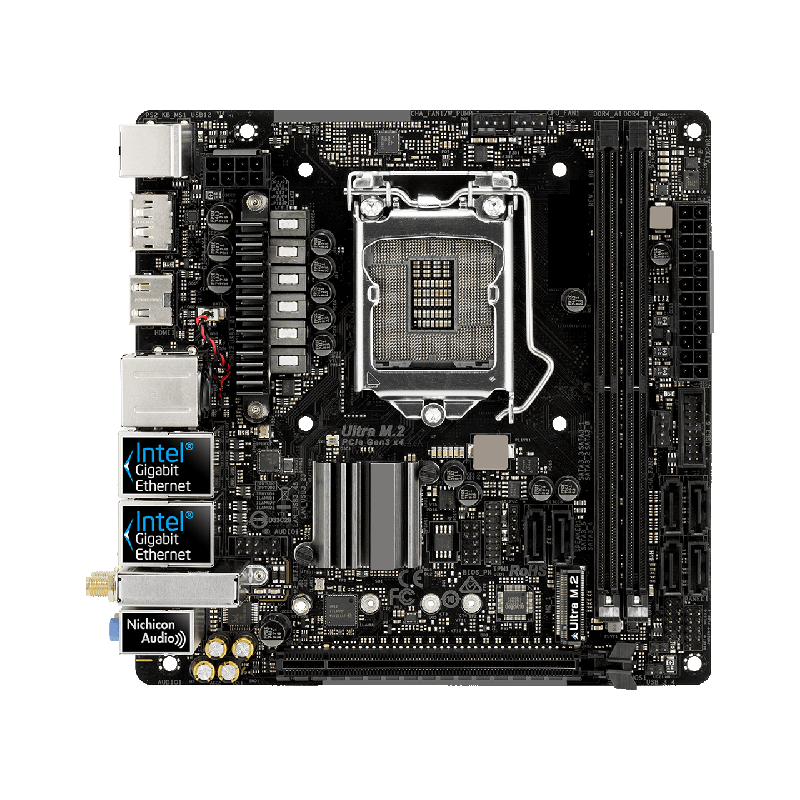

MotherBoard Specifications:
Chassis Specifications:
CASE-EBOX-S17v2
