SL-EB-Z890A-S15

Name: SL-EB-Z890A-S15
SKU: SL-EB-Z890A-S15

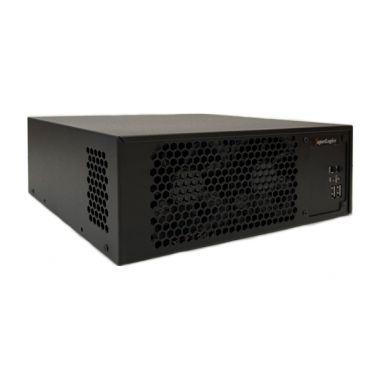

Microbox PC - Embedded PC featuringIntel Z890 Chipset, Intel® Core™ Ultra Processors (Series 2), LGA1851, 1x 2.5GbE (10/100/1000/2500) LAN, WIFI, Up to 128GB RAM, 5x USB 2.0 Ports ( 2 Front, 2 Rear, 1 Internal Headers ), 3x USB 3.2 Gen 1 Ports ( 1 Rear, 2 Internal Headers ), 3x USB 3.2 Gen 2 Ports ( 3 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers ), 1x Expansion Slots, Dimensions of Enclosure: 9.45"L x 10.35"W x 3.74"H.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

Microbox PC
Dimension: 9.45" x 10.35" x 3.74"

Motherboard:

Featuring Intel Z890 Chipset and Intel® Core™ Ultra Processors (Series 2), LGA1851 processor
Full Height Slots:
1 - PCIe x16
LAN: 1x Ports (2.5GbE (10/100/1000/2500))
WiFi: Wi-Fi 7 + BT 5.4
Video: HDMI + Thunderbolt 4 + Thunderbolt 4
Audio: ESS® SABRE9260Q DAC
Ports:
5x USB 2.0 Ports ( 2 Front, 2 Rear, 1 Internal Headers )
3x USB 3.2 Gen 1 Ports ( 1 Rear, 2 Internal Headers )
3x USB 3.2 Gen 2 Ports ( 3 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers )
2x Thunderbolt™ 4 (supports USB 4.0) Type-C Port (Rear)
See specifications for more ports
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

Processor: Intel® Core™ Ultra 5 Processor 245K Processor - 14 Cores (6P + 8E), 24MB Intel® Smart Cache, 159W (PL2)
Memory: 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM
Hard Drive: 1TB PCIe 5.0 NVMe SSD M.2 7,150/6,300MB/s - Samsung 990 EVO Plus
Power Supply: 600W 1U FLEX ATX Power Supply - 80+ Platinum Efficient
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Technical Specifications

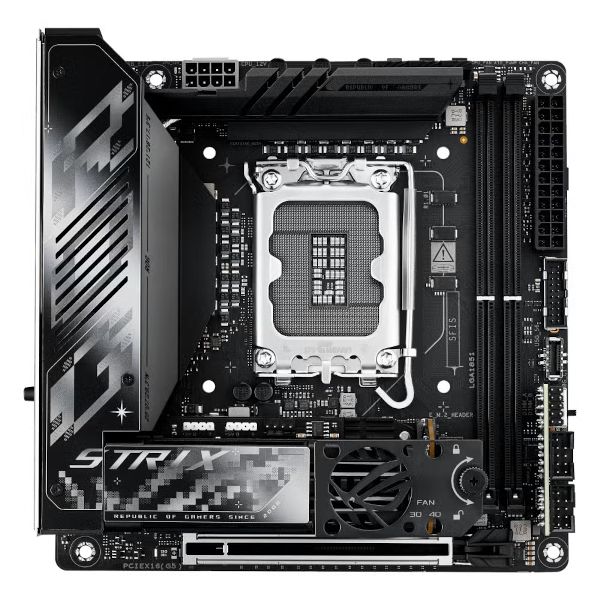

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MiniITX
Supported CPU
Number of Processors: 1
Processor Type: Intel® Core™ Ultra Processors (Series 2), LGA1851
Chipset
Chipset: Intel Z890 Chipset
Memory
Memory Type: DDR5 4800MHz
Memory Type: Non-ECC
DIMMS: 2
Maximum Memory: 128GB
On Board Audio
Audio Type: ESS® SABRE9260Q DAC
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: HDMI + Thunderbolt 4 + Thunderbolt 4
HDMI Out: 1
Thunderbolt™ video outputs: 2
LAN
LAN Ports: 1
LAN Type: 2.5GbE (10/100/1000/2500)
LAN Chipset: Intel® 2.5Gb Ethernet
Wireless LAN: Wi-Fi 7 + BT 5.4
Drive Interface
SATA III Ports (6GB): 2
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1
Expansion Slots
PCI Express x16 Slots On Motherboard: 1
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
2230 - 22 mm x 30 mm.
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
M.2 Slot #2 Specs
2230 - 22 mm x 30 mm.
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
None

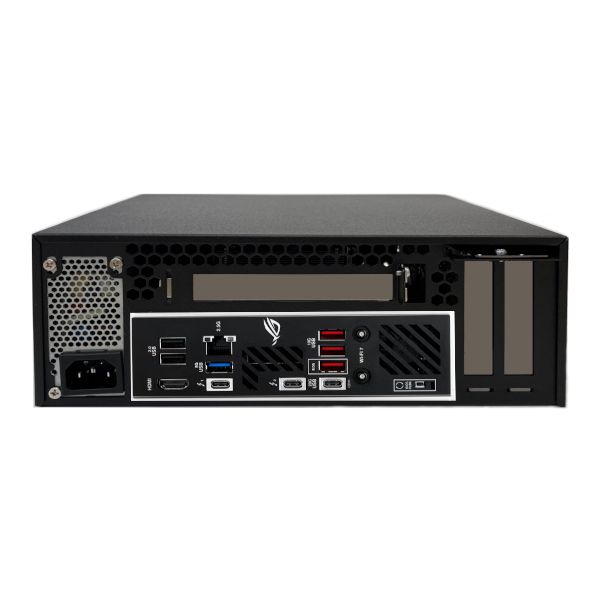

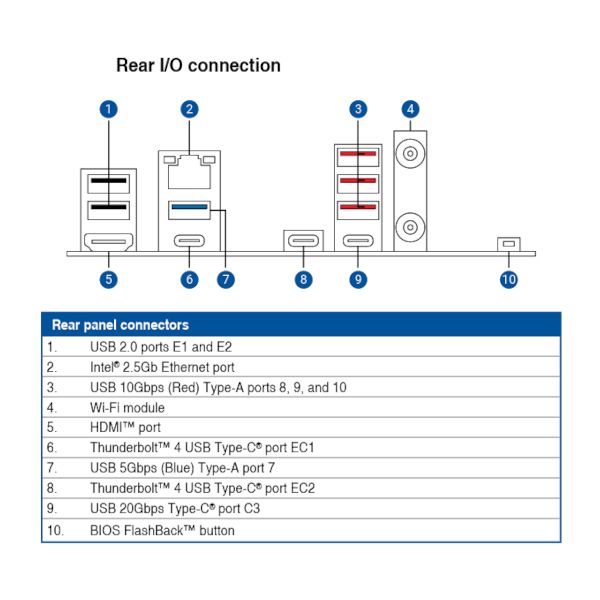

Rear IO
USB 2.0 Ports (on IO): 2
USB 3.2 Gen 1 Type A Ports (on IO): 1
USB 3.2 Gen 2 Type A Ports (on IO): 3
USB 3.2 Gen 2x2 Type C Ports (on I/O): 1
Thunderbolt™ 4 (supports USB 4.0) Type-C Port: 2
SPDIF Connector: 1
Headers
USB 2.0 Ports (on Headers): 3
USB 3.2 Gen 1 Ports (on Headers): 2
USB 3.2 Gen 2 Type-C (on Headers): 1
FAN Connectors: 4
Audio on Headers
TPM Support: TPM via Intel Platform Trust Technology
Environmental
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
High Humidity: 95%
Low Humidity: 10%
Operating System Support
Windows 11 Home (64 Bit)
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC High End
Compliance of Component
CE
RoHS
FCC
Other Features
Features:
Expansion Slot

1 x PCIe 5.0 x16 slot (supports x16 mode)

Total Supports 2 x M.2 slots and 2 x SATA
6Gb/s ports*
Intel^® Core™ Ultra Processors(Series 2)**
M.2_1 slot (Key M), type
2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type
2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)
2 x SATA 6Gb/s ports***
* Intel^® Rapid Storage Technology supports
PCIe RAID 0/1, SATA RAID 0/1.
** M.2_2 slot shares bandwidth with
PCIEX16(G5). When M.2_2 slot is occupied with SSD device, PCIEX16(G5) will run
x8 only.
*** Install ROG FPS Card to support 2 x
SATA 6Gb/s ports.

Graphics

1 x HDMI™ port**
2 x Intel^® Thunderbolt™ 4 ports (USB
Type-C^®) support DisplayPort and Thunderbolt™ video outputs***

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers
Motherboard Warranty: 1 Year
