SL-LCD-22-RTouch-BSB

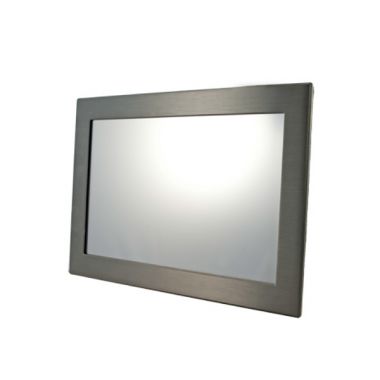

22" LED Monitor with 5-Wire Resistive Touch Screen - 1680 x 1050 Resolution, 250 NITS Brightness, NEMA4 Front Panel, Black

22
  • Angle
  • Front
  • Back
  • Bottom
  • Dimensions

Industrial Display

  • Screen Size (inches): 22"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: NEMA4
  • Aspect Ratio: 16 : 10
  • Native Display Resolution: 1680 x 1050
  • Brightness (nits): 250
  • Ports: VGA Port In, DVI-D In
Related Products
Technical Specifications
  • Display
  • Screen Size (inches): 22
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: NEMA4
  • Aspect Ratio: 16 : 10
  • Native Display Resolution: 1680 x 1050
  • Brightness (nits): 250
  • Display Area (H): 18.65inches
  • Display Area (V): 11.66inches
  • Aspect Ratio: 16 : 10
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 160
  • Viewing Angle(D) : 160
  • Viewing Angle(L) : 170
  • Viewing Angle(R) : 170
  • Connectivity
  • VGA Port In: 0
  • DVI-D In: 1
  • Mounting Options
  • Suggested Cut-Out Dimension (Width): 528.7mm
  • Suggested Cut-Out Dimension (Height): 342.3mm
  • Width: 558.8inches
  • Height: 374.7inches
  • Depth: 51.8 inches
  • Depth (Inches): 2.04
  • Unboxed Weight: 19lbs
  • Shipping Weight: 23lbs
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 20%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -20C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 20%
  • Power
  • Power Supply: Accepts 100-240 VAC, 50/60 Hz directly
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Environmental
  • Power Consumption (on): 26Watts
  • Warranty
  • Warranty: 1 year
  • Other
