SL-PPC-08Wv2-E3845-E This item is no longer available.
8" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen Intel ATOM SoC, Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W, 2x LAN, WIFI,2x Serial, Up to 8GB RAM, 3x USB 2.0 Ports ( 3 Rear ), 1x USB 3.2 Gen 1 Port( 1 Rear ), 1024 x 600 resolution, Power Supply 12~28V input / 12VDC 60w External Power adapter included.
For Embedded OS. 8-12 Weeks Lead Time - Please Call For Current Status
Type:
- Fanless Panel PC
- Screen:
- 8" 5-Wire Resistive, Native Resolution: 1024 x 600, Front Panel Rating: IP65
Motherboard:
- Featuring Intel ATOM SoC and Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W
- WiFi: Optional USB WiFi 802.11 b/g
- Video: VGA + HDMI
- Audio: 5.1 channel by Realtek® ALC892
- Ports:
3x USB 2.0 Ports ( 3 Rear )
1x USB 3.2 Gen 1 Port( 1 Rear )
2x COM Port (1 RS232 Rear, 1 RS232/422/485 Rear)
See specifications for more ports - Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)
Also Included:
- Memory: 2GB DDR3 1333MHz SODIMM RAM
- Hard Drive: Compact Flash Card - 8GB, 15MB/40MB
- Power Supply: 12~28V input / 12VDC 60w External Power adapter included
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: Embedded
- Fanless
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W
- Chipset
- Chipset: Intel ATOM SoC
- Memory
- Memory Type: SO DIMM DDR3 1333MHz
- Memory Type: Non-ECC
- DIMMS: 1
- Maximum Memory: 8GB
- On Board Audio
- Audio Type: 5.1 channel by Realtek® ALC892
- On Board Video
- Video Chipset: Intel® Valleyview SoC integrated Graphics
- Video on IO: VGA + HDMI
- VGA Port Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 2
- LAN Chipset: Intel® i211AT
- Second LAN Chipset: Intel® i211AT
- Wireless LAN: Optional USB WiFi 802.11 b/g
- Drive Interface
- Compact Flash: 1
- Mini PCIe
- mini PCIe
- mSATA
- half and/or full size mini PCIe card: full size

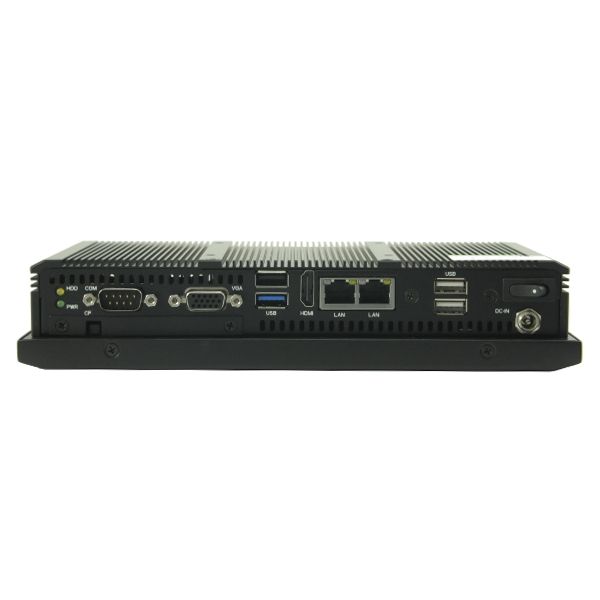

- Rear IO
- USB 2.0 Ports (on IO): 3
- USB 3.0 Ports (on IO): 1
- Serial (Rear IO): 1
- Serial 232/422/485 Ports: 1
- Audio on IO
- Management Features
- Watch Dog
- Environmental
- Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF )
- High Humidity: 90%
- Operating System Support
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows Embedded 8 (32-bit)
- Windows Embedded 8 (64-bit)
- Windows 8.1 (32-bit)
- Windows 8.1 (64-bit)
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Warranty of Component
- Motherboard Warranty: 1 Year

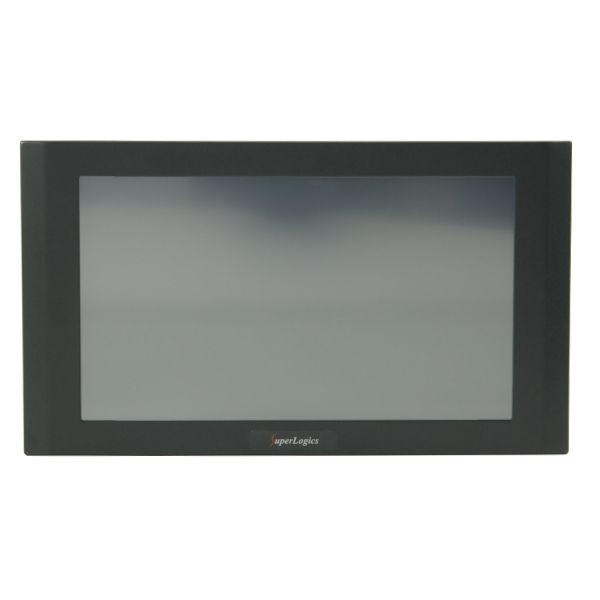

Display Specifications
- Display
- Screen Size (inches): 8
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65
- Aspect Ratio: 128 : 75
- Native Display Resolution: 1024 x 600
- Brightness (nits): 500
- Display Area (H): 3.90"
- Display Area (V): 7"
- Aspect Ratio: 128 : 75
- DisplayColors: 256 K
- Contrast Ratio: 700:1
- Backlight: LED
- Viewing Angle(U) : 70
- Viewing Angle(D) : 70
- Viewing Angle(L) : 75
- Viewing Angle(R) : 75

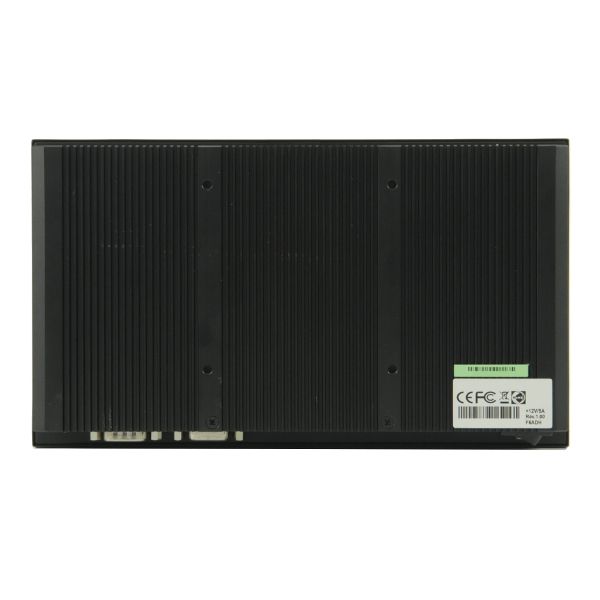

- Mounting Options
- Mounting Options: VESA 75mm x 75mm, Other options sold separately
- Suggested Cut-Out Dimension (Width): 8.80"
- Suggested Cut-Out Dimension (Height): 4.80"

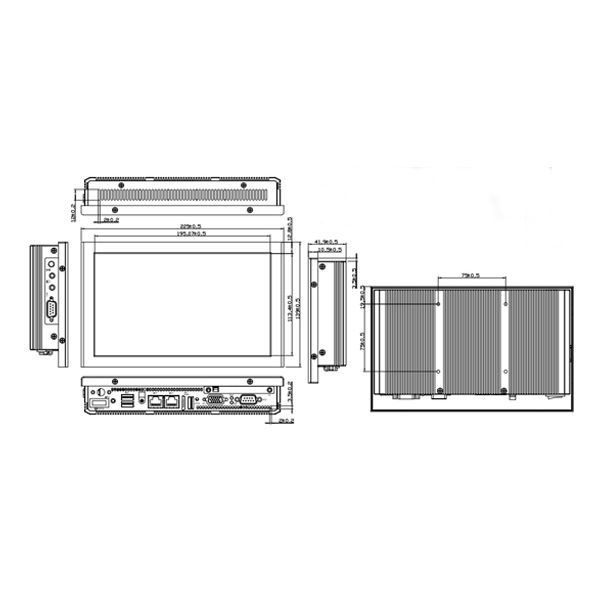

- Physical
- Width: 225mm
- Height: 129mm
- Depth: 43.40mm
- Depth (Inches): 1.75
- Unboxed Weight: 3lbs
- Shipping Weight: 6lbs
- Environmental
- Maximum Operating Temperature: 40C
- High Humidity: 90%
- Storage Temp (High): 50C
- Storage Temp (Low): -10C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 10%
- Power
- Power Supply: Accepts 12VDC, 100-240VAC/12VDC 5A 60W External Power Adapter included
- Power Consumption (on): 60Watts
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Warranty
- Warranty: 1 year
- Other
- Built-in Chassis Power Supply: 12~28V input / 12VDC 60w External Power adapter included
Chassis Specifications:
- General
- Form Factor: Panel PC
- Color: Black
- Material: Metal/Aluminum
- Material Thickness: 1mm
- Slide Rails: Optional
- Physical
- Depth: 43.40mm
- Depth (Inches): 1.75
- Width: 225mm
- Height: 129mm
- Shipping Box - Depth: 5.50"
- Shipping Box - Width: 11"
- Shipping Box - Height: 11"
- Shipping Weight: 6lbs
- Power
- Built-in Chassis Power Supply: 12~28V input / 12VDC 60w External Power adapter included
