SL-PPC-12A-JH61-S17-1 This item is no longer available.
12" HMI Panel PC with 5-Wire Resistive Touch Screen Intel H61 Chipset, 3rd Gen Core i3/i5/i7 (LGA1155, 'Ivy Bridge'), 1x GB (10/100/1000) LAN, 6x Serial, Up to 16GB RAM, 3x USB 2.0 Ports ( 3 Rear ), 800 x 600 resolution, Power Supply AC/DC Power Adapter Included.
Please Contact Us For Availability. (Lead Time May Take 5+ Weeks)
Type:
- Panel PC
- Screen:
- 12" 5-Wire Resistive, Native Resolution: 800 x 600, Front Panel Rating: IP65 / NEMA4
- Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out

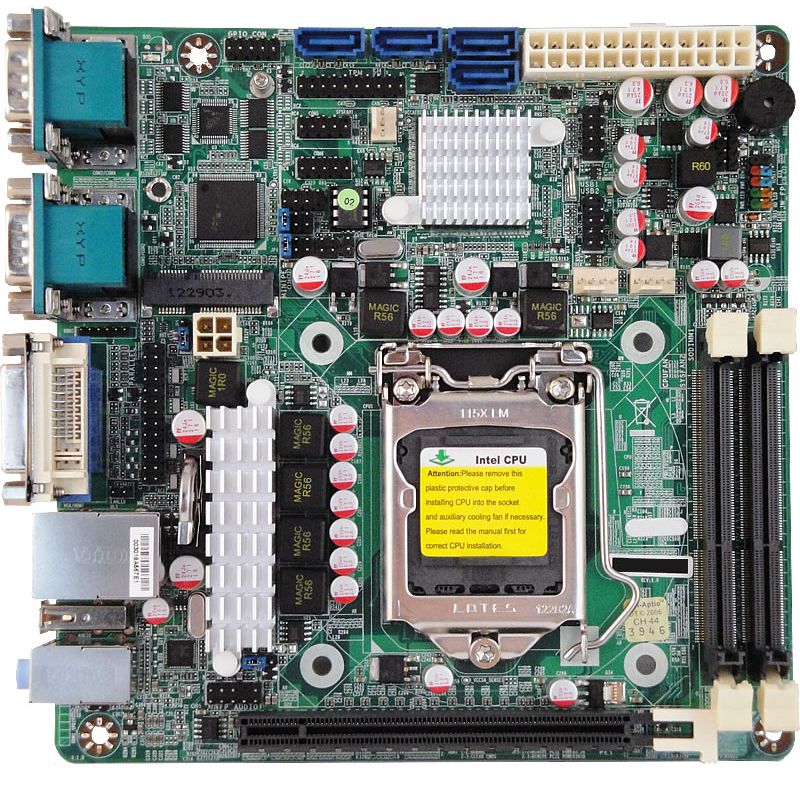

Motherboard:
- Featuring Intel H61 Chipset and 3rd Gen Core i3/i5/i7 (LGA1155, 'Ivy Bridge') processor
- No Available Slots
- LAN: 1x Ports (GB (10/100/1000))
- Video: VGA + DVI-D
- Audio: 5.1 channel by Realtek® ALC662

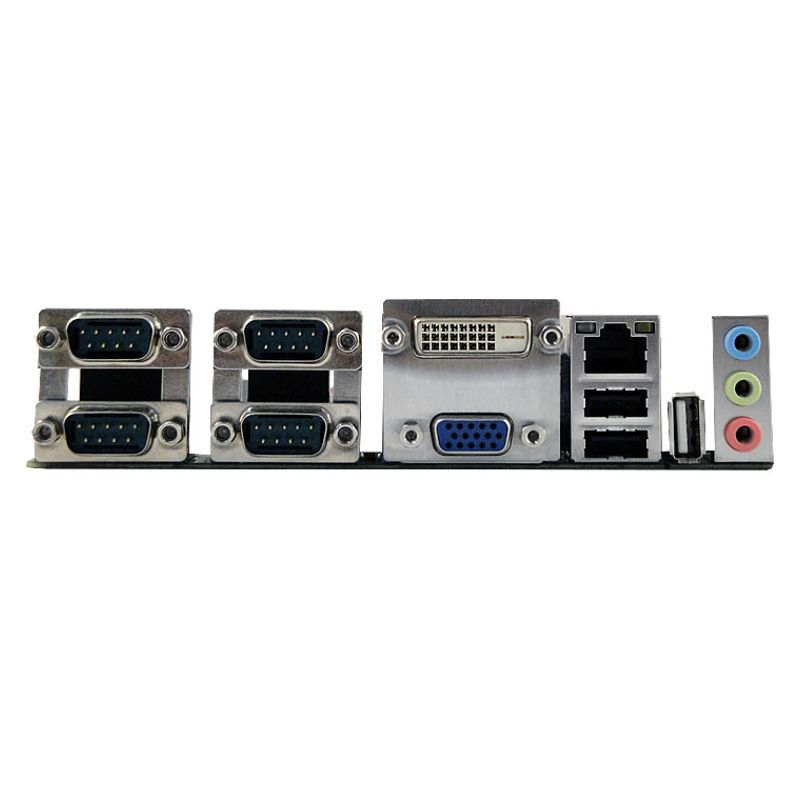

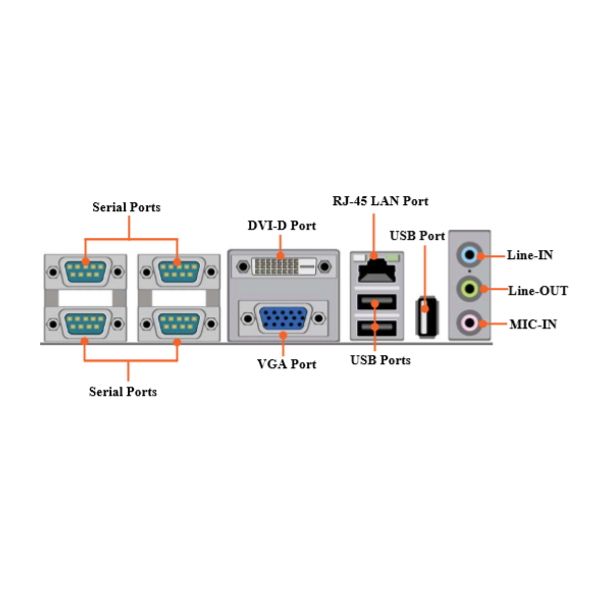

- Ports:
3x USB 2.0 Ports ( 3 Rear )
6x COM Ports (4 RS232 Rear, 1 RS232 Internal Headers, 1 RS232/422/485 Internal Headers)
1x Parallel Port (Headers)
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: G1620 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (55W) (ERM)
- Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
- Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
- Power Supply: 160w output, 12v input DC-DC Power Supply - AC Adapter Included
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
Display Specifications
- Display
- Screen Size (inches): 12
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 4 : 3
- Native Display Resolution: 800 x 600
- Brightness (nits): 400
- Screen Refresh Rate: 60Hz
- Display Area (H): 246mm
- Display Area (V): 184.50mm
- Aspect Ratio: 4 : 3
- DisplayColors: 16.2 M
- Contrast Ratio: 600:1
- Backlight: LED
- Viewing Angle(U) : 65
- Viewing Angle(D) : 75
- Viewing Angle(L) : 80
- Viewing Angle(R) : 80
- Connectivity
- HDMI In: 1
- Display Port In: 1
- Touchscreen Interface USB Port (Front): 1
- Mounting Options
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
- Suggested Cut-Out Dimension (Width):
- Suggested Cut-Out Dimension (Height):
- Physical
- Width:
- Height:
- Depth:
- Depth (Inches): Click Available Downloads Tab > Mechanical Drawings.
- Unboxed Weight: 9lbs
- Shipping Weight: 25lbs
- Environmental
- MTBF: 50000hours
- Maximum Operating Temperature: 80C
- High Humidity: 90%
- Low Humidity: 8%
- Storage Temp (High): 80C
- Storage Temp (Low): -30C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 8%
- Power
- Power Supply: AC 100~240V/12V DC
- Power Consumption (on): 12Watts
- Compliance of Component
- CE
- CCC
- Warranty
- Warranty: 1 year
- Other
- Built-in Chassis Power Supply: Wide Voltage Input (9-36VDC)
- Features:
Industrial Display
- Screen Size: 12"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Native Display Resolution: 800 x 600
- Brightness (nits): 400
- Wide Voltage Input (9-36VDC)
