SL-PPC-24A-LLQ87E-S17-C-NF This item is no longer available.
24" HMI Panel PC with Multi-Touch Projected Capacitive Touch Screen Long Production Cycle Motherboard (Through Q2 2020) with Intel Q87 Chipset, 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell'), 2x GB (10/100/1000) LAN, 4x Serial, Up to 16GB RAM, 8x USB 2.0 Ports ( 2 Front, 4 Rear, 2 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers ), 1920 x 1080 resolution, Power Supply AC/DC Power Adapter Included.
Lead Time 4+ Weeks. Completely Fanless
Type:
- Panel PC
- Screen:
- 24" Multi-Touch Projected Capacitive, Native Resolution: 1920 x 1080, Front Panel Rating: IP65 / NEMA4
- Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out
Motherboard:
- Featuring Intel Q87 Chipset and 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell') processor
- Long Production Cycle Motherboard (Through Q2 2020)
- No Available Slots
- LAN: 2x Ports (GB (10/100/1000))
- Video: VGA + HDMI + DVI-D
- Audio: 5.1 channel by Realtek® ALC662

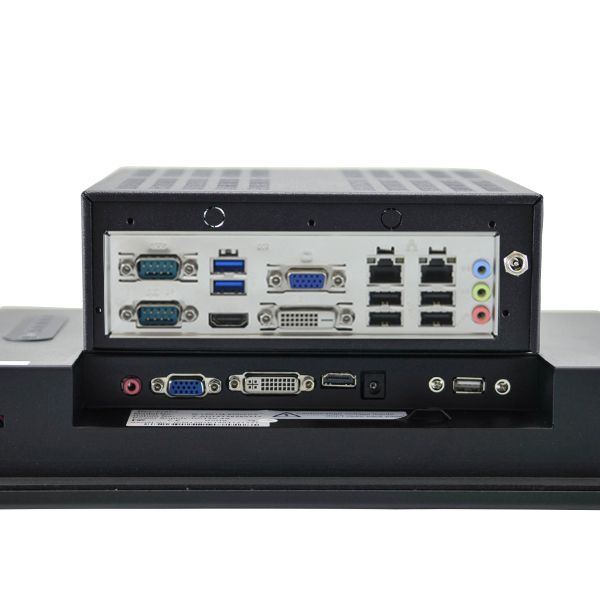

- Ports:
8x USB 2.0 Ports ( 2 Front, 4 Rear, 2 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers )
4x COM Ports (1 RS232 Rear, 1 RS232 Internal Headers, 1 RS232/422/485 Rear, 1 RS232/422/485 Internal Headers)
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Processor: G1820TE - 2.2GHz Intel Celeron Dual Core CPU - 2 MB Cache, HD Graphics (35W) (ERM)
- Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
- Hard Drive: 256GB mSATA SSD SATA 6.0Gb/s, 550/500MB/s read/write (or greater)
- Power Supply: 90w output, 12v input DC-DC Power Supply - AC Adapter Included
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
Display Specifications
- Display
- Screen Size (inches): 24
- Touch Type: Multi-Touch Projected Capacitive
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 16 : 9
- Native Display Resolution: 1920 x 1080
- Brightness (nits): 250
- Screen Refresh Rate: 60Hz
- Display Area (H): 531.36mm
- Display Area (V): 298.89mm
- Aspect Ratio: 16 : 9
- DisplayColors: 16.2 M
- Contrast Ratio: 1000:1
- Backlight: LED
- Viewing Angle(U) : 80
- Viewing Angle(D) : 80
- Viewing Angle(L) : 85
- Viewing Angle(R) : 85
- Connectivity
- VGA Port In: 1
- DVI-I In: 1
- HDMI In: 1
- S-Video: 1
- Touchscreen Interface USB Port (Front): 1

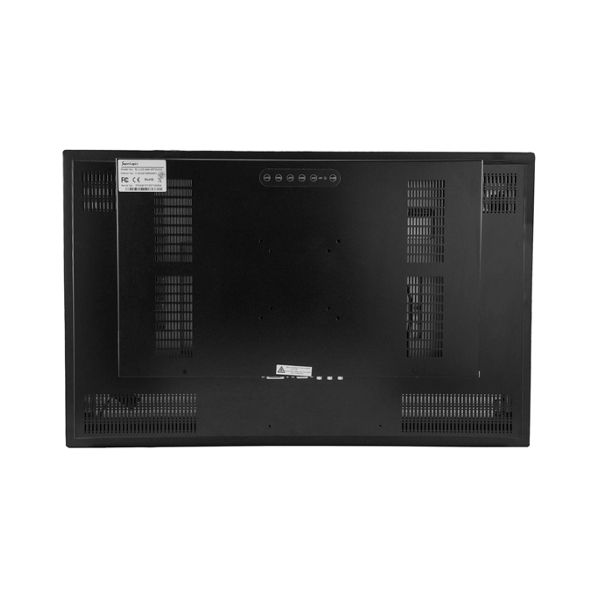

- Mounting Options
- Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
- Suggested Cut-Out Dimension (Width):
- Suggested Cut-Out Dimension (Height):
- Physical
- Width:
- Height:
- Depth:
- Depth (Inches): Click Available Downloads Tab > Mechanical Drawings.
- Unboxed Weight: 20lbs
- Shipping Weight: 50lbs
- Environmental
- MTBF: 30000hours
- Maximum Operating Temperature: 50C
- High Humidity: 90%
- Low Humidity: 8%
- Storage Temp (High): 60C
- Storage Temp (Low): -10C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 8%
- Power
- Power Supply: AC 100~240V/12V DC
- Power Consumption (on): 21Watts
- Compliance of Component
- CE
- RoHS
- FCC
- CCC
- Warranty
- Warranty: 1 year
- Other
- Features:
Industrial Display
- Screen Size: 24"
- Touch Type: Multi-Touch Projected Capacitive
- Front Panel Rating: IP65 / NEMA4
- Native Display Resolution: 1920 x 1080
- Brightness (nits): 250
