SL-VIDEO-PNY-NVS310-1GB-2DP This item is no longer available.

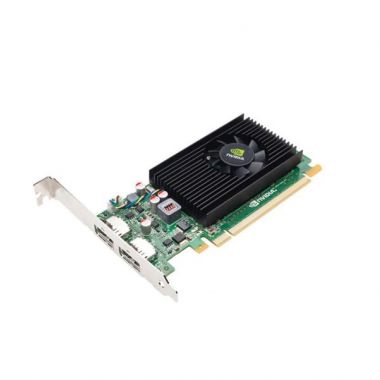

NVIDIA NVS 310 1GB 64-bit DDR3 PCIe 2.0 x16 HDCP Ready Workstation Video Card - 2 x DP
Features & Benefits
NVIDIA NVS 310 Display and Audio Capabilities
- Integrated DisplayPort 1.2 support
- HDMI 1.4a with audio via 3rd party adapters
- DVI-D single-link via included adapters
- 480p, 720p, 1081i, and 1080p video resolution support
- 32kHz, 44.1kHz, 48kHz, 92kHz, 176kHz, and 192kHz audio frequency support
- 16-bit, 20-bit, 24-bit audio sampling size support
- Digital Content Protection Support for HDCP
NVIDIA NVS 310 Video Codec Support
- MPEG-2
- MPEG-4 Part 2 Advanced Simple Profile
- H.264 SVC codec support - 3D Blu-ray support
- 3D Blu-ray support
- VC1
- DivX version 3.11 and later
- MVC
Product Specifications
| CUDA Cores | 48 |
| GPU Memory | 512MB DDR3 |
| Memory Interface | 64-bit |
| Memory Bandwidth | 14.0GB/s |
| System Interface | PCI Express Gen2 x16 |
| Maximum Power Consumption | 19.5W |
| Thermal Solution | Ultra-quiet fansink |
| Energy Star Compliant | Yes |
| Form Factor | SFF, 2.731" H x 5.70" L |
| Display Connectors | DP + DP |
| DisplayPort 1.2 | Yes |
| DisplayPort with Audio | Yes |
| DVI-D Single-Link Connectors | Two via included adapters |
| Number of Displays Supported | 2 |
| Maximum DP Digital Resolution | 2560 x 1600 at 60Hz |
| Maximum DVI Digital Resolution | 1920 x 1200 at 60Hz |
| PCIe High Definition Audio Support | Yes |
| HDCP Support | Yes |
| Graphics APIs | Shader Model 5.0, OpenGL 4.1, DirectX 11 |
| Compute APIs | CUDA, DirectCompute, OpenCL |
| NVIEW | Yes |
| Mosaic Mode | Yes (Windows 7) |
