SL-VIDEO-PNY-NVS315-1GB-DDVI This item is no longer available.

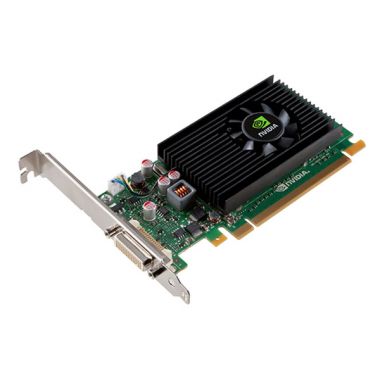

NVIDIA NVS 315 1GB 64-bit DDR3 PCIe 2.0 x16 HDCP Ready Workstation Video Card - 2x DVI-i or VGA

A newer version of this item is available: SL-VIDEO-PNY-P400-2GB
  • NVIDIA NVS 315 Architecture
    • Integrated DisplayPort, VGA, DVI and HDMI support
    • PCI Express 2.0 support
    • 12 pixels per clock rendering engine
    • NVIDIA® CUDA™ technology capable
    • Scalable geometry architecture
    • Hardware tessellation engine
    • NVIDIA® GigaThread™engine
    • Shader Model 5.0 (OpenGL 4.3 and DirectX 11)
    • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
    • Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
    • Compliant with professional OpenGL® and DirectX® applications
    Advanced Display Features
    • Supports versatile DMS-59 Connector
    • Drives two DVI-I SL, VGA or DisplayPort monitors via supported DMS-59 based break out cable adaptor
    • DisplayPort outputs drive two digital displays at resolutions up to 2560 x 1600 at 60Hz
    • DVI-I SL outputs drive two digital displays at resolutions up to 1920 x 1200 at 60Hz
    • Internal 400 MHz DAC drives two VGA displays at resolutions up to 2048 x 1536 at 85Hz
    • DisplayPort 1.2, HDMI 1.4 and HDCP support
    • HDMI support using optional DP-HDMI or DVI-HDMI dongles
    • Support for integrated audio via Display Port and HDMI
    • Support for multiple display modes including DualView, Span and Clone modes

Product Specifications

CUDA Cores 48
GPU Memory 1.0 GB DDR3
Memory Interface 64-bit
Memory Bandwidtd 14GB/s
System Interface PCI Express Gen 2 x16
Maximum Power Consumption 19.5 W
Thermal Solution Ultra-quiet Fansink
Energy Star Compliant Yes
Form Factor SFF, 2.731" H x 5.70" L
Display Connectors DMS-59 to dual DVI-I SL
VGA Support Via supplied DVI to VGA Adapters
Number of Displays Supported 2
Maximum DVI Resolution 1920 x 1200 at 60Hz
Maximum VGA Resolution 2048 x 1536 at 85Hz
HDCP Support Yes
Graphics APIs Shader Model 5.0 (OpenGL 4.3, DirectX 11)
Compute APIs CUDA, OpenCL, DirectCompute
NVIEW Yes
Mosaic Yes
