SL-VIDEO-PNY-NVS810-4GB-8DVI

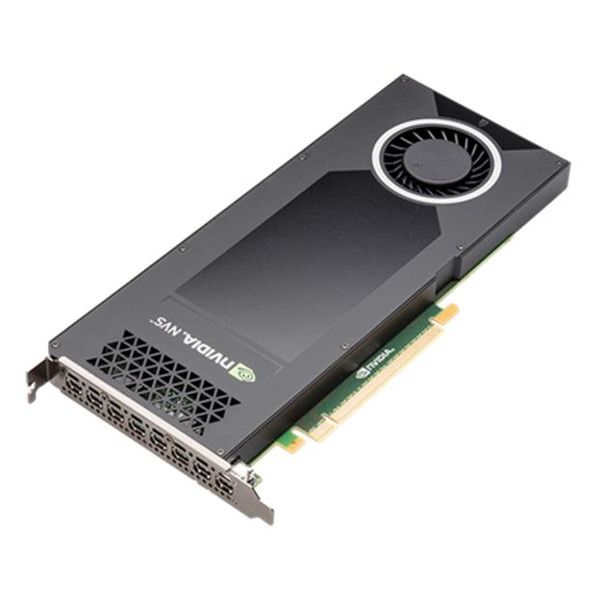

NVIDIA NVS 810 4GB 128-bit DDR3 PCIe 3.0 x16 HDCP Ready Workstation Video Card - Requires 300W PSU - 8x mini-DisplayPort

NVIDIA NVS 810 4GB 128-bit DDR3 PCIe 3.0 x16 HDCP Ready Workstation Video Card - Requires 300W PSU - 8x mini-DisplayPort
  • NVS810

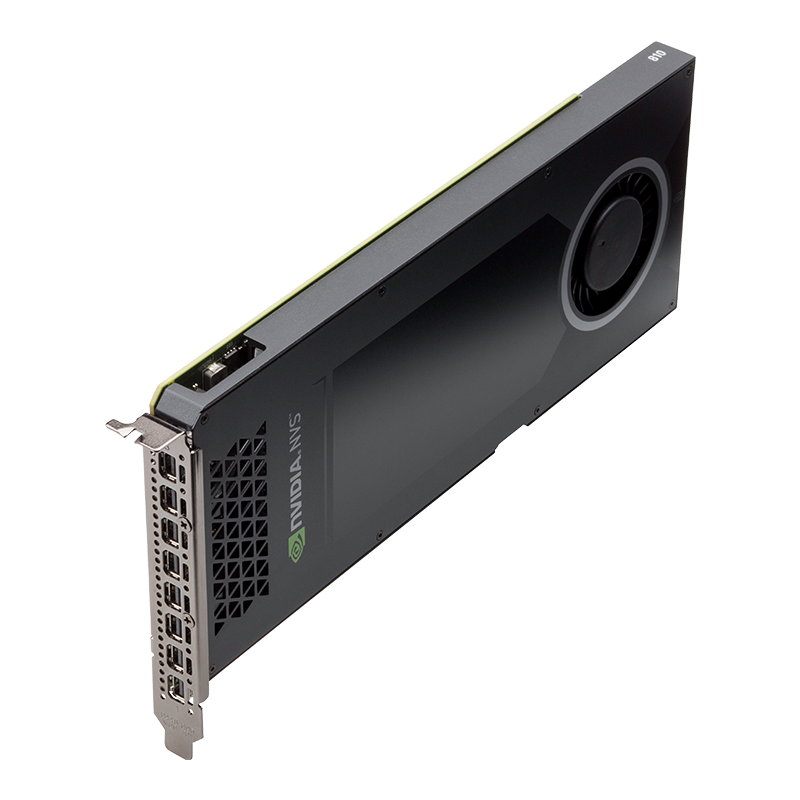

  • NVS810 I/O
  • NVS 810 I/O
NVIDIA NVS 810 Architecture
  • Scalable geometry architecture
  • Hardware tessellation engine
  • FXAA/TXAA dedicated anti-aliasing engine
  • Shader Model 5.0 (OpenGL 4.5 and DirectX 12)
  • Up to 16K x 16K texture and render processing
  • Transparent multisampling and super sampling
  • 16x angle independent anisotropic filtering
  • 32-bit per-component floating point texture filtering and blending
  • Up to 64x full scene antialiasing (FSAA)
  • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
  • Dedicated H.264 Encoder
  • NVIDIA GPU Boost (Automatically increases GPU engine throughput to maximize application performance.)
Advanced Display Features
  • Support for up to 8 displays with bezel correction, synchronization, and warp & blend
  • Mini-DisplayPort outputs natively drive up to 8 DisplayPort panels at resolutions up to 4,096 x 2,160 at 30Hz (4 panels at resolutions up to 4,096 x 2,160 at 60Hz)
  • Connect to various monitor types using included mini-DisplayPort cable adapters

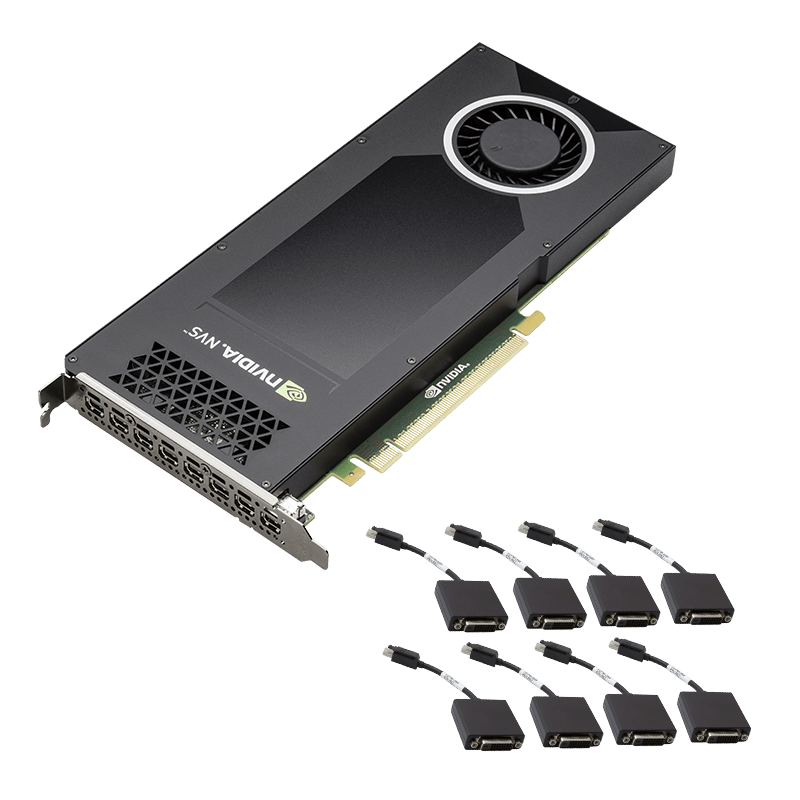

    • 8 mDP to DVI-D SL adapters included with PN VCNVS810DVI-PB
    • 8 mDP to DP adapters included with PN VCNVS810DP-PB
  • DisplayPort 1.2, HDMI 2.0, and HDCP support
  • DisplayPort 1.2 Multi-Stream Technology simplifies cable management in many installations
  • Drive up to 32 displays (8 groups of 4 cloned images via each DisplayPort connector) using supported DisplayPort 1.2 Stream Cloning technology
  • Support for integrated audio via DisplayPort and HDMI
  • Support for multiple display modes including DualView, Span, and Clone modes
DisplayPort and HDMI Digital Audio
  • Support for the following audio modes:
    • Dolby Digital (AC3), DTS 5.1, Dual Channel and Multichannel (7.1) LPCM, Dolby Digital Plus
    • Dolby Digital Plus and MPEG-2 or MPEG-4 AAC
  • Data rates of 44.1kHz, 49kHz, 96kHz, 176kHz, and 192kHz
  • Word sized of 16-, 20-, and 24-bit
DisplayPort and HDMI Digital Audio
  • Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
  • Data rates of 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176KHz, and 192KHz
  • Word sizes of 16-bit, 20-bit, and 24-bit
NVIDIA® nView® Desktop Management Software
  • Boosts productivity by delivering maximum flexibility for single and multi-display set-ups, and provides unprecedented end-user control of the desktop experience.
  • Seamless integration within the Windows environment
  • Easy to use Setup Wizard
  • Extended Windows Taskbar to spread the application buttons across displays
  • Get virtual sub-displays with Gridlines to make best use of large display setups
  • Create Virtual Desktops to maximize work area and reduce application clutter
  • Complete set of Hot Keys
  • User Profiles for easier system deployments
NVIDIA® Mosaic Technology
  • Enhance your workspace over multiple displays (up to 16 displays when used with multiple NVS 510 Graphics Cards)
  • Enables seamless taskbar spanning as well as transparent scaling of any application over multiple displays
NVIDIA® Enterprise Management Tools
  • Monitor, access and configure graphics and display information of remote machines using industry standard WMI Interface
  • Scriptable using WMI Command Line interface for integration with System level Management tools
  • Scalable Enterprise-Class tools to remotely install & configure graphics drivers across your entire organization
NVIDIA CUDA Parallel Processing Architecture
  • SMX Architecture (streaming multi-processor design that delivers greater processing and efficiency)
  • Hyper Q (allows multiple CPU cores to simultaneously utilize a single NVS 810 GPU to execute independent compute kernels)
  • API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
Unified Driver Architecture
  • Simplifies deployment across corporate or enterprise installations
  • Support for the latest applications on previous- and current-generation hardware
  • Continuous performance tuning
  • Microsoft Windows Hardware Qualification Lab (WHQL)-certified for Windows 10, 8.1, 8, and 7
Related Products
Technical Specifications

Product Specifications

CUDA Cores 1,024 (512 per GPU)
GPU Memory 4GB DDR3 (2GB per GPU)
Memory Interface 128-bit (64-bit per GPU)
Memory Bandwidth 28.8GB/s
System Interface PCI Express 3.0 x16
Maximum Power Consumption 68W
Energy Star Enabling Yes
Thermal Solution Ultra-quiet active fansink
Form Factor 4.40” H x 9.50” L, Single Slot
Display Connectors 8 Mini-DisplayPort
DisplayPort 1.2 Yes
DisplayPort with Audio Yes
Mini-DP to DP adapters None – order PN VCNVS810DP-PB if DisplayPort is required
Mini-DP to DVI-D SL adapters 8 included (MDP-DVI-EIGHT-PCK)
Number of Displays Supported 8 at 4,096 x 2,160 at 30Hz (4 at 4,096 x 2,160 at 60Hz)
Maximum DP 1.2 Resolution 4,096 x 2,160 at 60Hz (3,840 x 2,160 at 60Hz also available)
Maximum DVI-D SL Resolution 1,920 x 1,200 at 60Hz
HDCP Support Yes
Graphics APIs Shader Model 5.0, OpenGL 4.3, DirectX 11
Compute APIs CUDA, DirectCompute, OpenCL
NVIEW Yes
NVIDIA Mosaic Yes (Windows 10, 8.1, 8, 7, and Linux)
Bezel Correction Yes
Warp & Blend Yes
Synchronization Yes (8 displays hosted by a single NVS 810)
