SL-VIDEO-PNY-P1000-4GB-DVI

NVIDIA Quadro P1000 4GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4

NVIDIA Quadro P1000 4GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4

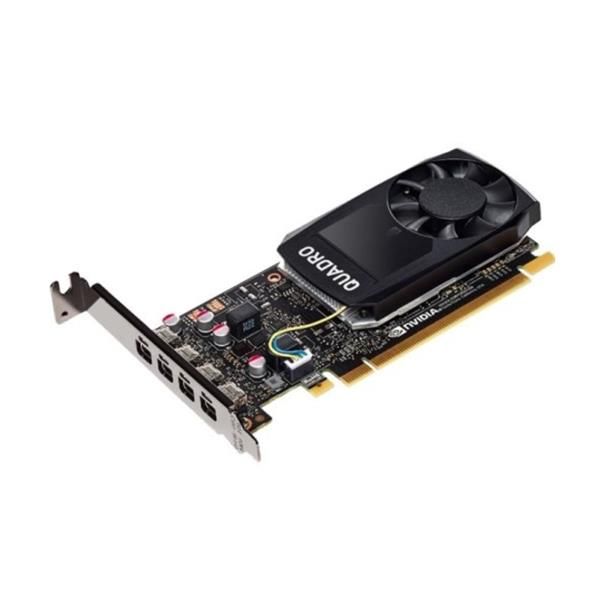

  • P1000

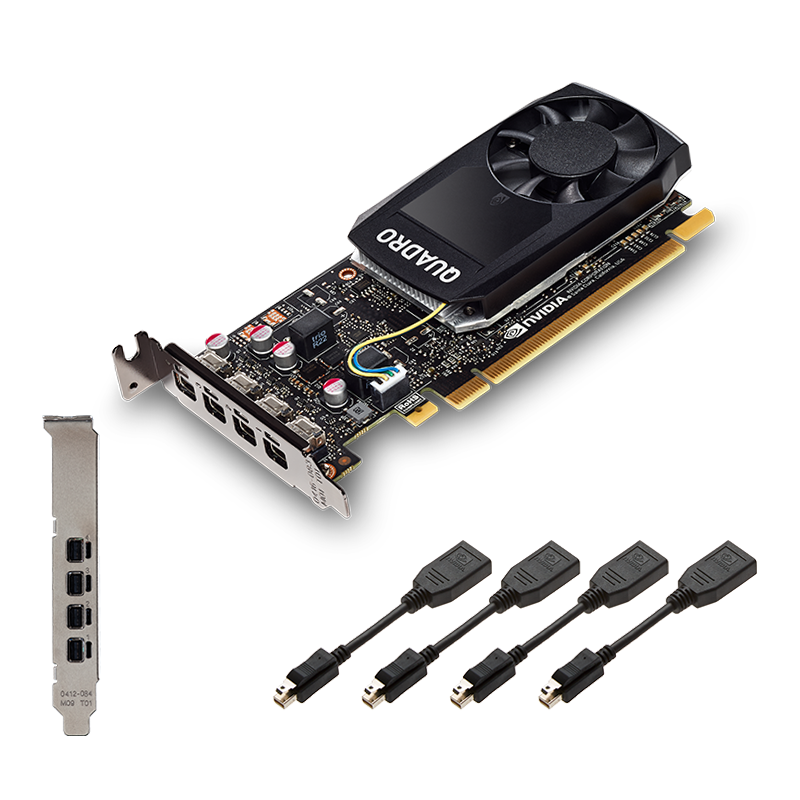

  • P1000 I/O

Key Features

3D GRAPHICS ARCHITECTURE

  • Scalable geometry architecture
  • Hardware tessellation engine
  • NVIDIA GigaThread engine with dual copy engines
  • Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
  • Up to 32K x 32K texture and render processing
  • Transparent multisampling and super sampling
  • 16x angle independent anisotropic filtering
  • 32-bit per-component floating point texture filtering and blending
  • 64x full scene antialiasing (FSAA)
  • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
  • Dedicated H.264 and HEVC Encoder
  • Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
  • NVIDIA GPU Boost (automatically improves GPU engine throughput to maximize application performance)

NVIDIA CUDA PARALLEL PROCESSING ARCHITECTURE

  • SM architecture (NVIDIA Pascal streaming multi-processor design that delivers greater processing and efficiency)
  • Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
  • API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran

ADVANCED DISPLAY FEATURES

  • Support for any combination of four connected displays
  • Four DisplayPort 1.4 outputs supporting resolutions such as 3840 x 2160 at 120Hz and 5120 x 2880 at 60Hz
  • HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K at 60 Hz 10b/12b HEVC Decode, 4K at 60 Hz 10b HEVC Encode)
  • HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors
  • 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications, and connection)
  • NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
  • Full OpenGL quad buffered stereo support
  • Underscan/overscan compensation and hardware scaling
  • NVIDIA NVIEW multi-display technology
  • Support for NVIDIA MOSAIC

DISPLAYPORT AND HDMI DIGITAL AUDIO

  • Support for the following audio modes: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
  • Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
  • Word sizes of 16-bit, 20-bit, and 24-bit
Related Products
Technical Specifications

SPECIFICATIONS

CUDA Cores 640
Peak Single Precision FP32 Performance 1.894 TFLOPS
GPU Memory 4 GB GDDR5
Memory Interface 128-bit
Memory Bandwidth 80 GB/s
System Interface PCI Express 3.0 x16
Maximum Power Consumption 47 W
Energy Star Enabling Yes
Thermal Solution Ultra-quiet active fansink
Form Factor 2.713” H x 5.70” L, Single Slot
Display Connectors mDP 1.4 (4)
DisplayPort with Audio Yes
DVI-D Single-Link Connector Via optional adapters
HDMI Support Via optional adapters
VGA Support Via optional adapters
Number of Displays Supported 4
Maximum DP 1.4 Resolution HDR 5120 x 2880 at 60Hz (30-bit color)
5K Display Support HDR 5120 x 2880 at 60Hz (30-bit color)
4K Display Support HDR 4096 x 2160 at 60Hz or 3840 x 2160 at 60Hz
Maximum DVI-D DL Resolution 2560 x 1600 at 60Hz via 3rd party adapter
Maximum DVI-D SL Resolution 1920 x 1200 at 60Hz via optional adapter
HDCP Support Yes
Graphics APIs Shader Model 5.1, OpenGL 4.5, DirectX 12.0, Vulkan 1.0
Compute APIs CUDA, DirectCompute, OpenCL
NVIEW Yes
NVIDIA MOSAIC Yes (Windows 10, 8.1, 8, 7, and Linux)
