SL-VIDEO-PNY-P2000-5GB-DVI This item is no longer available.

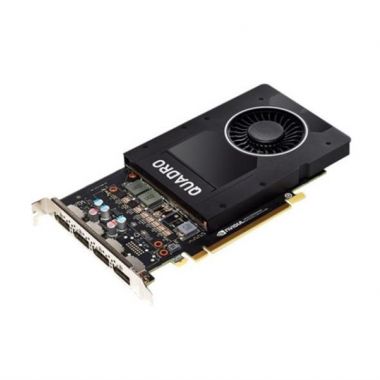

NVIDIA Quadro P2000 5GB 160-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x DisplayPort 1.4

A newer version of this item is available: SL-VIDEO-PNY-P2200-5GB

Key Features

3D GRAPHICS ARCHITECTURE

  • Scalable geometry architecture
  • Hardware tessellation engine
  • NVIDIA GigaThread engine with dual copy engines
  • Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
  • Up to 16 K x 16 K texture and render processing
  • Transparent multisampling and super sampling
  • 16x angle independent anisotropic filtering
  • 32-bit per-component floating point texture filtering and blending
  • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, and VC1
  • Dedicated H.264 and HEVC Encoder
  • Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
  • NVIDIA GPU Boost (automatically improves GPU engine throughput to maximize application performance)

NVIDIA CUDA PARALLEL PROCESSING ARCHITECTURE

  • Pascal SM Architecture (streaming multi-processor design that delivers greater processing efficiency)
  • Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
  • API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
  • 96 KB of RAM (dedicated shared memory per SM)

ADVANCED DISPLAY FEATURES

  • Support for any combination of four connected displays
  • Four DisplayPort 1.4 outputs supporting resolutions such as 3840 x 2160 at 120Hz and 5120 x 2880 at 60Hz
  • DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link), and DisplayPort to HDMI cables (resolution support based on dongle specifications)
  • HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K at 60 Hz 10b/12b HEVC Decode, 4K at 60 Hz 10b HEVC Encode)
  • HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors
  • 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications, and connection)
  • NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
  • Full OpenGL quad buffered stereo support
  • Underscan/overscan compensation and hardware scaling
  • NVIDIA NVIEW multi-display technology
  • Support for NVIDIA Quadro MOSAIC, NVIDIA NVIEW multi-display technology, NVIDIA Enterprise Management Tools

DISPLAYPORT AND HDMI DIGITAL AUDIO

  • Support for the following audio modes: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
  • Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
  • Word sizes of 16-bit, 20-bit, and 24-bit

SPECIFICATIONS AND SOLUTIONS TAB

CUDA Cores 1024
Peak Single Precision FP32 Performance 3.0 TFLOPS
GPU Memory 5 GB GDDR5
Memory Interface 160-bit
Memory Bandwidth 140 GB/s
System Interface PCI Express 3.0 x16
Maximum Power Consumption 75 W
Energy Star Enabling Yes
Thermal Solution Ultra-quiet active fansink
Form Factor 4.40” H x 7.90” L, Single Slot
Display Connectors DP 1.4 (4)
DisplayPort with Audio Yes
DVI-D Single-Link Connector Via included adapter
HDMI Support Via optional adapters
VGA Support Via optional adapters
Number of Displays Supported 4
Maximum DP 1.4 Resolution HDR 5120 x 2880 at 60Hz (30-bit color)
5K Display Support HDR 5120 x 2880 at 60Hz (30-bit color)
4K Display Support HDR 4096 x 2160 at 60Hz or 3840 x 2160 at 60Hz
Maximum DVI-D DL Resolution 2560 x 1600 at 60Hz via 3rd party adapter
Maximum DVI-D SL Resolution 1920 x 1200 at 60Hz via included adapter
HDCP Support Yes
Graphics APIs Shader Model 5.1, OpenGL 4.5, DirectX 12.0, Vulkan 1.0
Compute APIs CUDA, DirectCompute, OpenCL
NVIEW Yes
NVIDIA MOSAIC Yes (Windows 10, 8.1, 8, 7, and Linux)
