SL-VIDEO-PNY-P4000-8GB-DVI

NVIDIA Quadro P4000 8GB 256-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x DisplayPort 1.4 + Stereo

NVIDIA Quadro P4000 8GB 256-bit GDDR5 PCIe 3.0 x16 Workstation Video Card  - 4 x DisplayPort 1.4 + Stereo

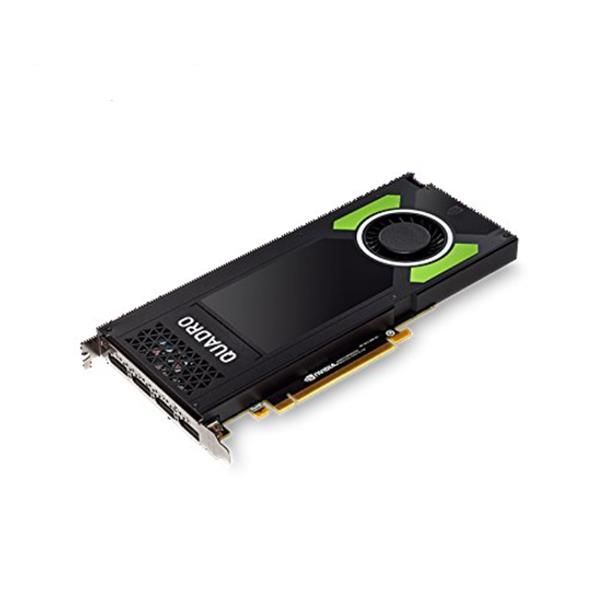

  • P4000

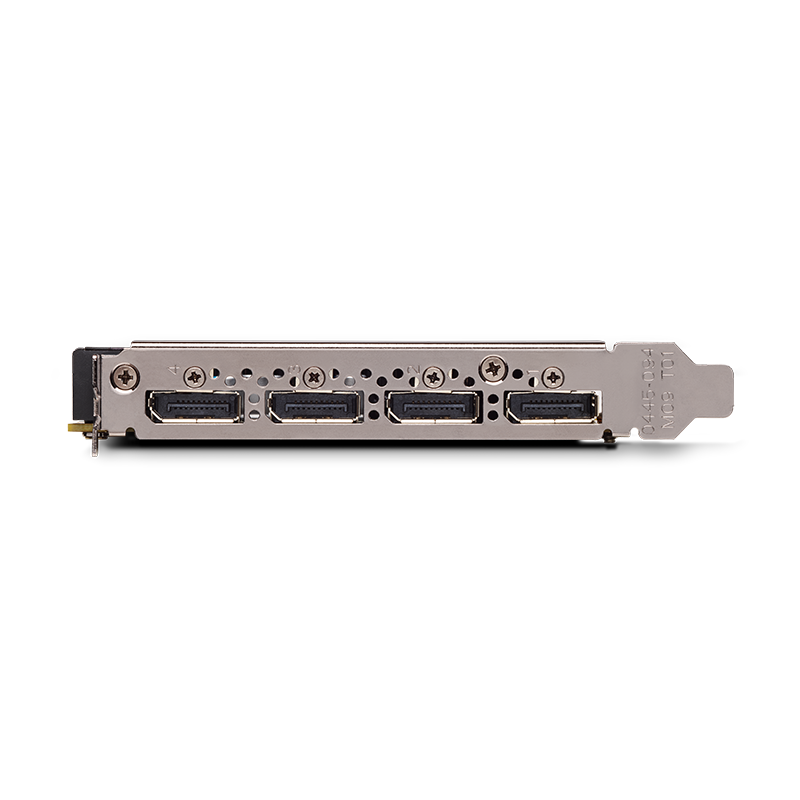

  • P4000 I/O

Key Features

3D GRAPHICS ARCHITECTURE

  • Scalable geometry architecture
  • Hardware tessellation engine
  • NVIDIA GigaThread engine with dual copy engines
  • Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
  • Up to 16 K x 16 K texture and render processing
  • Transparent multisampling and super sampling
  • 16x angle independent anisotropic filtering
  • 32-bit per-component floating point texture filtering and blending
  • 64x full scene antialiasing (FSAA)/128x FSAA in NVIDIA SLI Mode
  • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, and VC1
  • Dedicated H.264 and HEVC encoder
  • Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
  • NVIDIA GPU Boost (automatically improves GPU engine throughput to maximize application performance.

NVIDIA CUDA PARALLEL PROCESSING ARCHITECTURE

  • Pascal SM Architecture (streaming multi-processor design that delivers greater processing efficiency)
  • Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
  • API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
  • 96 KB of RAM (dedicated shared memory per SM)

ADVANCED DISPLAY FEATURES

  • Support for any combination of four connected displays
  • Four DisplayPort 1.4 outputs (supporting resolutions such as 3840 x 2160 at 120 Hz and 5120 x 2880 at 60 Hz)
  • DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link), and DisplayPort to HDMI cables (resolution support based on dongle specifications)
  • HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K at 60 Hz 10b/12b HEVC Decode, 4K at 60 Hz 10b HEVC Encode)
  • HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors
  • 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connection)
  • NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
  • Full OpenGL quad buffered stereo support
  • Underscan/overscan compensation and hardware scaling
  • NVIDIA NVIEW multi-display technology
  • Support for large-scale, ultra-high resolution visualization using the NVIDIA SVS platform, which includes NVIDIA MOSAIC, NVIDIA Sync and NVIDIA Warp/Blend technologies
  • Turnkey Quadro P4000 + Quadro Sync II bundles available

DISPLAYPORT AND HDMI DIGITAL AUDIO

  • Support for the following audio modes: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
  • Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
  • Word sizes of 16-bit, 20-bit, and 24-bit
Related Products
Technical Specifications

SPECIFICATIONS AND SOLUTIONS TAB

CUDA Cores 1792
Peak Single Precision FP32 Performance 5.3 TFLOPS
Multi-GPU Scalability NVIDIA SLI HB
GPU Memory 8 GB GDDR5
Memory Interface 256-bit
Memory Bandwidth 243 GB/s
System Interface PCI Express 3.0 x16
Maximum Power Consumption 105 W
Energy Star Enabling Yes
Thermal Solution Ultra-quiet active fansink
Form Factor 4.40” H x 9.50” L, Single Slot
Display Connectors DP 1.4 (4) + Stereo
DisplayPort with Audio Yes
DVI-D Single-Link Connector Via included adapter
HDMI Support Via optional adapters
VGA Support Via optional adapters
Number of Displays Supported 4
Maximum DP 1.4 Resolution HDR 5120 x 2880 at 60Hz (30-bit color)
5K Display Support HDR 5120 x 2880 at 60Hz (30-bit color)
4K Display Support HDR 4096 x 2160 at 60Hz or 3840 x 2160 at 60Hz
Maximum DVI-D DL Resolution 2560 x 1600 at 60Hz via 3rd party adapter
Maximum DVI-D SL Resolution 1920 x 1200 at 60Hz via included adapter
HDCP Support Yes
Professional 3D Support Yes, via included stereo connector bracket
Quadro Sync II Compatible Yes (Frame Lock and Genlock)
NVIDIA GPU Direct Compatible Yes
Graphics APIs Shader Model 5.1, OpenGL 4.5, DirectX 12.0, Vulkan 1.0
Compute APIs CUDA, DirectCompute, OpenCL
NVIEW Yes
NVIDIA MOSAIC Yes (Windows 10, 8.1, 8, 7, and Linux)
