SL-VIDEO-PNY-P5000-16GB This item is no longer available.

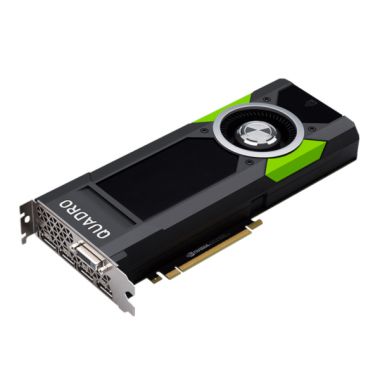

NVIDIA Quadro P5000 16GB 256-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x DisplayPort 1.4 + Stereo
CUDA Cores 2560
Peak Single Precision FP32 Performance 8.9 TFLOPS
GPU Memory 16 GB GDDR5
Memory Interface 256-bit
Memory Bandwidth 288 GB/s
System Interface PCI Express 3.0 x16
Display Connectors DP 1.4 (4) + DVI-D DL (1) + Stereo
SPECIFICATIONS AND SOLUTIONS TAB
| CUDA Cores | 2560 |
| Peak Single Precision FP32 Performance | 8.9 TFLOPS |
| Multi-GPU Scalability | NVIDIA SLI HB |
| GPU Memory | 16 GB GDDR5 |
| Memory Interface | 256-bit |
| Memory Bandwidth | 288 GB/s |
| System Interface | PCI Express 3.0 x16 |
| Maximum Power Consumption | 180 W Quadro Power Guidelines |
| Energy Star Enabling | Yes |
| Thermal Solution | Ultra-quiet active fansink |
| Form Factor | 4.40” H x 10.50” L, Single Slot |
| Display Connectors | DP 1.4 (4) + DVI-D DL + Stereo |
| DisplayPort with Audio | Yes |
| DVI-D Single-Link Connector | Via included adapter |
| HDMI Support | Via optional adapters |
| VGA Support | Via optional adapters |
| Number of Displays Supported | 4 |
| Maximum DP 1.4 Resolution | HDR 7680 x 4320 at 30Hz (30-bit color) |
| 5K Display Support | HDR 5120 x 2880 at 60Hz (30-bit color) |
| 4K Display Support | HDR 4096 x 2160 at 60Hz or 3840 x 2160 at 60Hz |
| Maximum DVI-D DL Resolution | 2560 x 1600 at 60Hz via 3rd party adapter |
| Maximum DVI-D SL Resolution | 1920 x 1200 at 60Hz via included adapter Quadro and NVS Display Resolution Support |
| HDCP Support | Yes |
| Professional 3D Support | Yes, via included stereo connector bracket |
| Quadro Sync II Compatible | Yes (Frame Lock and Genlock) |
| NVIDIA GPU Direct Compatible | Yes |
| Graphics APIs | Shader Model 5.1, OpenGL 4.5, DirectX 12.0, Vulkan 1.0 |
| Compute APIs | CUDA, DirectCompute, OpenCL |
| NVIEW | Yes |
| NVIDIA MOSAIC | Yes (Windows 10, 8.1, 8, 7, and Linux) |
