SL-VIDEO-PNY-P620-2GB

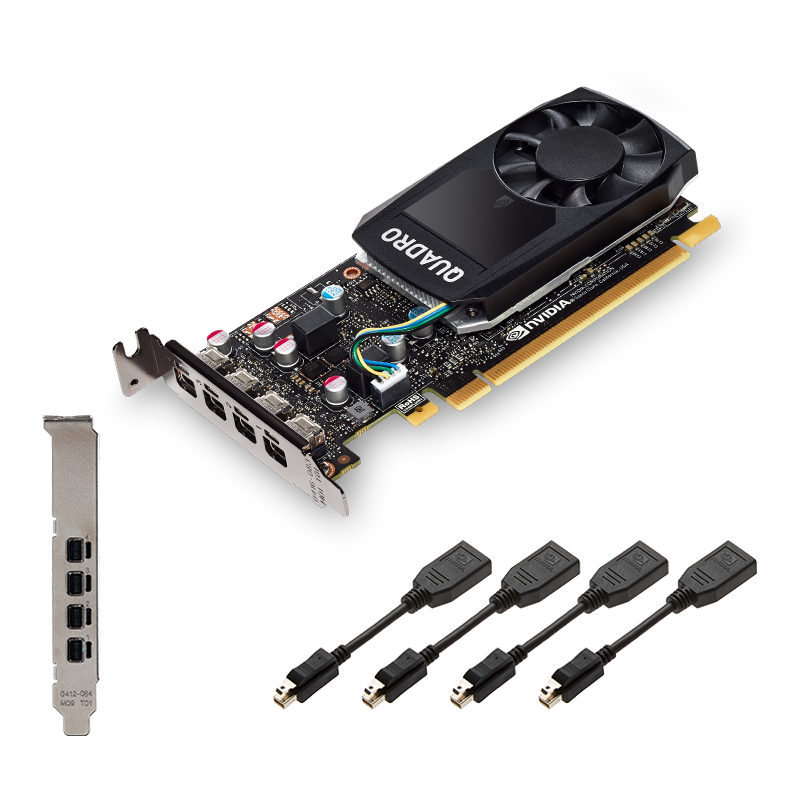

NVIDIA Quadro P620 2GB GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4

NVIDIA Quadro P620 2GB GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4
  • P620
CUDA Cores 512
Peak Single Precision FP32 Performance 1.386 TFLOPS
GPU Memory 2 GB GDDR5
Memory Interface 128-bit
Memory Bandwidth 80 GB/s
System Interface PCI Express 3.0 x16
Display Connectors mDP 1.4 (4)
Related Products
Technical Specifications

SPECIFICATIONS AND SOLUTIONS

CUDA Cores 512
Peak Single Precision FP32 Performance 1.386 TFLOPS
GPU Memory 2 GB GDDR5
Memory Interface 128-bit
Memory Bandwidth 80 GB/s
System Interface PCI Express 3.0 x16
Maximum Power Consumption 40 W
Energy Star Enabling Yes
Thermal Solution Ultra-quiet active fansink
Form Factor 2.713” H x 5.70” L, Single Slot
Display Connectors mDP 1.4 (4)
DisplayPort with Audio Yes
DVI-D Single-Link Connector Via optional adapters
HDMI Support Via optional adapters
VGA Support Via optional adapters
Number of Displays Supported 4
Maximum DP 1.4 Resolution HDR 5120 x 2880 at 60Hz (30-bit color)
5K Display Support HDR 5120 x 2880 at 60Hz (30-bit color)
4K Display Support HDR 4096 x 2160 at 60Hz or 3840 x 2160 at 60Hz
Maximum DVI-D DL Resolution 2560 x 1600 at 60Hz via 3rd party adapter
Maximum DVI-D SL Resolution 1920 x 1200 at 60Hz via optional adapter
HDCP Support Yes
Graphics APIs Shader Model 5.1, OpenGL 4.5, DirectX 12.0, Vulkan 1.0
Compute APIs CUDA, DirectCompute, OpenCL
NVIEW Yes
NVIDIA MOSAIC Yes (Windows 10, 8.1, 8, 7, and Linux)
