SL-VIDEO-PNY-RTX6000 This item is no longer available.

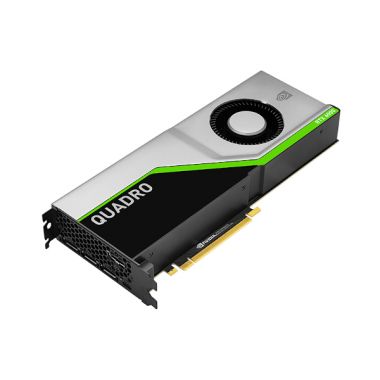

NVIDIA Quadro RTX6000 24GB GDDR6 with ECC, PCIe 3.0 x16

A newer version of this item is available: SL-VIDEO-PNY-RTXA6000

CUDA Cores                                                            4608

NVIDIA RT Cores                                                   72

NVIDIA Tensor Cores                                           576

RTX-OPS                                                                  84T

Rays Cast                                                                 10 Giga Rays/Sec

Peak Single Precision FP32 Performance      16.3 TFLOPS

Peak Half Precision FP16 Performance                                   32.6 TFLOPS

Peak INT8 Performance                                       206.1 TOPS

Deep Learning TFLOPS                                       130.5 Tensor TFLOPS

GPU Memory                                                           24 GB GDDR6 with ECC

Memory Bandwidth                                               624 GB/Sec

System Interface                                                    PCI Express 3.0 x16

Display Connectors                                              DisplayPort 1.4 (4) + VirtualLink



CUDA Cores: 4608

NVIDIA RT Cores: 72

NVIDIA Tensor Cores: 576

GPU Memory: 24 GB GDDR6 with ECC

RTX-OPS: 84T

Rays Cast: 10 Giga Rays/Sec

Peak Single Precision FP32 Performance: 16.3 TFLOPS

Peak Half Precision FP16 Performance: 32.6 TFLOPS

Peak INT8 Performance: 206.1 TOPS

Deep Learning TFLOPS 1: 130.5 Tensor TFLOPS

Multi-GPU Scalability: NVLink

NVLink Bandwidth: 100 GB/Sec

Memory Bandwidth: 624 GB/s

System Interface: PCI Express 3.0 x16

Maximum Power Consumption: 295 W

Energy Star Enabling: Yes

Thermal Solution: Ultra-quiet active fansink

Form Factor: 4.4” H x 10.5” L, Dual Slot

Display Connectors: DisplayPort 1.4 (4) + VirtualLink

DVI-D Single-Link Connector: Yes, via included adapter

HDMI Support: Yes, via included adapter

Number of Displays Supported: 4

Maximum DP 1.4 Resolution: HDR 7680 x 4320 at 60 Hz

5K Display Support: HDR 5120 x 2880 at 60 Hz

4K Display Support: HDR 4096 x 2160 or 3840 x 2160 at 120 Hz

Maximum DVI-D DL Resolution: 2560 x 1600 at 60 Hz via 3rd party adapter

Maximum DVI-D SL Resolution: 1920 x 1200 at 60 Hz via included adapter

HDCP Support: Yes

Professional 3D Support: Via optional Stereo Connector Bracket

Quadro Sync II Compatible: Yes (Frame Lock and Genlock)

NVIDIA GPU Direct Compatible: Yes

Graph APIs: Shader Model 5.1, OpenGL 4.5, DirectX 12.0, Vulkan 1.0

Compute APIs: CUDA, DirectCompute, OpenCL

NVIEW: Yes

NVIDIA MOSAIC: Yes
