SL-VIDEO-PNY-RTXA4000

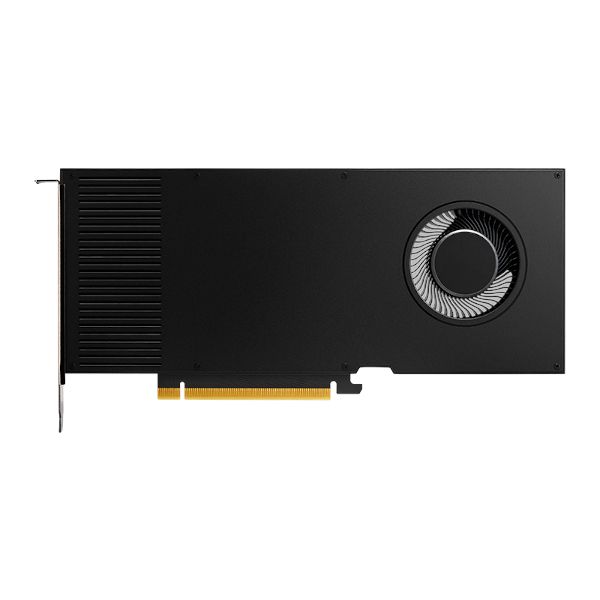

NVIDIA Quadro RTX A4000 16GB GDDR6, PCIe 4.0 x16
NVIDIA Ampere Architecture
CUDA Cores
Second Generation RT Cores
Third Generation Tensor Cores
PCIe Gen 4
Higher Speed GDDR6 Memory
Error Correcting Code (ECC) on Graphics Memory
Fifth Generation NVDEC Engine
Seventh Generation NVENC Engine
Graphics Preemption
Compute Preemption
NVIDIA RTX IO
Architecture - NVIDIA Ampere Architecture
Process Size - 8nm
Transistors - 17.4 Billion
Die Size - 392.5 mm2
CUDA Cores - 6144
Tensor Cores - 192
RT Cores - 48
Single Precision Performance - 19.2 TFLOPS
RT Core Performance - 37.4 TFLOPS
Tensor Performance - 153.4 TFLOPS
GPU Memory - 16 GB GDDR6 with ECC
Memory Interface - 256-bit
Memory Bandwidth - 448 GB/sec

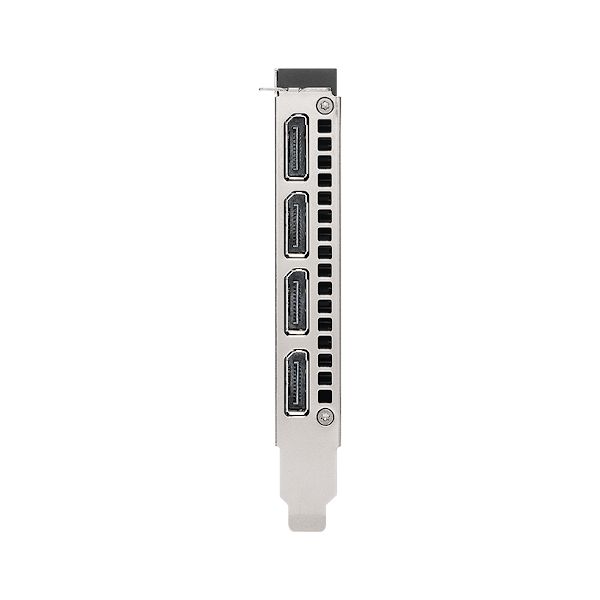

Display Connectors - 4x DisplayPort 1.4a
NVENC | NVDEC - 1x | 1x (+ AV1 decode)
System Interface - PCI Express 4.0 x16
Form Factor - 4.4” H x 9.5” L Single Slot
Thermal Solution - Active Fansink
Maximum Power Consumption - 140 W
NVIDIA Quadro and RTX Power Guidelines - Power Connector
1x 6-pin PCIe - Max Digital Resolution
7680 x 4320 x36 bpp at 60 Hz
NVIDIA Quadro and RTX Display Resolution Support
NVIDIA 3D Vision and 3D Vision Pro
Support via 3-pin mini DIN
Frame Lock
Optional NVIDIA Quadro Sync II
