USB3-7-Port-LP

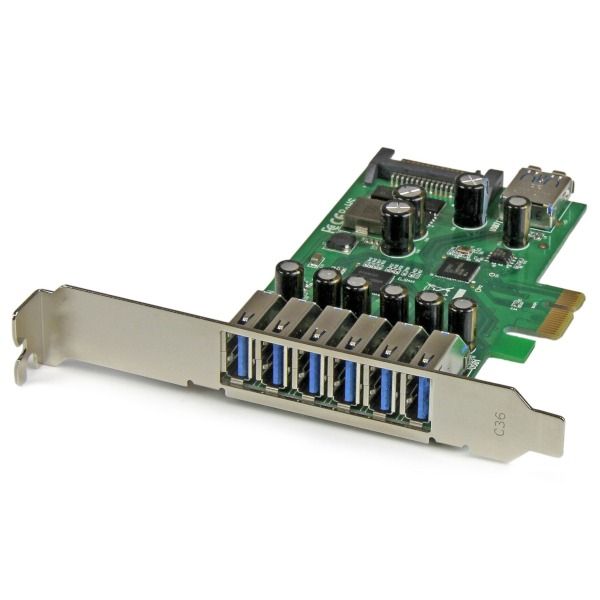

7-Port PCI Express USB 3.2 Gen 1 Card - Standard and Low-Profile Design
Extend your system capabilities by adding 7 USB 3.2 Gen 1 ports – 6 external and 1 internal – to any PCIe compatible computer
Unique dual-profile design fits standard and low-profile computers
Enjoy fast file transfers with USB 3.2 Gen 1 (5Gbps) and UASP support
Backward compatible with USB 2.0 and 1.x devices
SATA power connector with up to 900mA per port for high-power USB devices
PCIe x1 interface compliant with PCI Express 2.0 specifications
Connector(s)
Connector Type(s) - 1 - PCI Express x1
Internal Ports - 1 - SATA Power (15 pin) 1 - USB Type-A (9 pin, 5 Gbps)
External Ports - 6 - USB Type-A (9 pin, 5 Gbps)
Environmental
Operating Temperature - 5°C to 50°C (41°F to 122°F)
Storage Temperature - -25°C to 70°C (-13°F to 158°F)
Humidity - 20~80% RH
Hardware
Ports - 7
Interface - USB 3.2 Gen 1 (5Gbps)
Bus Type - PCI Express
Card Type - Standard Profile (LP bracket incl.)
Port Style - Integrated on Card
Industry Standards - USB 3.0 Specification Rev. 1.0, PCI Express Base Specification Rev. 2.0, Intel xHCI Specification Rev. 1.0
Chipset ID - Renesas/NEC - µPD720201, µPD720210
Performance
Maximum Data Transfer Rate - 5 Gbps
Maximum Cable Length - 9.8 ft [3 m]
Type and Rate - USB 3.0 (5Gbps)
UASP Support - Yes
MTBF - 1,920,042 Hours
Physical Characteristics
Color - Green
Material - Steel
Product Length - 4.1 in [10.5 cm]
Product Width - 0.6 in [1.5 cm]
Product Height - 4.7 in [12 cm]
Weight of Product - 2.5 oz [72 g]
Power
Input Voltage - 12V DC
Output Voltage - 12V DC
Software
OS Compatibility - Windows® XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Linux 2.6.31 and up - LTS Versions only
