SL-LCD-10AW-RTOUCH-1 This item is no longer available.

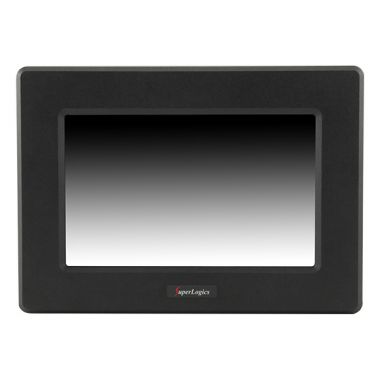

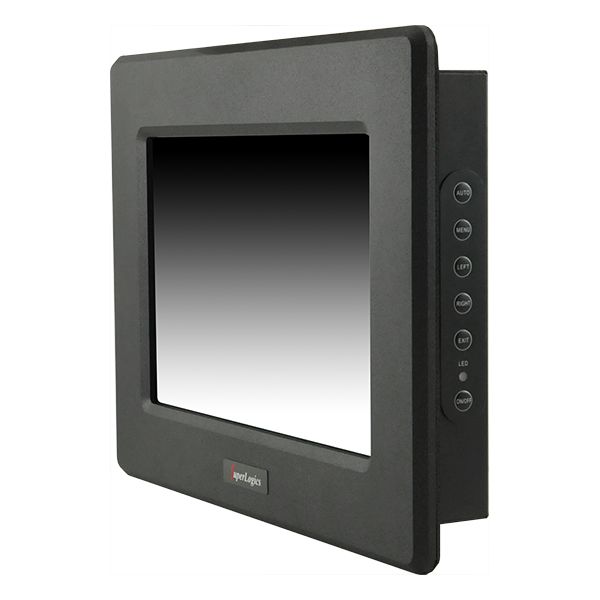

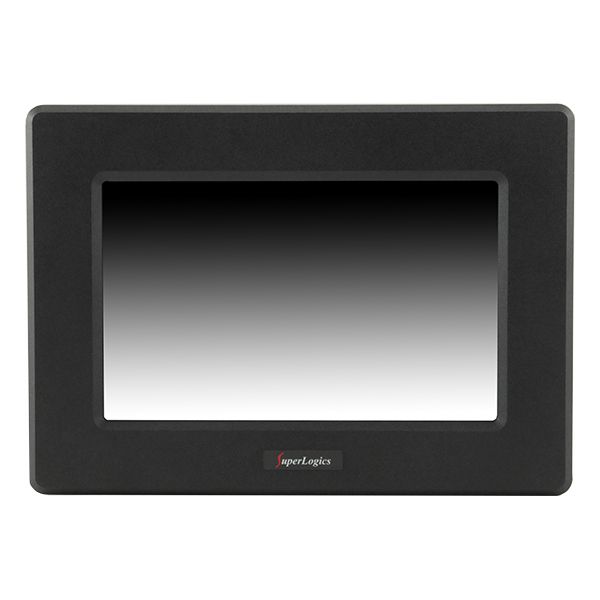

10" LED Monitor with 5-Wire Resistive Touch Screen - 1280 x 800 Resolution, 300 NITS Brightness, IP65 / NEMA4 Front Panel, Black

A newer version of this item is available: SL-LCD-10AW-RTOUCH-2

Industrial Display

  • Screen Size (inches): 10"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 1280 x 800
  • Brightness (nits): 300
  • Ports: VGA Port In, DVI-I In
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Display
  • Screen Size (inches): 10
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 1280 x 800
  • Brightness (nits): 300
  • Display Area (H): 216.96mm
  • Display Area (V): 135.60mm
  • Aspect Ratio: 4 : 3
  • DisplayColors: 16.2 M
  • Contrast Ratio: 800:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80

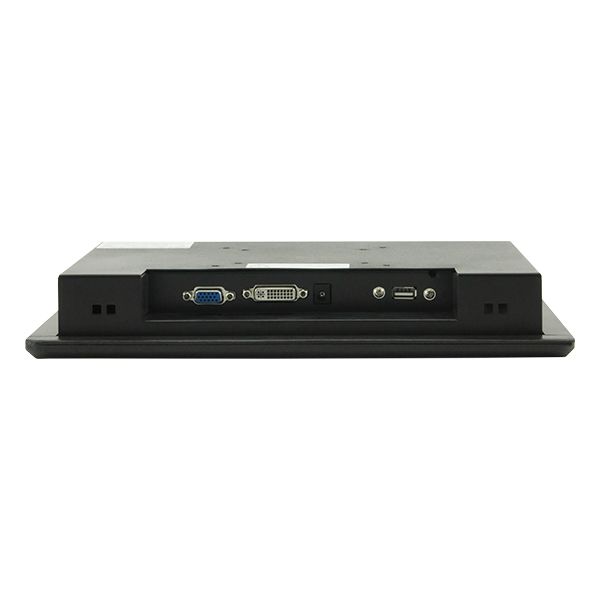

  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately

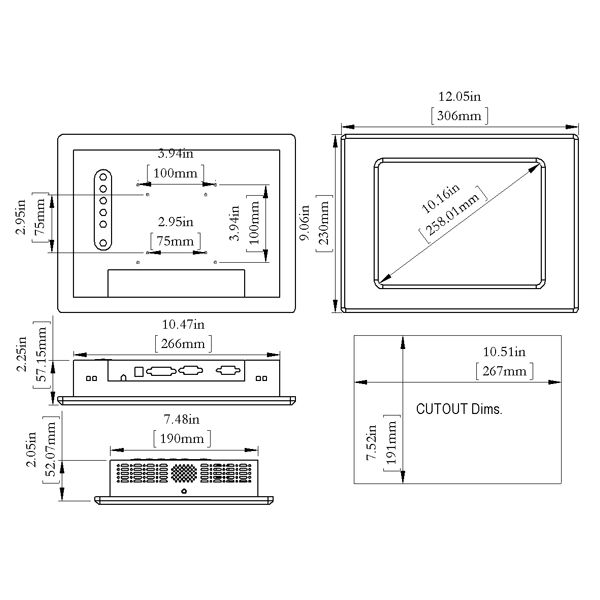

  • Suggested Cut-Out Dimension (Width): 280"
  • Suggested Cut-Out Dimension (Height): 195"
  • Physical
  • Width: 306mm
  • Height: 219mm
  • Depth: 45mm
  • Depth (Inches): 1.75
  • Unboxed Weight: 6lbs
  • Shipping Weight: 25lbs
  • Environmental
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • Low Operating Temp: -10C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -20C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): <12Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    Industrial Display

    • Screen Size: 10"
    • Touch Type: 5-Wire Resistive
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 1280 x 800
    • Brightness (nits): 300
