SL-LCD-15A-RTOUCH-1 This item is no longer available.

PLEASE USE 15A-RTOUCH-2

A newer version of this item is available: SL-LCD-15A-RTOUCH-2
PLEASE USE 15A-RTOUCH-2
  • Front Angle
  • Front
  • Back
  • Top
  • Bottom
  • Dimensions
  • Cutout Dimensions
  • Wallmount Instructions
  • Included Accessories

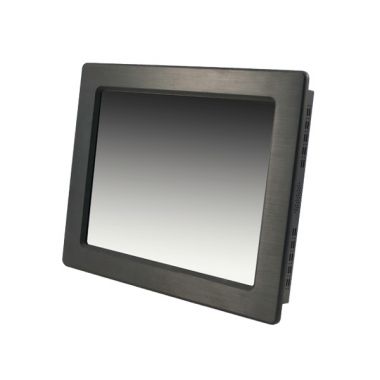

Industrial Display

  • Screen Size: 15"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 450
Technical Specifications
Available Downloads
  • Display
  • Screen Size: 15"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Color: Black
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 450
  • Display Area (H): 304mm
  • Display Area (V): 228mm
  • Aspect Ratio: 4:3
  • DisplayColors: 16.2 M
  • Contrast Ratio: 800:1
  • Backlight: TFT, Active Matrix (CCFL)
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 70
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-D In: 1
  • Mounting Options
  • VESA 75mm x 75mm
  • VESA 100mm x 100mm
  • Bezel Mounting Hardware Included
  • Suitable for Mounting in Cut-Out
  • Suggested Cut-Out Dimension (Width): 350mm
  • Suggested Cut-Out Dimension (Height): 267mm
  • Physical
  • Width: 14.90"
  • Height: 11.60"
  • Depth: 2.20"
  • Shipping Weight: 30lbs
  • Environmental
  • MTBF: 70000hours
  • Operating Temperature: 0ºC to 85ºC (32ºF to 185ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temperature: -30ºC to 85ºC (-22ºF to 185ºF)
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 12Watts
  • Compliance
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Warranty: 1 year
