- Display
- Screen Size (inches): 19
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 5 : 4
- Native Display Resolution: 1280 x 1024
- Brightness (nits): 1000
- Display Area (H): 376.3mm
- Display Area (V): 301mm
- Aspect Ratio: 5 : 4
- DisplayColors: 16.7 M
- Contrast Ratio: 1000:1
- Backlight: LED
- Viewing Angle(U) : 80
- Viewing Angle(D) : 80
- Viewing Angle(L) : 80
- Viewing Angle(R) : 80
- Connectivity
- VGA Port In: 1
- DVI-I In: 1
- Mounting Options
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately

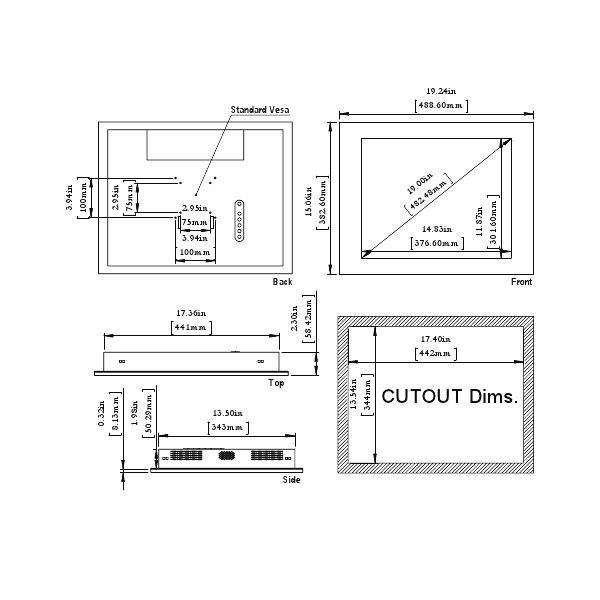

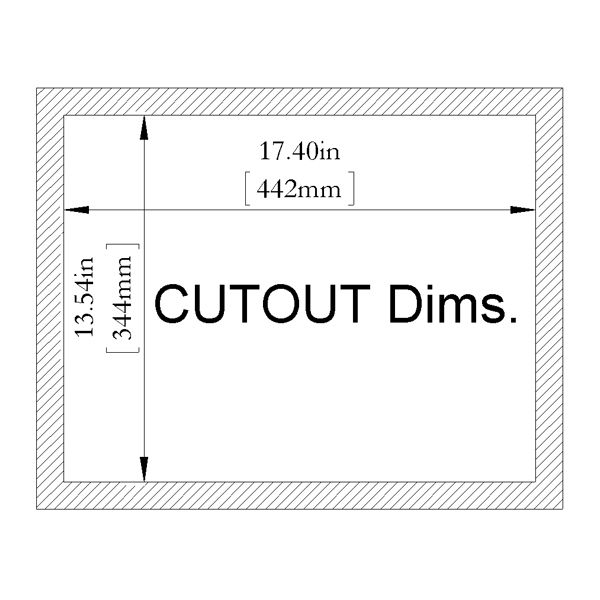

- Suggested Cut-Out Dimension (Width): 441mm
- Suggested Cut-Out Dimension (Height): 343mm
- Width: 469mm
- Height: 371mm
- Depth: 56mm
- Depth (Inches): 2.2
- Unboxed Weight: 14lbs
- Shipping Weight: 40lbs
- MTBF: 30000hours
- Maximum Operating Temperature: 50C
- High Humidity: 90%
- Low Humidity: 8%
- Storage Temp (High): 60C
- Storage Temp (Low): -10C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 8%
- Power
- Power Supply: AC 100~240V/12V DC
- Compliance of Component
- CE
- RoHS
- FCC
- Environmental
- Power Consumption (on): 23Watts
- Warranty
- Warranty: 1 year
- Other
- Features:
Industrial Display
- Screen Size: 19"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Native Display Resolution: 1280 x 1024
- Brightness (nits): 1000
