SL-LCD-24A-NT-1

24" LED Monitor 1920 x 1080 Resolution, 250 NITS Brightness, IP65 / NEMA4 Front Panel, Black

A similar version of this item is available with better faster lead time: SL-LCD-24A-PCAPTOUCH-2
Special Order Item, Delivery approximately 16 weeks
Special Order 12 Week Lead Time

Industrial Display

  • Screen Size (inches): 24"
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 16 : 9
  • Native Display Resolution: 1920 x 1080
  • Brightness (nits): 250
  • Ports: VGA Port In, DVI-I In
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Display
  • Screen Size (inches): 24
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 16 : 9
  • Native Display Resolution: 1920 x 1080
  • Brightness (nits): 250
  • Screen Refresh Rate: 60Hz
  • Display Area (H): 531.36mm
  • Display Area (V): 298.89mm
  • Aspect Ratio: 16 : 9
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 85
  • Viewing Angle(D) : 85
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately

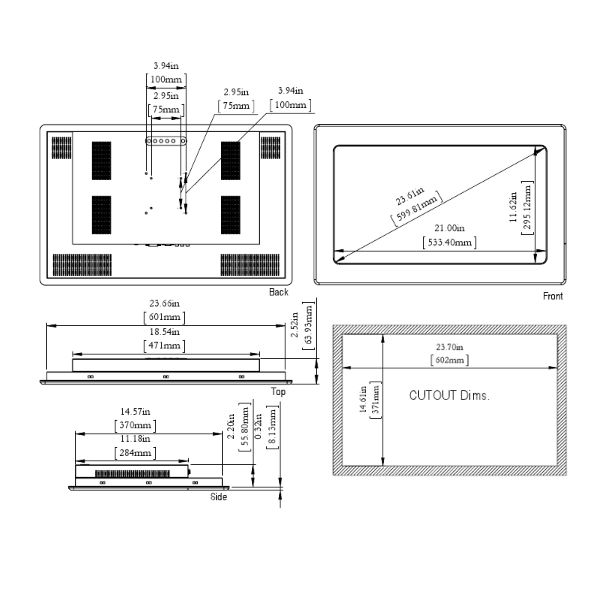

  • Suggested Cut-Out Dimension (Width): Click Available Downloads Tab > Mechanical Drawings
  • Suggested Cut-Out Dimension (Height): Click Available Downloads Tab > Mechanical Drawings
  • Physical
  • Width: Click Available Downloads Tab > Mechanical Drawings
  • Height: Click Available Downloads Tab > Mechanical Drawings
  • Depth: Click Available Downloads Tab > Mechanical Drawings
  • Depth (Inches): Click Available Downloads Tab > Mechanical Drawings.
  • Unboxed Weight: 21lbs
  • Shipping Weight: 50lbs
  • Environmental
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • Low Operating Temp: 00
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -10C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 21Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • CCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    Industrial Display

    • Screen Size: 24"
    • Touch Type: None
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 1920 x 1080
    • Brightness (nits): 250
