  • 8516
  • Complete RS-232 Data Acquisition System
  • Ideal for Strain Gage, Load Cell, LVDT Inputs and more
  • 16-Bit A/D Converter
  • Expandable to 8 or more Inputs with optional 8018s
  • High Precision Excitation settable from 0-10VDC (40mA available)
  • Amplification for low level strain gage voltages
  • 4 Digital Outputs (Not Supported by WINview CP)
  • 1 Digital Input (Not Supported by WINview CP)

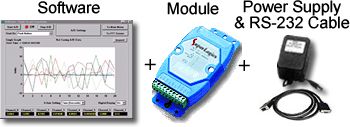

  • Ready-to-Run System Includes:
    • 8520 for direct RS-232

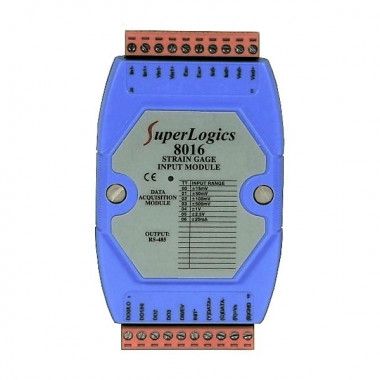

    • 8016 (prewired)
    • RS-232 Cable
    • Power Supply
    • WINview CP Plus 2012 Ready-to-Run Software - Supports Analog Inputs Only
    • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
    • WINview CP 2012 is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems
Related Products
Technical Specifications

Hardware Specifications:

    • Analog Input:
      • Input Channels:2
      • Input type : +/-15mV, +/-50mV, +/-100mV, +/-1V, +/-2.5V, +/-20mA
      • Max. Sampling rate of Module: 10 Samples/Second (0.10 seconds between samples)
      • Bandwidth: 5.24Hz
      • Accuracy: ±0.05% FSR
      • Zero Drift: ±0.5µV/ °C
      • Span Drift: 25ppm/°C
      • Common Mode Rejection @ 50/60Hz: 150dB
      • Normal Mode Rejection @ 50/60Hz: 100dB
      • Input Impedance: 20M Ohms
      • Intra-Module Isolation: 3000VDC
    • Excitation Voltage Output
      • Output Channels: 1
      • Output Range: 0 to +10V
      • Max Output Load: 40mA
      • Accuracy: ±0.05% of FSR
      • Drift: ±50ppm/ °C
      • Output Impedance: 12 Ohms
      • Isolation: 3000V DC
    • Digital Input:
      • Channels: 1
      • Logic Level 0: +1V max
      • Logic Level 1: +3.5 to 30V
      • Max Input Frequency: 50Hz
      • Min. Pulse Width: 1mS
    • Digital Output:
      • Channels: 4
      • Output Type: Open Collector to 30V
      • Output Load: Sink 30mA max
      • Power Dissipation: 30mW
    • Interface:
      • RS-485
      • Format: N,8,1
      • Baud Rate: 1200 ~ 115200 bps
      • Connections: Terminal blocks (accepts 16-22 AWG wires)
    • LED Display:
      • 1 LED as Power/Communication Indicator
    • Power:
      • Input Voltage Range: +10 to +30V DC
      • Power Consumption: 2.4W
    • Physical & Environmental:
      • Operating Temperature: -13 to 167°F (-25 to 75°C)
      • Storage Temperature: -40 to 176°F (-40 to 80°C)
      • Dimensions: 4.8 x 2.8 x 1.3 in (12.3 x 7.2 x 3.3 cm)

Software Specifications:

    • Hardware Requirements:
      • One 8000 Series Analog Input Module Connected via USB or RS232
      • 512MB RAM
      • 6MB Hard Disk Space (For WINview CP 2012 Only - Additional Space Required for Data Storage and/or .NET Framework)
    • Software Requirements
      • Windows XP (Service Pack 3), Windows Vista or Windows 7 (32-bit or 64-bit)
      • Microsoft .NET Framework Version 4.0 or Higher
      • 1024 x 768 Resolution or Higher
      • Requires Administrator User Privileges
    • General Software Specifications:
      • Maximum Number of Inputs:
        • Number and Type of Channels Determined by Module Used
      • Supported Signal Types:
        • All Analog Input Types:
          • Volts, mV, mA, Thermocouple, RTD, Strain Gauge, etc.
      • Ease of Use:
        • Very Easy, No Learning Curve, No Programming, No Manual Needed
      • Speed of Acquisition:
        • Maximum: 10 Hz (May be Limited by Hardware)
        • Minimum: None
      • Duration of Acquisition:
        • Finite (Specify Number of Points to Collect)
        • Continuous (Collects Until Stopped by User)
      • Data Storage:
        • Stream Data to Disk as ASCII Text (Tab Delimited)
        • Stream Data to Disk as ASCII Text with Time/Date Stamp Options (Tab Delimited)
        • Easily Import into Microsoft Excel
      • Settings Retrieval
        • All User Settings May Be Saved to a File for Later Use
        • Selectable Auto-Load of Specified Settings File
      • Math Formulas Per Channel:
        • Yes
        • Supports the Following Math Functions: +, -, *, /, ( ), sin, cos, tan, ^, ln, sqr, exp
      • Real-Time Display:
        • Yes, Selectable Graphing Options
    • Graph Specifications:
      • Display:
        • Time vs. Y
        • Multiple Channels per Graph
        • Digital Readout of Each Channel
        • Strip-Chart Mode
        • User Selectable Graph Type (Line, Bar, Pie, etc.)
      • X-Axis:
        • Samples, Seconds, Minutes, Hours, Days
        • Supports Auto-Scaling
      • Y-Axis:
        • User-Defineable
        • Supports Auto-Scaling
      • Graph Functions:
        • Print Graph Image
        • Save Graph Image
        • Zoom Graph Image
        • Copy Graph Image to Clipboard
      • Trigger Type:
        • Software Push Button
