Complete RS-232 8 Channel Thermocouple/Volts/mV/mA 16-bit Analog Input DAQ System: Accepts Thermocouple Types: J,K,T,E,R,S,B,N,C and Input Ranges: ±15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V, ±20mA - Includes WINview CP Plus 2012: Ready-to-Run Collection,...

Complete RS-232 8 Channel Thermocouple/Volts/mV/mA 16-bit Analog Input DAQ System: Accepts Thermocouple Types: J,K,T,E,R,S,B,N,C and Input Ranges: ±15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V, ±20mA - Includes WINview CP Plus 2012: Ready-to-Run Collection,...
  • 8518
  • Complete RS-232 Data Acquisition System
  • 8 Thermocouple, mV, Voltage or mA Inputs (expandable)
  • Accepts +/-500mV, +/-1V, +/-5V, +/-10V, +/-20mA,0~20mA, 4~20mA (Jumper Selectable)
  • Accepts Thermocouples Directly, as well as mV, V & mA inputs
  • Accepts Thermocouple types J, K, T, E, R, S, B, N, C
  • 16-Bit Resolution A/D Converter
  • Ready-to-Run System Includes:
    • 8520 for direct RS-232

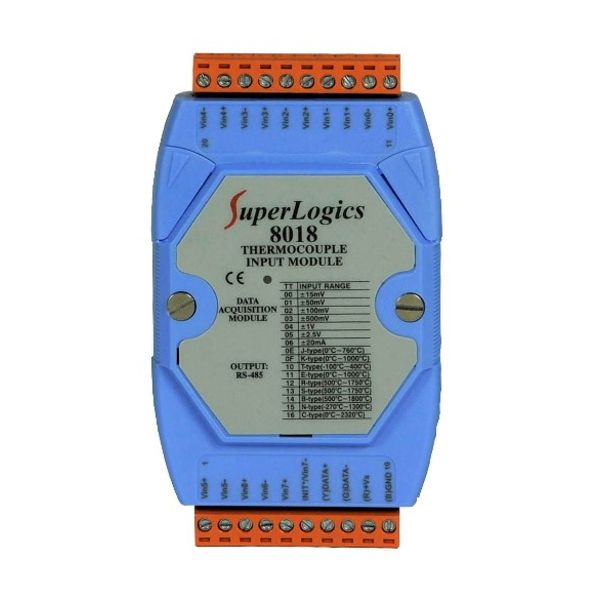

    • 8018 (prewired)
    • RS-232 Cable
    • Power Supply
    • WINview CP Plus 2012 Ready-to-Run Software - Supports Analog Inputs Only
    • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
    • WINview CP 2012 is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems
  • Includes CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP 2012, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista and Windows 7 32-bit and 64-bit Operating Systems
Related Products
Technical Specifications

Hardware Specifications:

  • Analog Input:
    • Input Channels: 8 differential or 6 differential and 2 single-ended by jumper select
    • Input type : +/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V, +/-20mA (requires optional external 125 ohm resistor), Thermocouple)
    • Thermocouple Type: J, K, T, E, R, S, B, N, C
    • Resolution: 16 bit
    • Sampling Rate of Module: 10 Samples/1 Second
    • Accuracy: ±0.1%
    • Bandwidth: 15.7Hz
    • Zero Drift: 0.5uV/°C
    • Span Drift: ±25ppm/°C
    • Common Mode Rejection @50/60Hz: 150dB min
    • Normal Mode Rejection @ 50/60Hz: 100dB
    • Input Impedance: Voltage: 20M Ohms
    • Over Voltage Protection: +/- 35V
    • Open Thermocouple Detection: No
    • Photo Isolation: 3750 Vrms
    • Intra-Module Isolation: 3000VDC
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption: 1.0W
  • Environment:
      • Operating Temperature: -13 to 167°F (-25 to 75°C)
      • Storage Temperature: -40 to 185°F (-40 to 85°C)
      • Humidity: 5 to 95% RH, non-condensing

    Thermocouple Type

    Type Range°C
    J -210 ~ +760
    K -270 ~ +1372
    T -270 ~ +400
    E -270 ~ +1000
    R 0 ~ +1768
    S 0 ~ +1768
    B 0 ~ +1820
    N -270 ~ 1300
    C 0 ~ 2320

    Software Specifications:

      • Hardware Requirements:
        • One 8000 Series Analog Input Module Connected via USB or RS232
        • 512MB RAM
        • 6MB Hard Disk Space (For WINview CP 2012 Only - Additional Space Required for Data Storage and/or .NET Framework)
      • Software Requirements
        • Windows XP (Service Pack 3), Windows Vista or Windows 7 (32-bit or 64-bit)
        • Microsoft .NET Framework Version 4.0 or Higher
        • 1024 x 768 Resolution or Higher
        • Requires Administrator User Privileges
      • General Software Specifications:
        • Maximum Number of Inputs:
          • Number and Type of Channels Determined by Module Used
        • Supported Signal Types:
          • All Analog Input Types:
            • Volts, mV, mA, Thermocouple, RTD, Strain Gauge, etc.
        • Ease of Use:
          • Very Easy, No Learning Curve, No Programming, No Manual Needed
        • Speed of Acquisition:
          • Maximum: 10 Hz (May be Limited by Hardware)
          • Minimum: None
        • Duration of Acquisition:
          • Finite (Specify Number of Points to Collect)
          • Continuous (Collects Until Stopped by User)
        • Data Storage:
          • Stream Data to Disk as ASCII Text (Tab Delimited)
          • Stream Data to Disk as ASCII Text with Time/Date Stamp Options (Tab Delimited)
          • Easily Import into Microsoft Excel
        • Settings Retrieval
          • All User Settings May Be Saved to a File for Later Use
          • Selectable Auto-Load of Specified Settings File
        • Math Formulas Per Channel:
          • Yes
          • Supports the Following Math Functions: +, -, *, /, ( ), sin, cos, tan, ^, ln, sqr, exp
        • Real-Time Display:
          • Yes, Selectable Graphing Options
      • Graph Specifications:
        • Display:
          • Time vs. Y
          • Multiple Channels per Graph
          • Digital Readout of Each Channel
          • Strip-Chart Mode
          • User Selectable Graph Type (Line, Bar, Pie, etc.)
        • X-Axis:
          • Samples, Seconds, Minutes, Hours, Days
          • Supports Auto-Scaling
        • Y-Axis:
          • User-Defineable
          • Supports Auto-Scaling
        • Graph Functions:
          • Print Graph Image
          • Save Graph Image
          • Zoom Graph Image
          • Copy Graph Image to Clipboard
        • Trigger Type:
          • Software Push Button
