CP8219R

Complete RS-232 8 Channel Thermocouple/Volts/mV/mA 16-bit Analog Input DAQ System: Accepts Thermocouple Types: J, K, T, E, R, S, B, N, C, L, M, L2 and Input Ranges: ±15mV, ±50mV, ±100mV, ±150mV, ±500mV, ±1V, ±2.5V, ±5V, ±10V, ±20mA; Supports Open Ther...

  • Complete RS-232 Data Acquisition System
  • 8 differential inputs - Expandable
  • Voltage accepts ±15mV, ±50mV, ±100mV, ±150mV, ±500mV, ±1V, ±2.5V, ±5V, ±10V, ±20mA (Jumper Selectable)
  • Thermocouple accepts Type J, K, T, E, R, S, B, N, C, L, M, L2
  • 16-bit Resolution
  • 8 samples/second Sampling Rate (Total)
  • Individual Channel Configurable
  • Wire Opening Detection for Thermocouple
  • Overvoltage Voltage Protection of +/-240Vrms
  • Expandable with Optional 8000 Series Modules
  • Ready-to-Run System Includes:
    • 8520 for direct RS-232

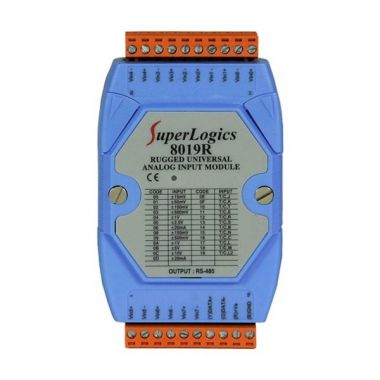

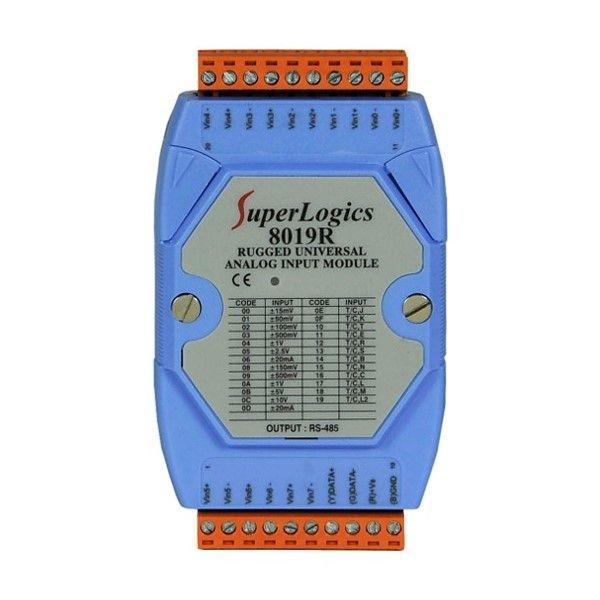

    • 8019R (prewired)
    • RS-232 Cable
    • Power Supply
    • 30 day trial of WINview CP 2012 Ready-to-Run Software
    • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
    • WINview is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems

Analog Input

  • Type: mV, V, mA (with external 125 ohms resistor)
  • Thermocouple: Type J, K, T, E, R, S, B, N, C
  • Channels : 8 differential or 6 differential and 2 single-ended by jumper select
  • Voltage Range: +/- 15mV, +/- 50mV, +/- 100mV, +/- 150mV, +/- 500mV, +/- 1V, +/- 2.5V, +/- 5V, +/- 10V
  • Current range: ± 20mA (Jumper Selectable)
  • Max. Sampling rate of Module: 8 Samples/Second
  • Max. Sampling rate of WINview CP Plus with Module: 3 Samples/Second (0.33 seconds between samples)
  • Max. Sampling rate of WINview CP 32 with Module: 8 Samples/Second if acquiring all channels on module, 3 Samples/Second (0.33 seconds between samples) if acquiring one channel only
  • -3dB BandWidth: 5.24Hz
  • Accuracy: +/-0.15%
  • Overvoltage Voltage Protection: +/-240Vrms
  • Zero drift: ± 25uV/°C
  • CMR @ 50/60 Hz: 150 dB
  • NMR @ 50/60 Hz: 100 dB
  • Span drift: 25ppm/°C
  • Over voltage protection: ± 35V
  • Isolation: 3000V DC

Power Supply

  • Input: 10~30V DC
  • Consumption: 1.0W

Physical & Environmental

  • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • Operating Temperature: -13 to 167°F (-25 to 75°C)
  • Storage Temperature: -40 to 176°F (-40 to 80°C)
  • Dimensions: 4.8 x 2.8 x 1.3 in (12.3 x 7.2 x 3.3 cm)
