SL-PPC-17A-LL1900A-S19-1

17" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen and IP65 / NEMA4 Rated Front Panel; Long Production Cycle Motherboard (Through Q4 2020) with Intel ATOM/Celeron SoC, Intel Celeron J1900 Processor (Quad Core, 2.0GHz), 2x GB (10/100/1000) LAN, HDD or SSD, 5x Serial, Up to 8GB RAM, 6x USB 2.0, 4x USB 3.0, 1x Expansion Slots, 1280 x 1024 resolution, 60W Power Adapter Included

17
  • Front Angle
  • Front
  • Back

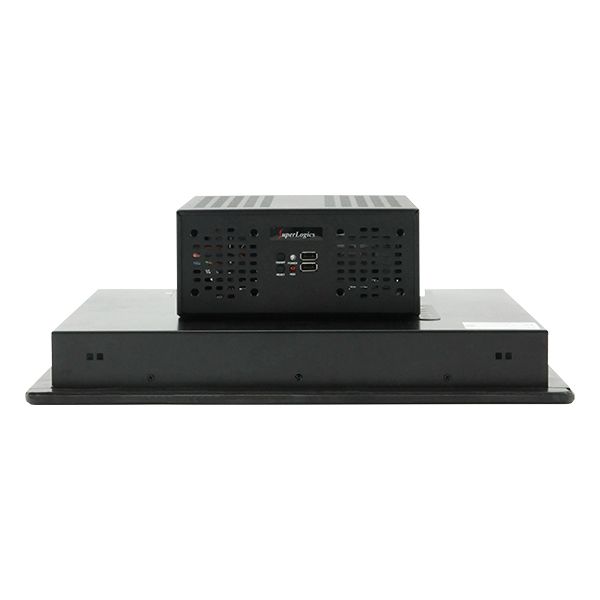

  • Top

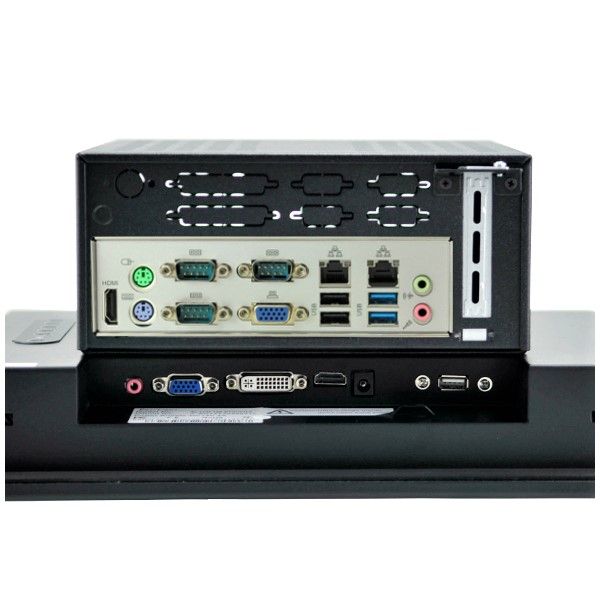

  • IO View
  • I/O
  • Dimensions
  • Cutout Dimensions
  • Wallmount Instructions
  • Included Accessories

Type:

  • Fanless Panel PC
  • Screen:
    • 17" 5-Wire Resistive, Native Resolution: 1280 x 1024, Front Panel Rating: IP65 / NEMA4
  • Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out

Motherboard:

  • Featuring Intel ATOM/Celeron SoC and Intel Celeron J1900 Processor (Quad Core, 2.0GHz)
  • Long Production Cycle Motherboard (Through Q4 2020)
  • Low Profile Slots:
    1 - PCIe x1
  • LAN: 2x GB (10/100/1000)
  • Video: VGA + HDMI
  • Audio: Intel® HD Audio
  • Ports:
    6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 via internal headers )
    4x USB 3.0 Ports ( 2 Rear, 2 via internal headers )
    5x COM Ports (2 on Headers, 3 RS232/422/485 Rear)
    1x Parallel Port (Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Memory: 4GB DDR3 1333MHz SODIMM RAM - Upgradeable
  • Hard Drive: 64GB SSD mSATA 6Gb/s - TS MSA370 - Upgradeable
  • Power Supply: 60W Power Adapter Included
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Expedite
Display/TouchScreen
Memory
CD/DVD/OpticalDrive
Hard Drive
Additional Hard Drives
Cable
Plug-In Boards
Networking
Internal Speaker
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Keyboard/Mouse
External Power

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Fanless
  • Long Production Cycle
  • Long Life:YES
  • EOL Date:Q4 2020
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron J1900 Processor (Quad Core, 2.0GHz)
  • Chipset
  • Chipset: Intel ATOM/Celeron SoC
  • Memory
  • Memory Type: SO DIMM DDR3 1333MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 8GB
  • On Board Audio
  • Audio Type: Intel® HD Audio
  • On Board Video
  • Video Chipset: Intel® 7th generation (Gen 7) Graphics
  • Video on IO: VGA + HDMI
  • VGA Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 2
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Realtek® RTL8111G
  • Second LAN Chipset: Realtek® RTL8111G
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 2
  • Expansion Slots
  • PCI Express x1 Slots On Motherboard: 1
  • mini PCIe
  • mSATA
  • half and/or full size mini PCIe card: full size
  • Second mini PCIe
  • USB and PCIe signals
  • half and/or full size mini PCIe card: half size
  • Rear IO
  • PS/2 Mouse on IO
  • PS/2 Keyboard on IO
  • USB 2.0 Ports (on IO): 2
  • USB 3.0 Ports (on IO): 2
  • Serial 232/422/485 Ports: 3
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 3.0 Ports (on Headers): 2
  • Serial (via Headers): 2
  • Parallel Ports: 1
  • FAN Connectors: 2
  • Digital I/O (8 Bit) On Headers
  • Audio on Headers
  • LVDS
  • Management Features
  • Watch Dog
  • Environmental
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • Windows 7 Ultimate (64-bit)
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (32 Bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (32 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Entry 32-bit
  • Windows 10 IoT Ent-Entry
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    1x PCE Express 2.0 x1 Slot

  • Motherboard Warranty: 1 Year

Display Specifications

  • Display
  • Screen Size: 17"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Color: Black
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 250
  • Display Area (H): 337mm
  • Display Area (V): 270mm
  • Aspect Ratio: 4:3
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • Mounting Options
  • Bezel Mounting Hardware Included
  • Suitable for Mounting in Cut-Out
  • Suggested Cut-Out Dimension (Width): 401mm
  • Suggested Cut-Out Dimension (Height): 315mm
  • Physical
  • Width: 440mm
  • Height: 354mm
  • Depth: 56mm
  • Depth (Inches): 2.2
  • Shipping Weight: 35lbs
  • Environmental
  • MTBF: 30000hours
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temperature: 0ºC to 60ºC (32ºF to 140ºF)
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 13Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Features:

    Industrial Display

    • Screen Size: 17"
    • Touch Type: 5-Wire Resistive
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 1280 x 1024
    • Brightness (nits): 250
  • Warranty: 1 year

Chassis Specifications:

  • General
  • Form Factor: Embedded PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Expansion
  • Low Profile Slots: 1
  • Max Card Depth: 7.5""
  • Internal 2.5" Bays: 2
  • Serial Port Punchouts: 4
  • Parallel Port Punchouts: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Physical
  • Depth: 8"
  • Depth (Inches): 8
  • Width: 8.30"
  • Height: 3.50"
  • Shipping Box - Depth: 150mm
  • Shipping Box - Width: 380mm
  • Shipping Box - Height: 27mm
  • Shipping Weight: 13lbs
  • Compliance of Component
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
  • Related Products Default Upgrade Groups
  • Built-in Chassis Power Supply: 60W Power Adapter Included
