SL-PPC-19AW-LL1900A-S17
19" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen Long Production Cycle Motherboard (Through Q1 2028) with Intel Celeron SoC, Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W, 2x GB (10/100/1000) LAN, 5x Serial, Up to 8GB RAM, 6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers ), 1366 x 768 resolution, Power Supply AC/DC Power Adapter Included.
Type:
- Fanless Panel PC
- Screen:
- 19" 5-Wire Resistive, Native Resolution: 1366 x 768, Front Panel Rating: IP65 / NEMA4
- Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out
Motherboard:
- Featuring Intel Celeron SoC and Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
- Long Production Cycle Motherboard (Through Q1 2028)
- No Available Slots
- LAN: 2x Ports (GB (10/100/1000))
- Video: VGA + HDMI
- Audio: Intel® HD Audio

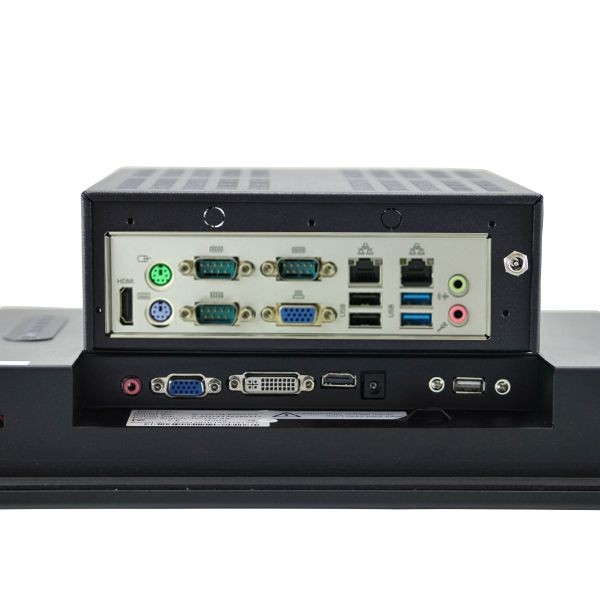

- Ports:
6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers )
5x COM Ports (2 RS232 Internal Headers, 3 RS232/422/485 Rear)
1x Parallel Port (Headers)
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
- Hard Drive: 256GB mSATA SSD SATA 6.0Gb/s, 550/500MB/s read/write (or greater)
- Power Supply: AC/DC Power Adapter Included
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
Display Specifications
- Display
- Screen Size (inches): 19
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 16:9
- Native Display Resolution: 1366 x 768
- Brightness (nits): 250
- Screen Refresh Rate: 60Hz
- Display Area (H): 409.80mm
- Display Area (V): 230.40mm
- Aspect Ratio: 16:9
- DisplayColors: 16.7 M
- Contrast Ratio: 1000:1
- Backlight: LED
- Viewing Angle(U) : 80
- Viewing Angle(D) : 80
- Viewing Angle(L) : 85
- Viewing Angle(R) : 85
- Connectivity
- VGA Port In: 1
- DVI-I In: 1
- HDMI In: 1
- Touchscreen Interface USB Port (Front): 1
- Mounting Options
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
- Suggested Cut-Out Dimension (Width):
- Suggested Cut-Out Dimension (Height):
- Physical
- Width:
- Height:
- Depth:
- Depth (Inches): Click Available Downloads Tab > Mechanical Drawings.
- Unboxed Weight: 14lbs
- Shipping Weight: 40lbs
- Environmental
- MTBF: 30000hours
- Maximum Operating Temperature: 50C
- High Humidity: 90%
- Low Humidity: 8%
- Storage Temp (High): 60C
- Storage Temp (Low): -10C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 8%
- Power
- Power Supply: AC 100~240V/12V DC
- Power Consumption (on): 12Watts
- Warranty
- Warranty: 1 year
- Other
- Features:
Industrial Display
- Screen Size: 18.5"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Native Display Resolution: 1366 x 768
- Brightness (nits): 250
