SL-1U-GH510M-LA This item is no longer available.

A newer version of this item is available: SL-1U-AB660M-LA

1U Rack Mount Industrial PC - Rackmount featuring Intel H510 Chipset, 10th/11th Gen Core i7/i5/i3 (LGA1200), 1x GB (10/100/1000) LAN, 1x Serial, Up to 64GB RAM, 8x USB 2.0 Ports ( 4 Rear, 4 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers ), Power Supply 200W ATX12V Power Supply.



Type:

  • 1U Rack Mount Industrial PC
  • Depth: 14", Max Card Depth: 8"

Motherboard:

  • Featuring Intel H510 Chipset and 10th/11th Gen Core i7/i5/i3 (LGA1200) processor
  • LAN: 1x Ports (GB (10/100/1000))
  • Video: HDMI + DisplayPort + VGA + DVI-D
  • Audio: Realtek® Audio CODEC
  • Ports:
    8x USB 2.0 Ports ( 4 Rear, 4 Internal Headers )
    4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers )
    1x COM Port (RS232 Internal Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
  • Memory: 8GB DDR4 3200MHz RAM
  • Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
  • Power Supply: 200W ATX12V Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MicroATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 10th/11th Gen Core i7/i5/i3 (LGA1200)
  • Chipset
  • Chipset: Intel H510 Chipset
  • Memory
  • Memory Type: DDR4 2666MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 64GB
  • On Board Audio
  • Audio Type: Realtek® Audio CODEC
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: HDMI + DisplayPort + VGA + DVI-D
  • VGA Port Out: 1
  • DVI-D Out: 1
  • Display Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Realtek® RTL8118
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 4
  • M.2 Slot Specs
  • Total M.2 NVMe SSD Slots: 1
  • M.2 Slot #1 Specs
  • M.2 SATA SSD
  • PCIe Signal
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.

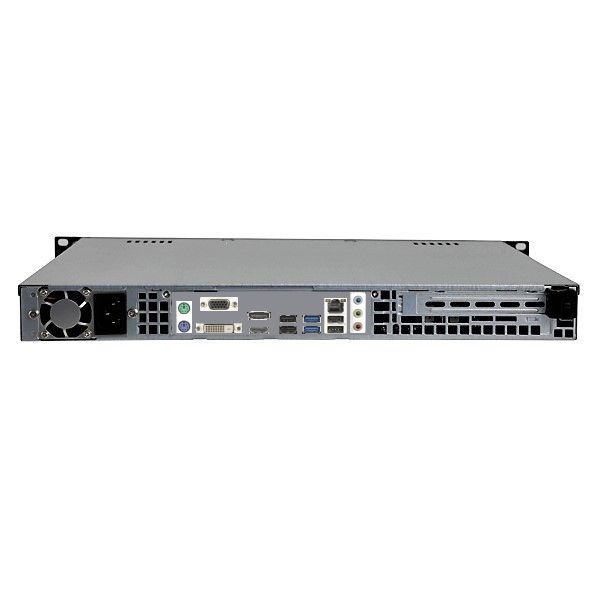

  • Rear IO
  • PS/2 Mouse on IO
  • PS/2 Keyboard on IO
  • USB 2.0 Ports (on IO): 4
  • USB 3.2 Gen 1 Type A Ports (on IO): 2
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 3.2 Gen 1 Ports (on Headers): 2
  • Serial (via Headers): 1
  • FAN Connectors: 3
  • Audio on Headers
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • Windows 11 Home (64 Bit)
  • Windows 11 Pro (64 Bit)
  • Windows 11 Pro for WS (64 Bit)
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    Expansion Slots

    1 x PCI Express x16 slot, running at x16
    (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)

    PCIe Gen 4 supported by Intel 11th Gen only.


    2 x PCI Express x1 slots
    (The PCI Express x1 slots conform to PCI Express 3.0 standard.)

    The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1
    slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only.

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 1U Rackmount
  • Color: Black & Silver
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 8"
  • Internal 3.5" Bays: 2
  • Cooling System
  • Maximum Fan Count: 1
  • Included Fans: 1
  • Physical
  • Depth: 14"
  • Depth (Inches): 14
  • Width: 16.80"
  • Height: 1.75"
  • Shipping Box - Depth: 22"
  • Shipping Box - Width: 21"
  • Shipping Box - Height: 7"
  • Shipping Weight: 13lbs
  • Compliance of Component
  • CE
  • FCC
  • CCC
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Built-in Chassis Power Supply: 200W ATX12V Power Supply
