SL-2U-B460MC-GD This item is no longer available.

A newer version of this item is available: SL-2U-B560M-GD

2U Rack Mount Industrial PC - Rackmount featuring Intel B460 Chipset, 10th Gen Core i7/i5/i3 (LGA1200), 1x GB (10/100/1000) LAN, 2x Serial, Up to 128GB RAM, 6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 4 Rear ), 2x USB 3.2 Gen 2 Ports ( 2 Internal Headers ), 4x Expansion Slots.



Type:

  • 2U Rack Mount Industrial PC
  • Depth: 15.35", Max Card Depth: 9.00"

Motherboard:

  • Featuring Intel B460 Chipset and 10th Gen Core i7/i5/i3 (LGA1200) processor
  • Low Profile Slots:
    1 - PCIe x16
    2 - PCIe x1
    1 - PCI
  • LAN: 1x Ports (GB (10/100/1000))
  • RAID: 0,1,5,10
  • Video: VGA + DisplayPort + HDMI
  • Audio: 8-Channel HD Audio by Realtek® ALC887
  • Ports:
    6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers )
    4x USB 3.2 Gen 1 Ports ( 4 Rear )
    2x USB 3.2 Gen 2 Ports ( 2 Internal Headers )
    2x COM Ports (RS232 Internal Headers)
    1x Parallel Port (Headers)
    See specifications for more ports
  • Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF)

Also Included:

  • Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
  • Memory: 8GB DDR4 3200MHz RAM
  • Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
  • Power Supply: 400W Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MicroATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 10th Gen Core i7/i5/i3 (LGA1200)
  • Chipset
  • Chipset: Intel B460 Chipset
  • Memory
  • Memory Type: DDR4 2666MHz
  • Memory Type: Non-ECC
  • DIMMS: 4
  • Maximum Memory: 128GB
  • On Board Audio
  • Audio Type: 8-Channel HD Audio by Realtek® ALC887
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA + DisplayPort + HDMI
  • VGA Port Out: 1
  • Display Port Out: 2
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i219V
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 6
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1
  • PCI Express x1 Slots On Motherboard: 2
  • PCI Slots (Conventional 32-Bit): 1
  • M.2 Slot Specs
  • Total M.2 NVMe SSD Slots: 2
  • M.2 Slot #1 Specs
  • M.2 SATA SSD
  • PCIe Signal
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.
  • M.2 Slot #2 Specs
  • PCIe Signal
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.

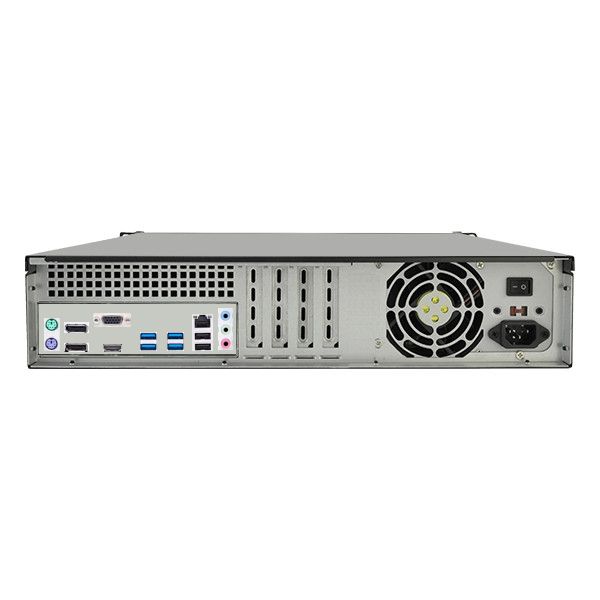

  • Rear IO
  • PS/2 Mouse on IO
  • PS/2 Keyboard on IO
  • USB 2.0 Ports (on IO): 2
  • USB 3.2 Gen 1 Type A Ports (on IO): 4
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 3.2 Gen 2 Ports (on Headers): 2
  • Serial (via Headers): 2
  • Parallel Ports: 1
  • FAN Connectors: 3
  • Audio on Headers
  • Chassis Intrusion
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF )
  • High Humidity: 95%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • Compliance of Component
  • CE
  • FCC
  • Other Features
  • Features:

    Note:

    *1 When a device in SATA mode is installed on the M.2_1 socket, SATA6G_1 port cannot be used.
    *2 Only the M.2_2 supports IRST.
    *3 A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.



    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 2U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Micro ATX
  • Slide Rails: Optional
  • Expansion
  • Low Profile Slots: 4
  • Max Card Depth: 9.00"
  • External 5.25" Bays: 1
  • Internal 3.5" Bays: 4
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Included Fans: 1
  • Physical
  • Depth: 15.35"
  • Depth (Inches): 15.35
  • Width: 19"
  • Height: 3.50"
  • Shipping Box - Depth: 22"
  • Shipping Box - Width: 21"
  • Shipping Box - Height: 7"
  • Shipping Weight: 25lbs
  • Other Features
  • Chassis Warranty: 1 Year
