SL-4U-X99EX4-WB

A newer version of this item is available: SL-4U-X299K-WB

4U Rack Mount Industrial PC - Rackmount featuring Intel X99 Chipset, 4th Gen Core i7 Extreme (LGA2011v3, 'Haswell E'), 1x GB (10/100/1000) LAN, HDD or SSD, 1x Serial, Up to 128GB RAM, 8x USB 2.0, 6x USB 3.0, 5x Expansion Slots, 1200W ATX12V / EPS12V Modular Active PFC Power Supply - 80+ Gold Certified

4U Rack Mount Industrial PC - Rackmount featuring Intel X99 Chipset, 4th Gen Core i7 Extreme (LGA2011v3, 'Haswell E'), 1x GB (10/100/1000) LAN, HDD or SSD, 1x Serial, Up to 128GB RAM, 8x USB 2.0, 6x USB 3.0, 5x Expansion Slots
  • Angle
  • Front
  • I/O
  • TOP

Type:

  • 4U Rack Mount Industrial PC
  • Depth: 17.50", Max Card Depth: 12.28 inches", Locking Front Bezel

Motherboard:

  • Featuring Intel X99 Chipset and 4th Gen Core i7 Extreme (LGA2011v3, 'Haswell E') processor
  • Full Height Slots:
    2 - PCIe x16
    1 - PCIe x8
    1 - PCIe x4
    1 - PCIe x1
  • LAN: 1x GB (10/100/1000)
  • RAID: 0,1,5,10
  • Video: N/A
  • Audio: Realtek® ALC1150
  • Ports:
    8x USB 2.0 Ports ( 2 Front, 4 Rear, 2 via internal headers )
    6x USB 3.0 Ports ( 4 Rear, 2 via internal headers )
    1x COM Port (Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Processor: i7-6800K - 3.80GHz Six-Core Intel Core Processor - 15MB Cache (140W) - Upgradeable
  • Memory: 2 x  4GB DDR4 2400MHz RAM - Upgradeable
  • Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue - Upgradeable
  • Power Supply: 1200W ATX12V / EPS12V Modular Active PFC Power Supply - 80+ Gold Certified - Upgradeable
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Expedite
Processor
Liquid Cooler/Fan (Optional)
Memory
CD/DVD/OpticalDrive
Hard Drive
Additional Hard Drives
Raid Controller
Cable
Plug-In Boards
Add-In Graphic Card
Networking
Power Supply
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Add-On
Monitors
Keyboard/Mouse
External Power
Mounting Option

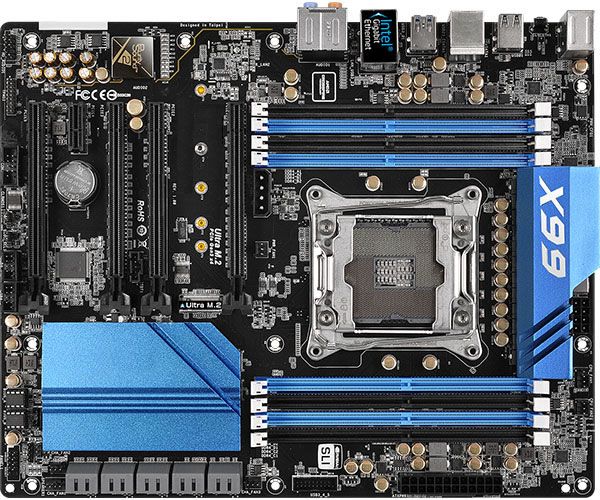

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 4th Gen Core i7 Extreme (LGA2011v3, 'Haswell E')
  • Chipset
  • Chipset: Intel X99 Chipset
  • Memory
  • Memory Type: DDR4 2133MHz
  • Memory Type: Non-ECC
  • DIMMS: 8
  • Maximum Memory: 128GB
  • On Board Audio
  • Audio Type: Realtek® ALC1150
  • On Board Video
  • Video Chipset: None
  • Video on IO: N/A
  • LAN
  • LAN Ports: 1
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Intel® i218V
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 10
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 2
  • PCI Express x8 Slots On Motherboard: 1
  • PCI Express x4 Slots On Motherboard: 1
  • PCI Express x1 Slots On Motherboard: 1
  • mini PCIe
  • M.2
  • M.2 NVMe: 1
  • M.2
  • SATA
  • PCIe
  • Rear IO
  • PS/2 Mouse on IO
  • PS/2 Keyboard on IO
  • USB 2.0 Ports (on IO): 4
  • USB 3.0 Ports (on IO): 4
  • SPDIF Connector: 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 3.0 Ports (on Headers): 2
  • Serial (via Headers): 1
  • Thunderbolt: 1
  • eSATA Ports: 1
  • FAN Connectors: 6
  • TPM Support: Via 2.0 Header
  • Environmental
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent
  • Windows Server 2012
  • RED HAT Enterprise LINUX SERVER STANDARD
  • LINUX Ubuntu Desktop
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    - 3 x PCI Express 3.0 x16 Slots (PCIE1 @ x16 mode; PCIE3 @ x16 mode; PCIE5 @ x8 mode)*
    - 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x4 mode)
    - 1 x PCI Express 2.0 x1 Slot
    - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
    - Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™***
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)

    *If you install CPU with 28 lanes, PCIE1/PCIE3/PCIE5 will run at x16/x8/x4.

    **If M.2 PCI Express module is installed, PCIE5 slot will be disabled.

    ***If you install CPU with 28 lanes, 3-Way SLI™ is not supported.

    ****To support 3-Way SLI™, please install the CPU with 40 lanes.


    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

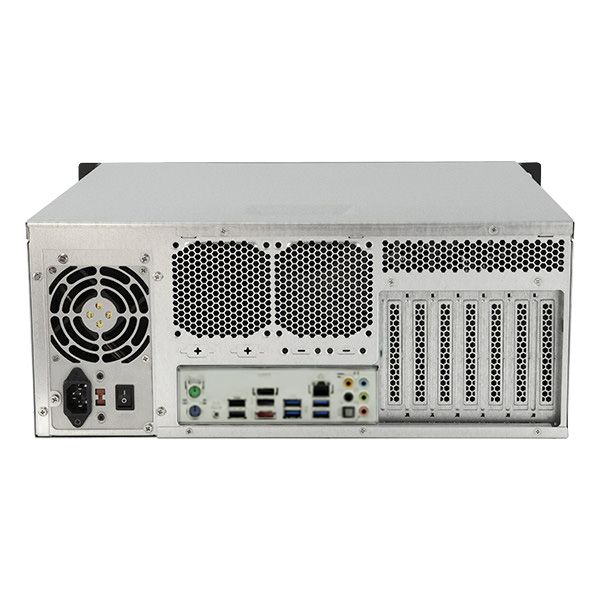

Chassis Specifications:

  • General
  • Form Factor: 4U Rackmount
  • Locking Bezel: 1
  • Front Changeable Air Filter
  • Color: Black & Silver
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Redundant Power Supply Capable
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 7
  • Max Card Depth: 12.28 inches"
  • External 5.25" Bays: 3
  • Internal 3.5" Bays: 4
  • External 3.5" Bays: 2
  • Serial Port Punchouts: 2
  • Slim CDBay: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 3
  • Included Fans: 1
  • Physical
  • Depth: 17.50"
  • Depth (Inches): 17.5
  • Width: 16.90"
  • Height: 7"
  • Shipping Box - Depth: 23"
  • Shipping Box - Width: 22"
  • Shipping Box - Height: 12"
  • Shipping Weight: 28lbs
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
