SL-1U-MCX-C236SSH-LE

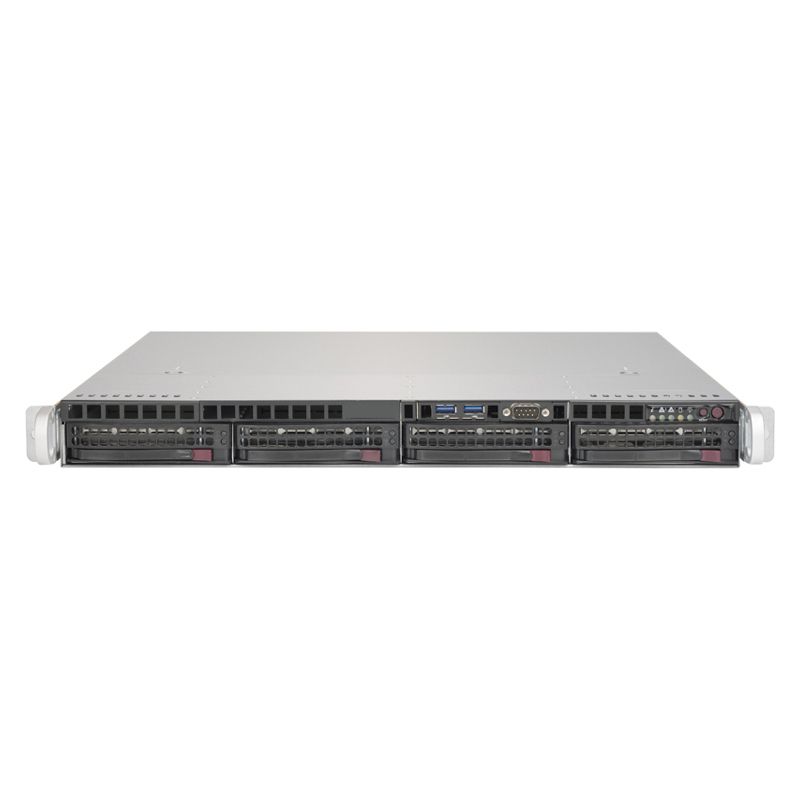

1U Rack Mount Server - Rackmount featuring Intel C236 Chipset, Xeon E3-1200v5/v6 (LGA1151, ‘Skylake, Kaby Lake’), 2x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 64GB RAM, 6x USB 2.0, 4x USB 3.0, 1x Expansion Slots, 350W AC power supply w/ PFC 80+ Platinum

Riser Included

Type:

  • 1U Rack Mount Server
  • Depth: 19.80", Max Card Depth: 8 Inches"

Motherboard:

  • Featuring Intel C236 Chipset and Xeon E3-1200v5/v6 (LGA1151, ‘Skylake, Kaby Lake’) processor
  • Full Height Slots:
    1 - PCIe x16
  • LAN: 2x GB (10/100/1000)
  • RAID: 0,1,5,10
  • Video: VGA
  • Audio: No Onboard Audio
  • Ports:
    6x USB 2.0 Ports ( 2 Rear, 4 via internal headers )
    4x USB 3.0 Ports ( 2 Rear, 2 via internal headers )
    2x COM Ports (1 Rear, 1 on Headers)
    See specifications for more ports
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

  • Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
  • Memory: 4GB DDR4 2400MHz ECC Unbuffered RAM
  • Hard Drive: 1.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series
  • Power Supply: 350W AC power supply w/ PFC 80+ Platinum
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MicroATX
  • Long Production Cycle
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Xeon E3-1200v5/v6 (LGA1151, ‘Skylake, Kaby Lake’)
  • Chipset
  • Chipset: Intel C236 Chipset
  • Memory
  • Memory Type: DDR4 2133MHz ECC
  • Memory Type: ECC Unbuffered
  • DIMMS: 4
  • Maximum Memory: 64GB
  • On Board Audio
  • Audio Type: No Onboard Audio
  • On Board Video
  • Video Chipset: ASPEED AST2400 BMC
  • Video on IO: VGA
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i210AT
  • Second LAN Chipset: Intel® i210AT
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 8
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • mini PCIe
  • M.2
  • M.2 NVMe: 1
  • M.2
  • 80mm

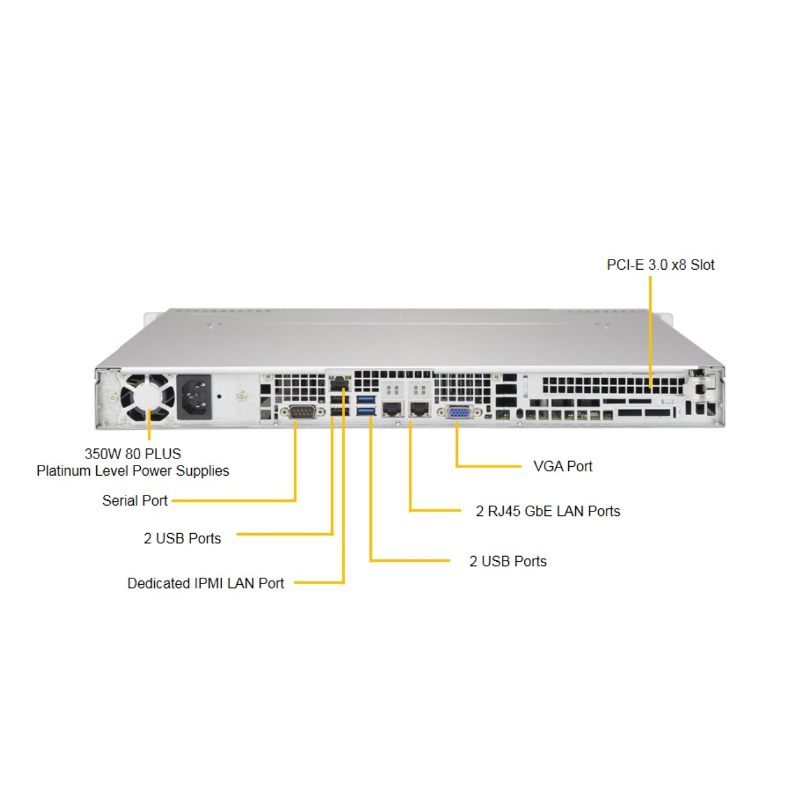

  • Rear IO
  • USB 2.0 Ports (on IO): 2
  • USB 3.0 Ports (on IO): 2
  • Serial (Rear IO): 1
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 3.0 Ports (on Headers): 2
  • Serial (via Headers): 1
  • FAN Connectors: 5
  • Chassis Intrusion
  • Management Features
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
  • High Humidity: 90%
  • Low Humidity: 10%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Value
  • Windows 10 IoT Ent
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • LINUX Ubuntu Desktop
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • Windows Server 2012
  • Windows Server 2016 STD
  • Windows Server 2019 Std
  • VMWare Compatible
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Warranty of Component
  • Motherboard Warranty: 1 Year
  • Other Features
  • Other Features:

    PCI-Express

    • 1 PCI-E 3.0 x8 (in x16) AOC slot
    • 1 M.2 connector

Chassis Specifications:

  • General
  • Form Factor: 1U Rackmount
  • Color: Black & Silver
  • Material: Steel & Plastic
  • Material Thickness: 1mm
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 8 Inches"
  • 2.5" Hot Swap Bays: 10
  • 3.5" Hot Swap Bays: 4
  • Front Ports
  • USB 3.0 Ports (Front): 2
  • Cooling System
  • Maximum Fan Count: 4
  • Included Fans: 4
  • Physical
  • Depth: 19.80"
  • Depth (Inches): 19.8
  • Width: 17.20"
  • Height: 1.70"
  • Shipping Box - Depth: 29.50"
  • Shipping Box - Width: 24"
  • Shipping Box - Height: 8.50"
  • Shipping Weight: 31lbs
  • Power
  • Built-in Chassis Power Supply: 350W AC power supply w/ PFC 80+ Platinum
