SL-1U-LL1900A-GC-1

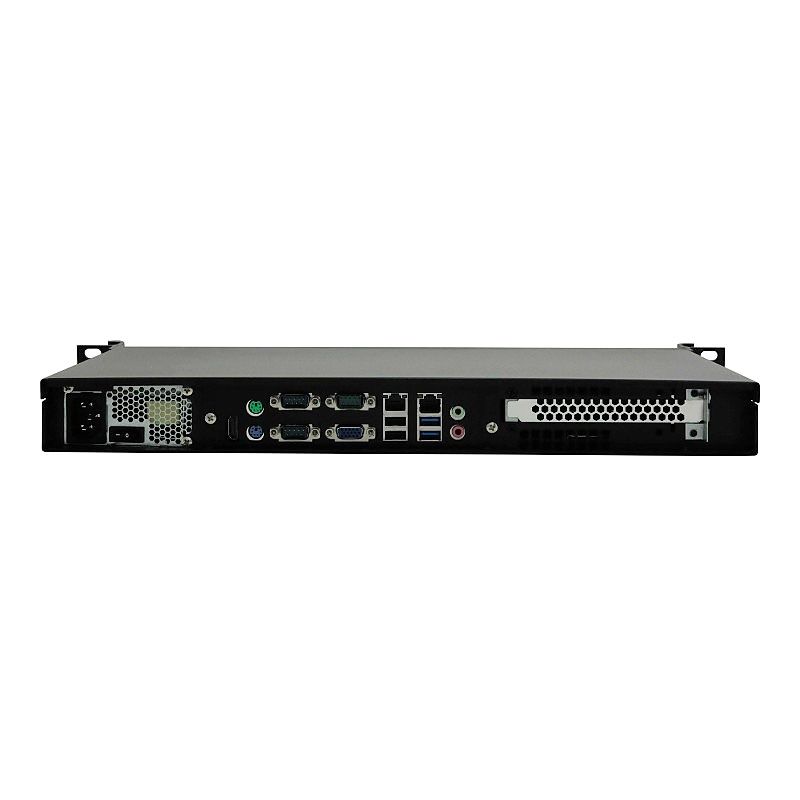

1U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q4 2020) with Intel Celeron SoC, Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W, 2x GB (10/100/1000) LAN, HDD or SSD, 5x Serial, Up to 8GB RAM, 6x USB 2.0, 4x USB 3.0, 150W 1U Flex ATX Power Supply

1U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q4 2020) with Intel ATOM/Celeron SoC, Intel Celeron J1900 Processor (Quad Core, 2.0GHz), 2x GB (10/100/1000) LAN, HDD or SSD, 5x Serial, Up to 8GB RAM, 6x USB ...
  • Angle
  • Front
  • I/O
  • TOP
  • Dimensions

Type:

  • 1U Rack Mount Industrial PC
  • Depth: 11", Max Card Depth: 6.5 inches"

Motherboard:

  • Featuring Intel Celeron SoC and Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
  • Long Production Cycle Motherboard (Through Q4 2020)
  • LAN: 2x GB (10/100/1000)
  • Video: VGA + HDMI
  • Audio: Intel® HD Audio
  • Ports:
    6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 via internal headers )
    4x USB 3.0 Ports ( 2 Rear, 2 via internal headers )
    5x COM Ports (2 on Headers, 3 RS232/422/485 Rear)
    1x Parallel Port (Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

Configure
Technical Specifications
Available Downloads
Expedite
Memory
CD/DVD/OpticalDrive
Hard Drive
Additional Hard Drives
Cable
Riser Card
Plug-In Boards
Networking
Power Supply
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power
Mounting Option

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Fanless
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q4 2020
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
  • Chipset
  • Chipset: Intel Celeron SoC
  • Memory
  • Memory Type: SO DIMM DDR3 1333MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 8GB
  • On Board Audio
  • Audio Type: Intel® HD Audio
  • On Board Video
  • Video Chipset: Intel® 7th generation (Gen 7) Graphics
  • Video on IO: VGA + HDMI
  • VGA Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 2
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Realtek® RTL8111G
  • Second LAN Chipset: Realtek® RTL8111G
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 2
  • mini PCIe
  • mSATA
  • half and/or full size mini PCIe card: full size
  • Second mini PCIe
  • USB and PCIe signals
  • half and/or full size mini PCIe card: half size
  • Rear IO
  • PS/2 Mouse on IO
  • PS/2 Keyboard on IO
  • USB 2.0 Ports (on IO): 2
  • USB 3.0 Ports (on IO): 2
  • Serial 232/422/485 Ports: 3
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 3.0 Ports (on Headers): 2
  • Serial (via Headers): 2
  • Parallel Ports: 1
  • FAN Connectors: 2
  • Digital I/O (8 Bit) On Headers
  • Audio on Headers
  • LVDS
  • Management Features
  • Watch Dog
  • Environmental
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Ent-Entry
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    1x PCE Express 2.0 x1 Slot

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 1U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 6.5 inches"
  • Internal 2.5" Bays: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Included Fans: 2
  • Physical
  • Depth: 11"
  • Depth (Inches): 11
  • Width: 19"
  • Height: 1.75"
  • Shipping Box - Depth: 22"
  • Shipping Box - Width: 15"
  • Shipping Box - Height: 5"
  • Shipping Weight: 15lbs
  • Compliance of Component
  • RoHS
  • Other Features
  • Chassis Warranty: 1 Year
